Jungheinrich EME 112 - Description of the Assemblies and Functions

1001.GB
B 2
2 Description of the assemblies and functions

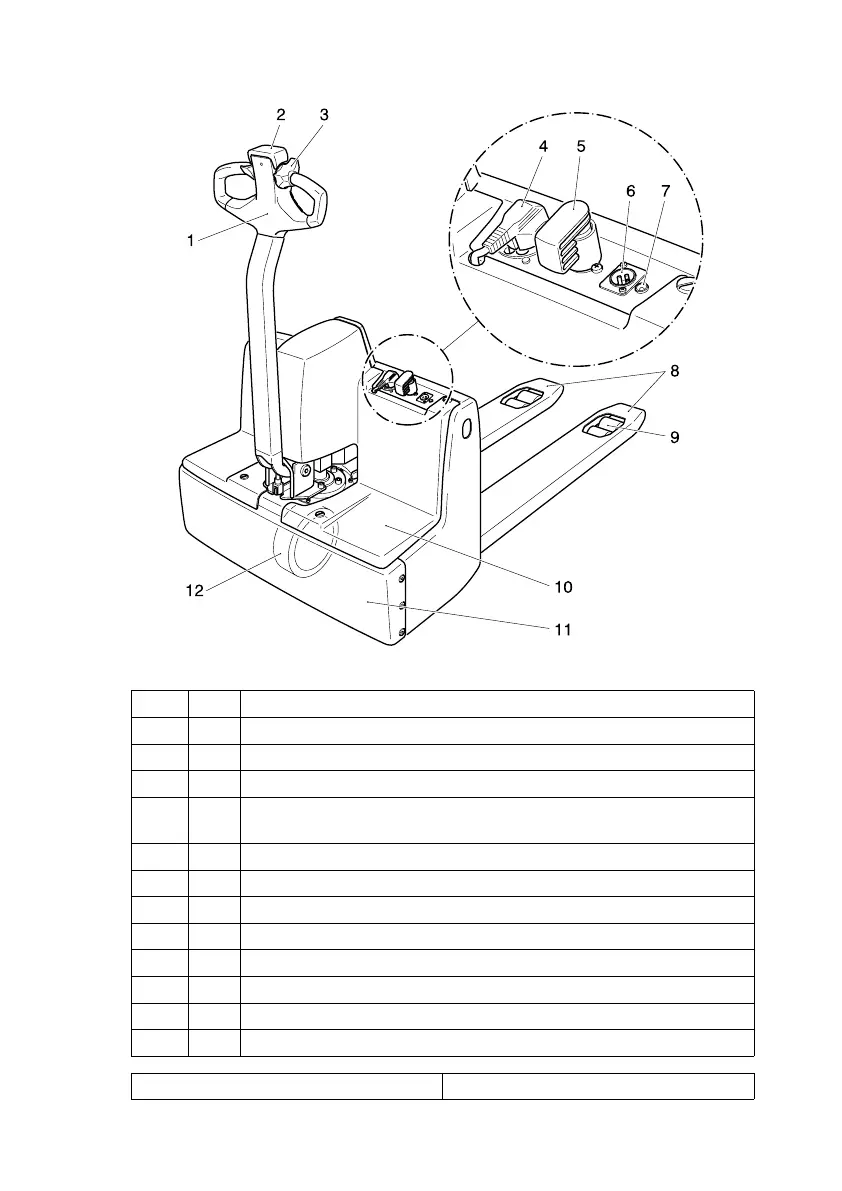

Item Designation
1 t Control shaft
2 t Collision protection button
3 t Controller
4 t Battery charge plug 230 VAC
(integrated battery charger, 24 V / 6,5 A)
5 t Emergency-off switch/ key switch
6 o Battery charge connection 24 VDC (lorry charging)
7 t Discharge control LED (discharge indicator)
8 t Load lifting device
9 t Load-bearing wheel
10 t Front hood
11 t Front wall
12 t Drive wheel
t = Standard equipment o = Optional equipment
