F 5
0708.GB
6 Notes regarding maintenance
6.1 Preparing the truck for maintenance work
All required safety measures must be taken to prevent any accidents in the course of
the servicing and maintenance operations. The following preparatory operations
must be performed:
– Park the truck and render it safe (see chapter E).
– Push the emergency-off button (1).
f
When work has to be performed under the raised fork or under the jacked up truck,
suitable measures must be taken to prevent any dropping, tilting or slipping of the fork
or truck. When lifting the truck, the instructions contained in chapter “Transportation
and commissioning” have to be observed.
When performing work on the parking brake, the truck must be secured against mov-
ing.

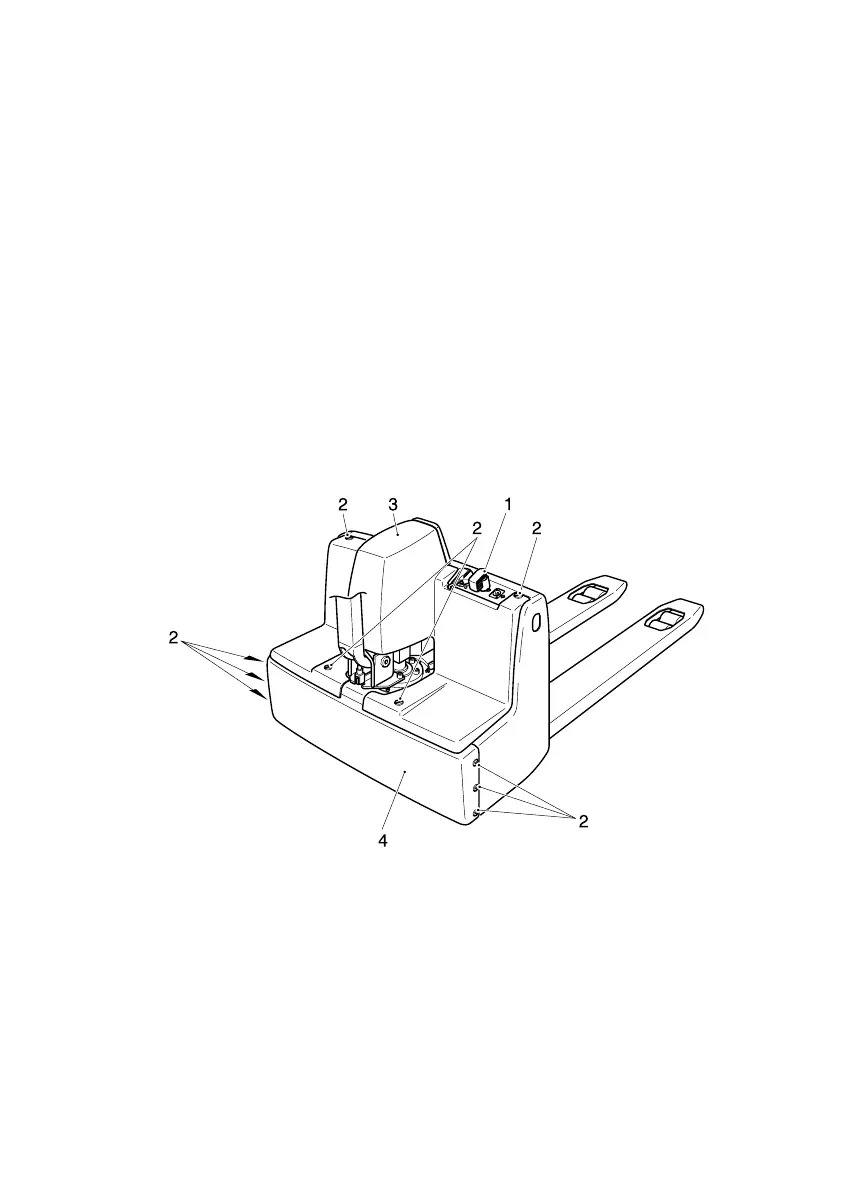

6.2 Removing front hood and front wall
– Losen the fastening screws (2).
– Carefully remove front hood (3) and front wall (4).
F 5
0708.GB
6 Notes regarding maintenance
6.1 Preparing the truck for maintenance work
All required safety measures must be taken to prevent any accidents in the course of
the servicing and maintenance operations. The following preparatory operations
must be performed:
– Park the truck and render it safe (see chapter E).
– Push the emergency-off button (1).
f
When work has to be performed under the raised fork or under the jacked up truck,
suitable measures must be taken to prevent any dropping, tilting or slipping of the fork
or truck. When lifting the truck, the instructions contained in chapter “Transportation
and commissioning” have to be observed.
When performing work on the parking brake, the truck must be secured against mov-
ing.
6.2 Removing front hood and front wall
– Losen the fastening screws (2).
– Carefully remove front hood (3) and front wall (4).
