3.2 Charging battery with 24 VDC (lorry)

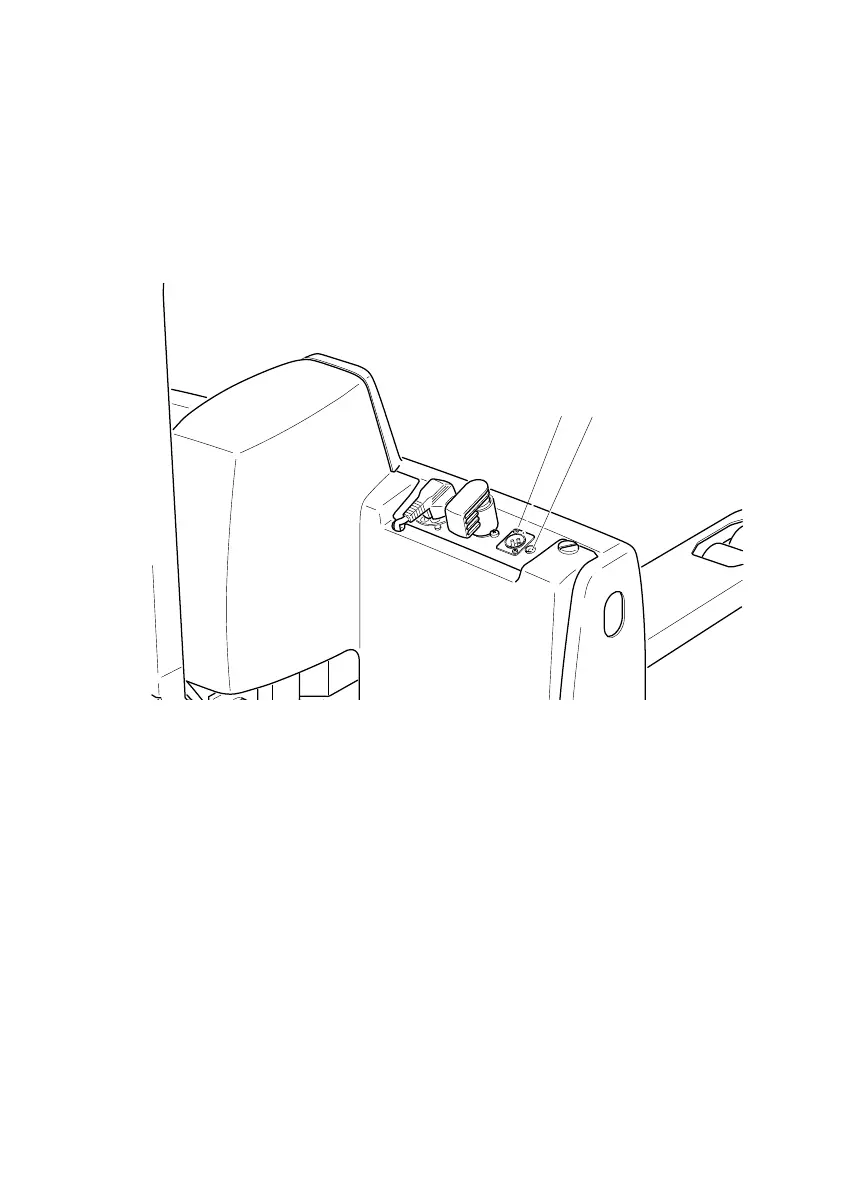

– Connect the charger cable (o) with the 24 VDC connection (4). A green flash-light

of the LED (3) indicates that the battery charger is connected to the mains and the

battery is being charged.

– Charge the battery until LED (3) is steady on (green).

– Disconnect the 24 VDC connection.

During charging, all electrical functions are disconnected (electronic drive inhibit).

In this state, the truck cannot be operated.

Charging times

Depending on the state of discharge, charging the battery can take up to 6 h.

Partial charging

The charger is designed in such a manner that it automatically adapts itself when

charging partially charged batteries. This keeps battery wearing down.

Red flashing of LED (3) means that the battery is defective or the charging circuit has

been interrupted. When operating the charger via the truck supply system the battery

cannot always be fully charged. Recharge (from mains) at least once per week.

If the equalising charge on the truck is performed via mains connection

(115 V / 230 V) the mains connection must be equipped with an FI safety switch!
