4 Replacing the batteries

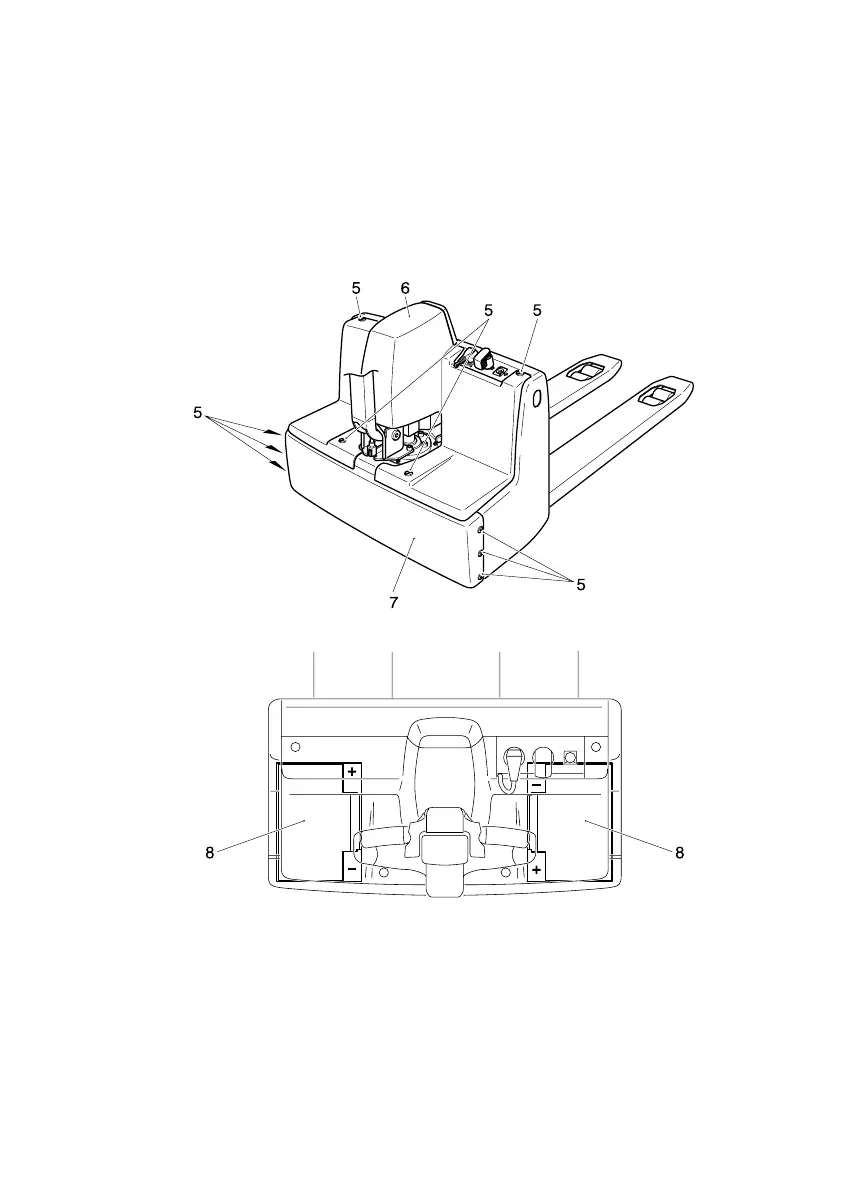

– Loosen screws (5), remove front hood (6) and front wall (7).
– Loosen the terminal screws and remove the battery cables from the terminals.
m
Place the battery cables in such a manner that they do not get caught on the truck
when the battery is pulled out.
– Lift out battery at the handles (8).
m
Installation is in the reverse order. When installing the battery, make sure that it is in
the correct position and that the batteries are correctly connected:
– red cable: + terminal of the 1st battery
– blue cable: - terminal of the 2nd cable
– After the battery has been reinstalled, check all cable connections and plugged
connections for visible damage.
1001.GB
D 4
4 Replacing the batteries
– Loosen screws (5), remove front hood (6) and front wall (7).
– Loosen the terminal screws and remove the battery cables from the terminals.
m
Place the battery cables in such a manner that they do not get caught on the truck
when the battery is pulled out.
– Lift out battery at the handles (8).
m
Installation is in the reverse order. When installing the battery, make sure that it is in
the correct position and that the batteries are correctly connected:
– red cable: + terminal of the 1st battery
– blue cable: - terminal of the 2nd cable
– After the battery has been reinstalled, check all cable connections and plugged
connections for visible damage.
