Jungheinrich HC 110 Operator's Manual

D 5
1004.GB
5 Battery Displays

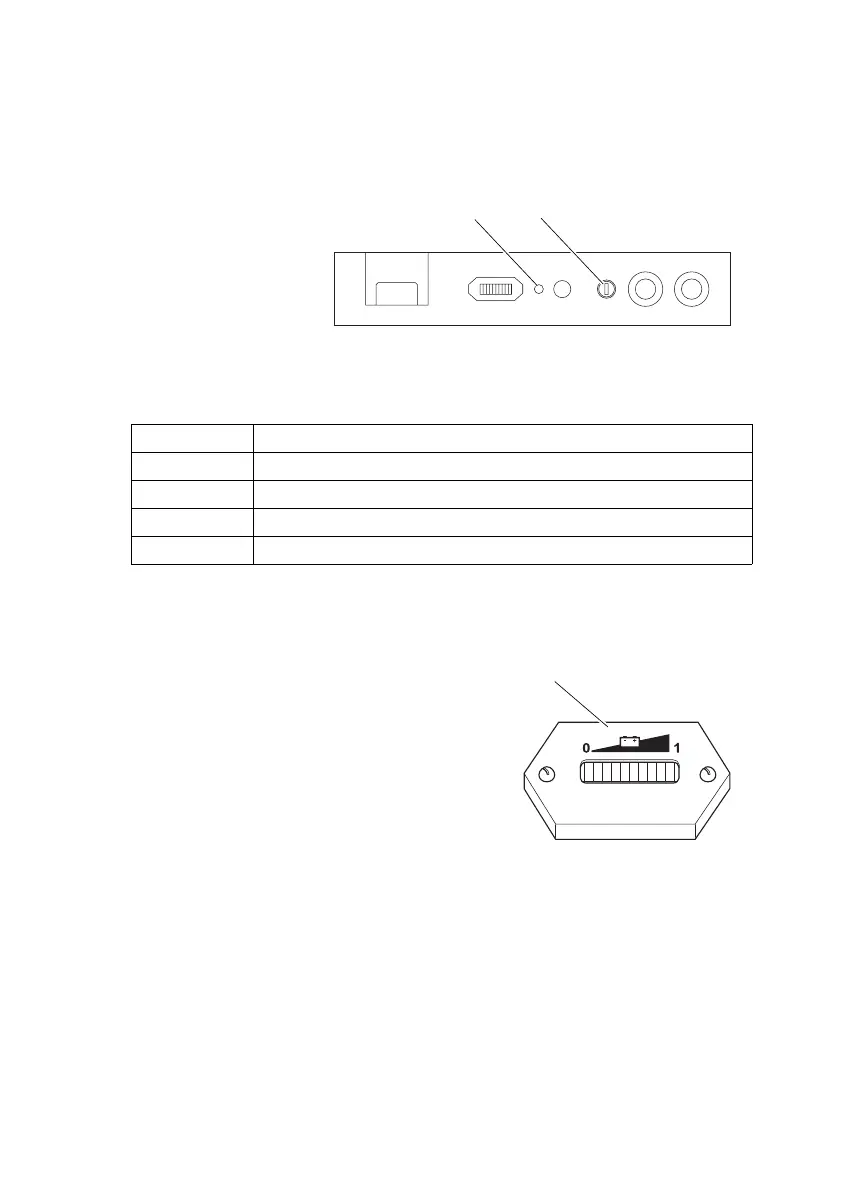

5.1 Charge status display
When the charger has been connected to a mains socket, the LED (5) indicates the
battery charge status.
The LED (5) colours represent the following conditions:
5.2 Battery discharge indicator
When the truck has been released via the key
switch (6) the battery discharge indicator (7)
displays the charge status.
The battery discharge status is indicated in 10%
increments through the 10 bars on the battery
discharge indicator (7).
As the battery increasingly discharges,
the bars go out from right to left.
LED
Flashes green Battery is being charged
Lit green Battery fully charged, charge conservation
Flashes red Battery faulty, charge circuit interrupted, no mains supply
Not lit Truck faulty
5
6
7
D 5
1004.GB
5 Battery Displays
5.1 Charge status display
When the charger has been connected to a mains socket, the LED (5) indicates the
battery charge status.
The LED (5) colours represent the following conditions:
5.2 Battery discharge indicator
When the truck has been released via the key
switch (6) the battery discharge indicator (7)
displays the charge status.
The battery discharge status is indicated in 10%
increments through the 10 bars on the battery
discharge indicator (7).
As the battery increasingly discharges,
the bars go out from right to left.
LED
Flashes green Battery is being charged
Lit green Battery fully charged, charge conservation
Flashes red Battery faulty, charge circuit interrupted, no mains supply
Not lit Truck faulty
5
6
7
