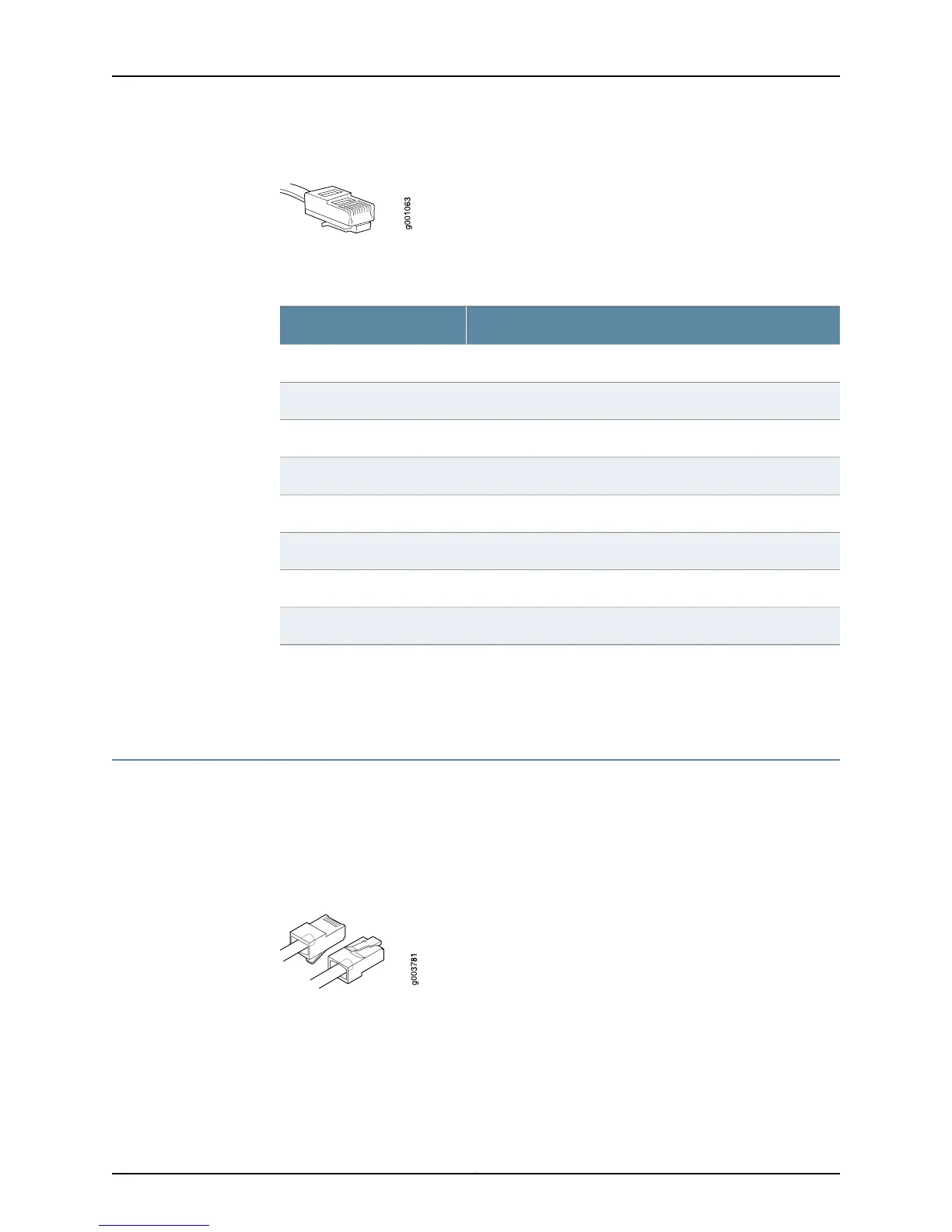

Figure 13: Ethernet Cable Connector (RJ-45)
Table 24 on page 102 describes the RJ-45 connector pinouts for the ETHERNET port.
Table 24: RJ-45 Connector Pinouts for the Access Point Ethernet Port
SignalPin
TX+1
TX -2
RX+3
PoE V+4
PoE V+5
RX —6
PoE V-7
PoE V-8
Related
Documentation
Interface Cable and Wire Specifications for the AX411 Access Point on page 101•
• RJ-45 Connector Pinouts for the AX411 Access Point Console Port on page 102
RJ-45 Connector Pinouts for the AX411 Access Point Console Port
The console port on the front panel is an RJ-45 receptacle that accepts an RJ-45 cable
for connecting the AX411 Access Point to the serial port on a laptop or desktop
management workstation for diagnostics or troubleshooting.
Figure 14 on page 102 shows the RJ-45 connector for the console port.
Figure 14: Console Cable Connector
Table 25 on page 103 describes the RJ-45 connector pinouts for the CONSOLE port.
Copyright © 2012, Juniper Networks, Inc.102
AX411 Access Point Hardware Guide
