JVC AV-27FA44/BSA - 4.5.4 SERVICE MENU FLOW CHART

1-20 (No.52114)

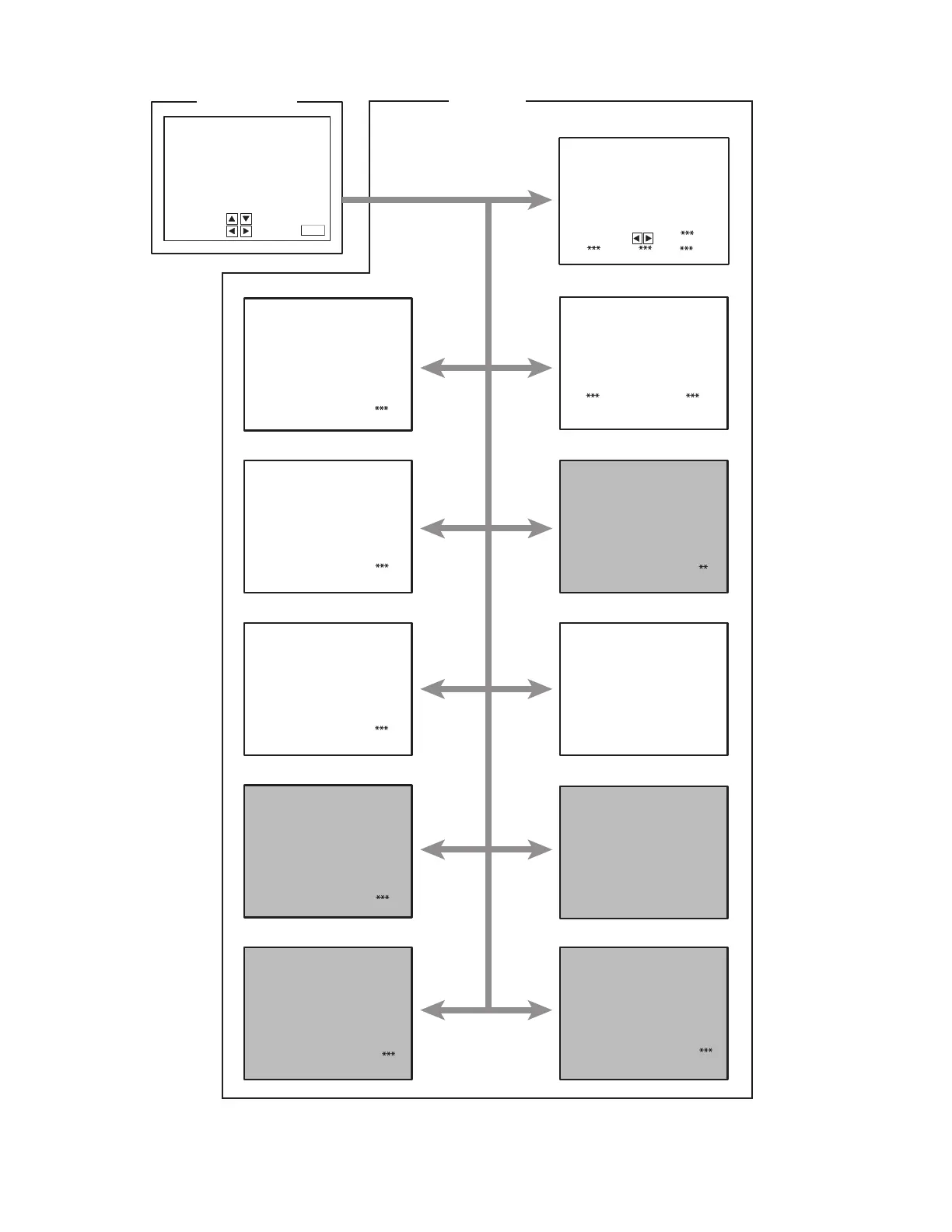

4.5.4 SERVICE MENU FLOW CHART
1.V/C(S)
2.DEF(D)
3.SOUND(A)
4.OTHERS(F)
[Fixed value. Do not adjust]
F01
A01 IN LEVEL
D01 V FREQ
RF 4 : 3 STD LOW
RF 4 : 3 STD LOW
S01 BRIGHT
6.3L Y/C(LYC)
[Fixed value. Do not adjust]
LYC01
1.V/C(S) 2.DEF(D)
3.SOUND(A) 4.OTHERS(F)
6.3L Y/C(LYC)
7.LOW LIGHT 8.HIGH LIGHT
9.RF AFC 10.VCO
11.I2C BUS 12.SYSTEM(SYS)
SELECT BY
OPERATE BY EXIT BY
EXIT
SERVICE MENU
BRIGHT
7.LOW LIGHT
SUB MENU
SERVICE MENU
12.SYSTEM(SYS)
[Fixed value. Do not adjust]
SYS01 VIDEO
11.I2C BUS [Fixed value]
I2C BUS ON
10.VCO
TUNER MAIN
HIGH LEVEL
REFERENCE LEVEL
LOW LEVEL
SYNC : YES
9.RF AFC [Fixed value]
TOO HIGH GOOD TOO LOW
TUNER MAIN
AFC ON
FINE
8.HIGH LIGHT
