JVC DD-8E - Removing the Front Base

1-12 (No.MB563)
3.1.3 Removing the front base
(See Fig.10)
• Remove the side panel L, side panel R and top cover.
(1) From the bottom side of the main body, remove the four
screws E attaching the front base.
(2) Release the joint b of the front base and then remove in the
direction of the arrow.

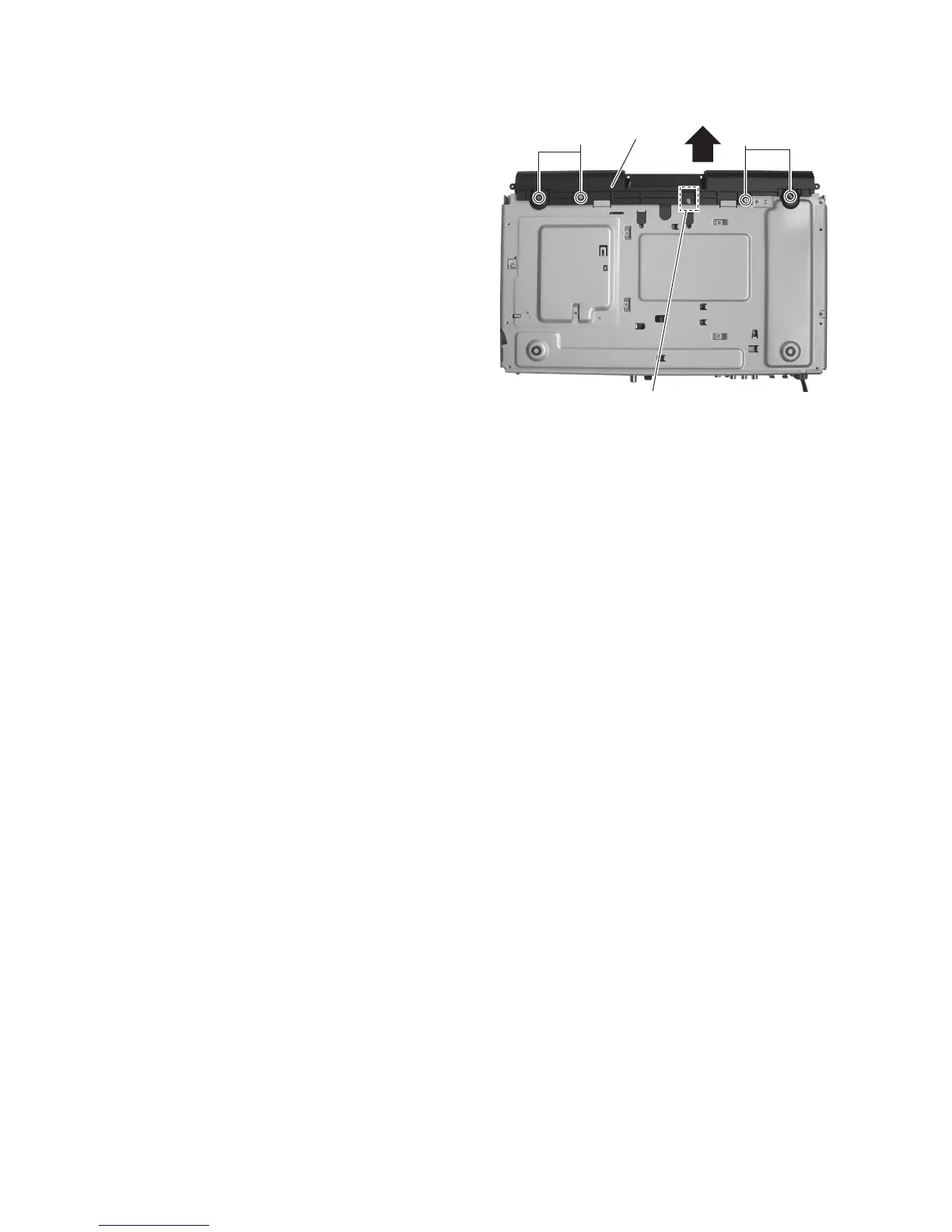

Fig.10
Front base
E
b
E
