JVC DD-8E - Removing the FL Board; Removing the Key Board

1-20 (No.MB563)

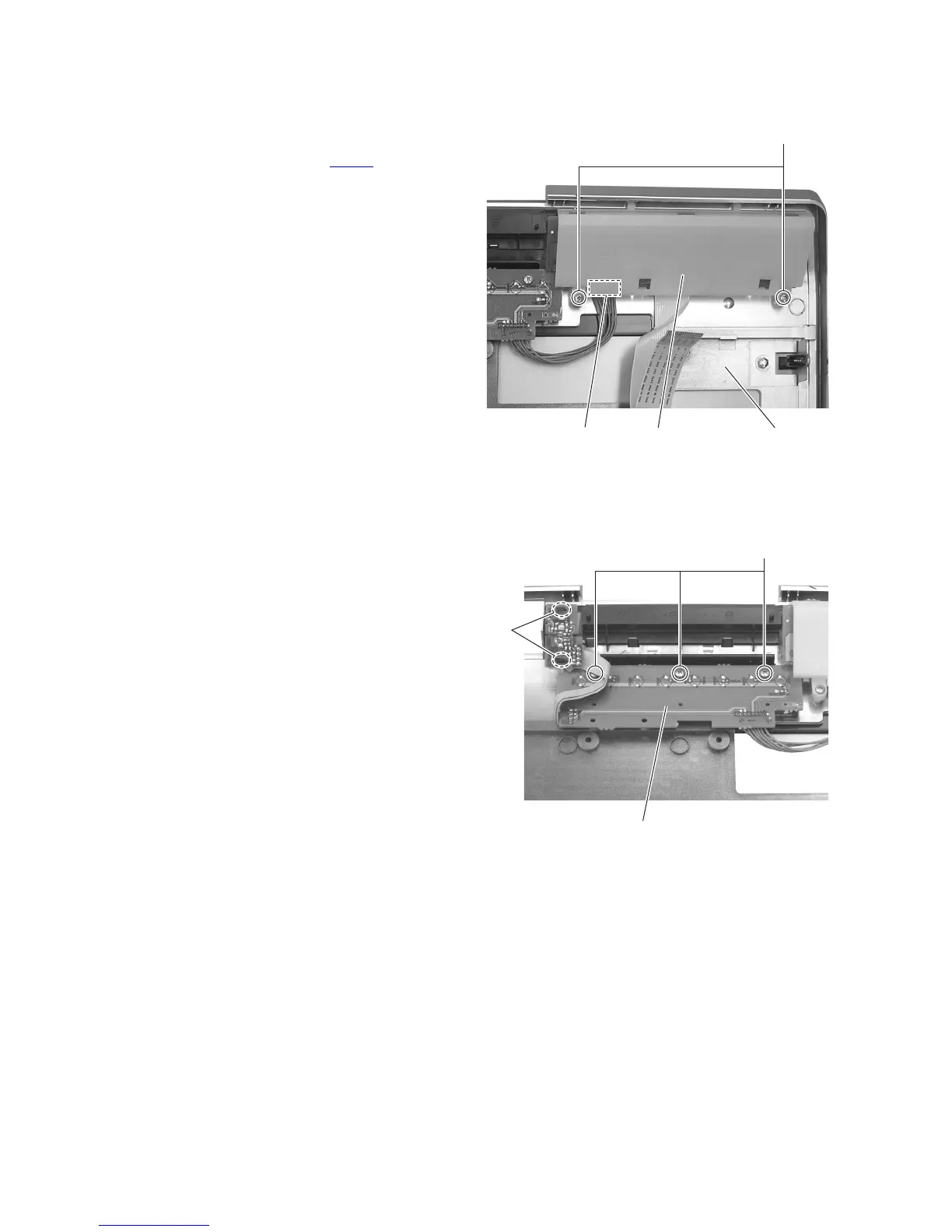

3.1.14 Removing the FL board
(See Fig.23)
• Remove the side panel L, side panel R and top cover.
(1) From the bottom side of the top cover, remove the two
screws Y attaching the top cover.
(2) Disconnect the wire from the connector CN562
on the FL
board.
(3) Take out the FL board from the top cover.
Fig.23
3.1.15 Removing the key board
(See Fig.24)
• Remove the side panel L, side panel R, top cover and FL
board.
(1) From the bottom side of the top cover, release the two
joints d attaching the key board.
(2) Remove the three screws Z and then take out the key
board from the top cover.
Fig.24
FL boardCN562
Y
Top cover
Key board
Z
d
