(No.MB563)1-13
3.1.4 Removing the audio board
(See Figs.11 and 12)
• Remove the side panel L, side panel R, top cover and front
base.
(1) From the back side of the main body, remove the screw F
and three screws G attaching the audio board to the rear
panel. (See Fig.11)
(2) From top side of the main body, remove the two screws H
attaching the holder. (See Fig.12)
(3) Take out the holder from the main body in the direction of
the arrow. (See Fig.12)
(4) Disconnect the connector CN202
on the audio board from
the main board. (See Fig.12)
(5) Disconnect the wire from the connector CN204
on the au-
dio board. (See Fig.12)
(6) Disconnect the card wire from the connector CN201
on the
audio board. (See Fig.12)
(7) Remove the audio board and then disconnect the wire from
the connector CN421
on the main board. (See Fig.12)
(8) Take out the audio board from the main body.

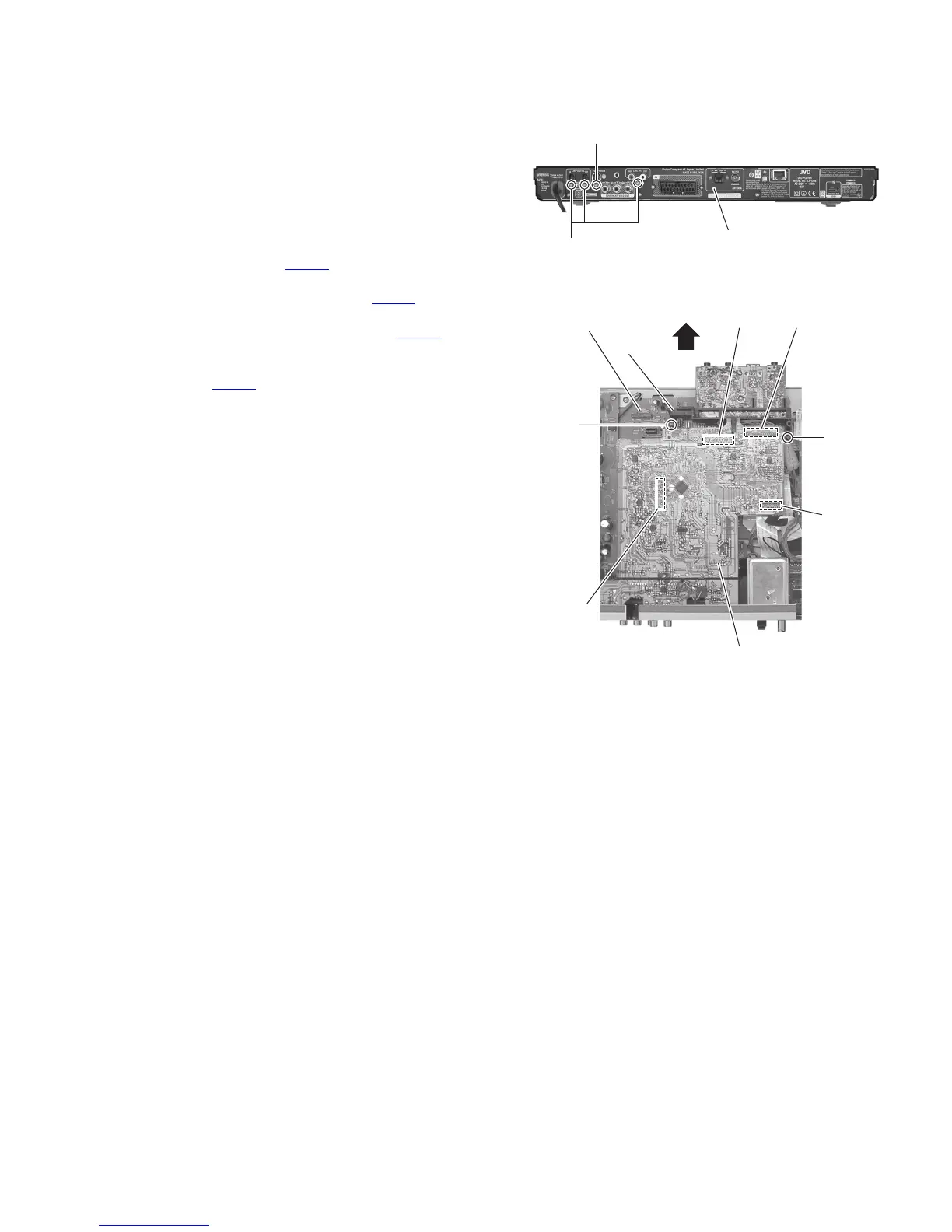

Fig.11
Fig.12
Rear panel
F
G
CN421
Audio board
Main board
CN202 CN204
H
H
CN201
Holder
To Next Page
