JVC DD-8E - Removing the Power Supply Board; Removing the Video Board

(No.MB563)1-19
3.1.12 Removing the power supply board
(See Fig.22)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner and rear panel.
(1) From the top side of the main body, disconnect the wire
from the connector CN901
on the main board.
(2) Disconnect the power code from the connector CN991
on
the power supply board.
(3) Remove the three screws W and screw W' attaching the
power supply board.
Reference:
When attaching the screw W', attach the barrier with it.
(4) Remove the screw X attaching the earth wire to the main
body.
Reference:
When attaching the screw X, attach the earth wire with it.
(5) Take out the power supply board from the main body.
3.1.13 Removing the video board
(See Fig.22)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner and rear panel.
(1) From the top side of the main body, disconnect the card
wires from the connectors (CN601
, CN603) on the video
board.
(2) Take out the video board from the main body in the direc-
tion of the arrow.

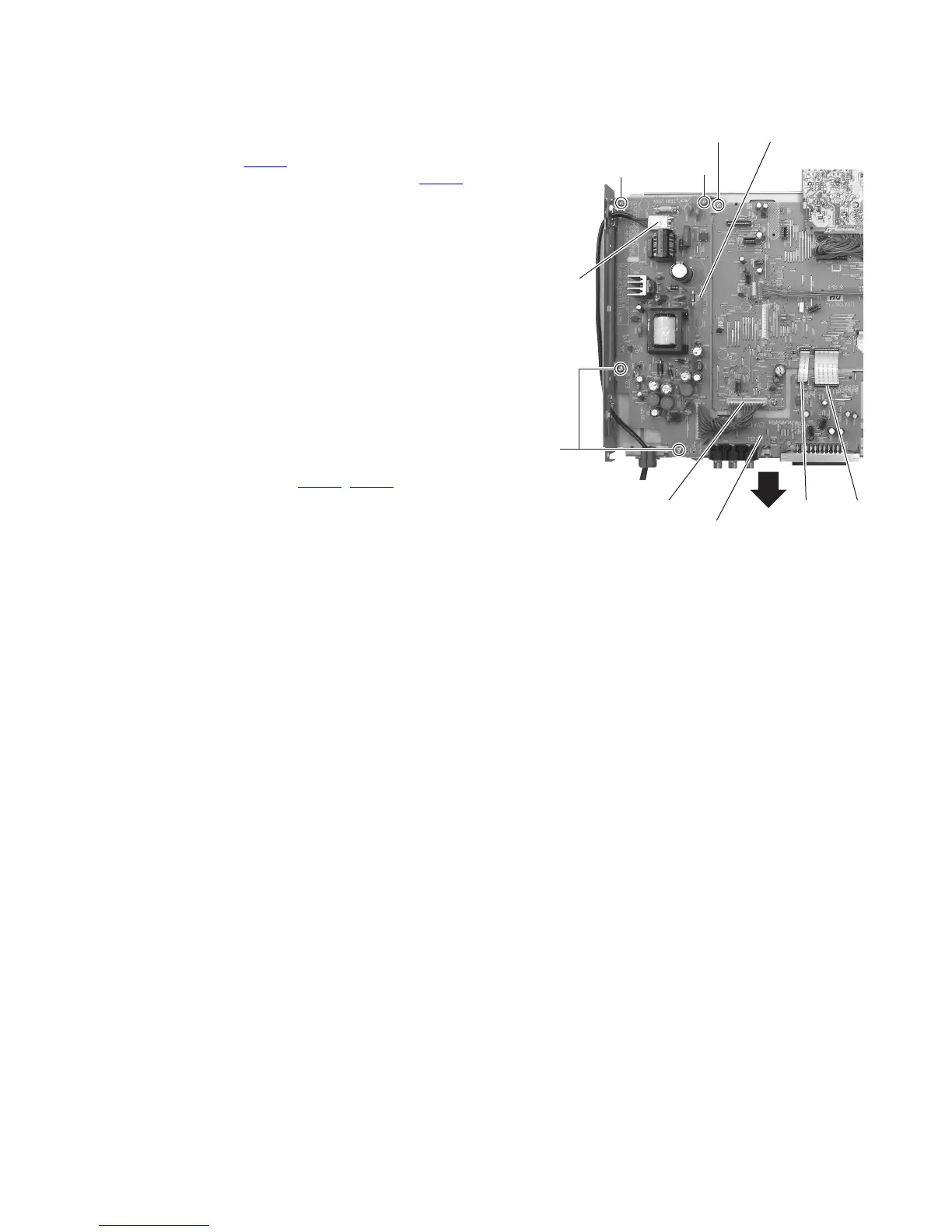

Fig.22
CN991
Power supply board
CN603
W
W
W'
CN601CN901
Video board
X
