JVC DD-8E - Removing the Feed Motor Assembly

1-30 (No.MB563)

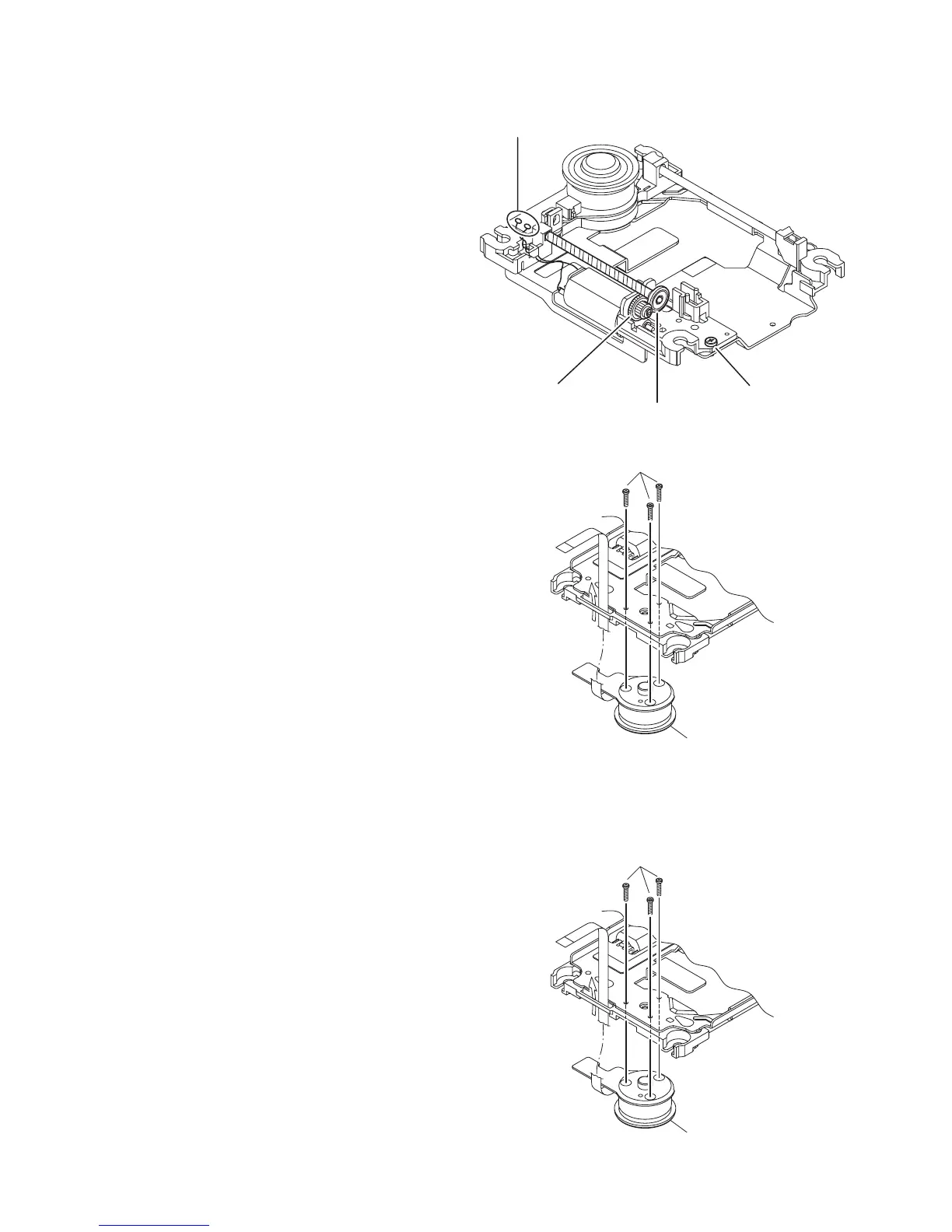

3.3.4 Removing the Feed motor assembly
(See Fig.10)
(1) Remove the one screw F attaching the feed motor assem-
bly.
(2) Remove the feed motor wires from solder part of spindle
motor bard.
Fig.10
3.3.5 Removing the Spindle motor assembly
(See Fig.11)
(1) Remove the two screws G attaching the spindle motor from
spindle motor board.
Fig.11
Lead screw
Middle gear
Splder part
F
Spindle motor
H
Spindle motor
G
