3.2.5 Removing the Control board assembly

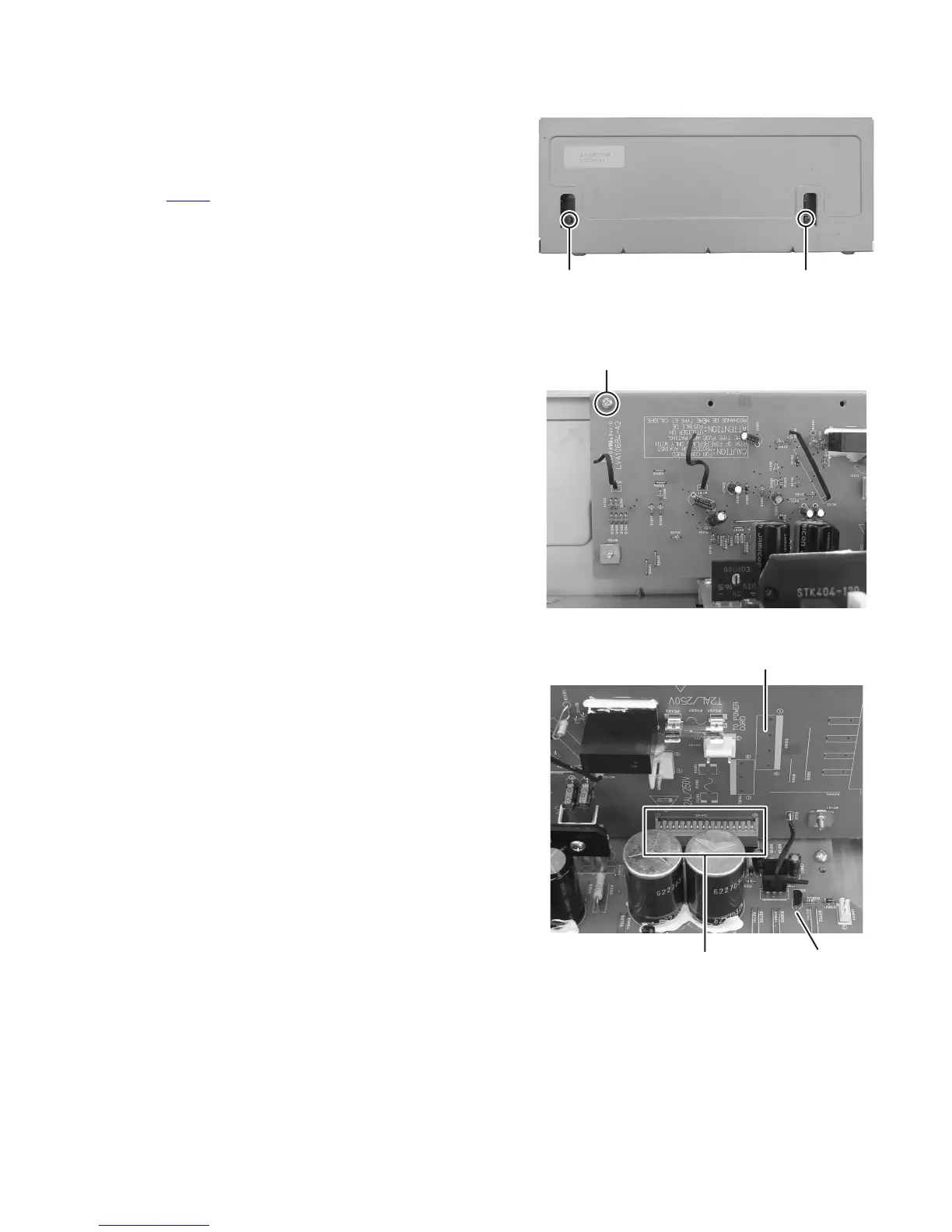

(See Fig.10 to 12)
(1) Remove the two screws L attaching the Control board as-
sembly. (See Fig.10)
(2) Remove the one screw M attaching the Control board as-
sembly. (See Fig.11)
(3) Disconnect the board to board connector connected con-
nector CN105
to AMP board assembly. (See Fig.12)
Fig.10
Fig.11
Fig.12
LL
M
Control board assembly
AMP board
assembly
CN105
