Preparation

■ IMPORTANT

• Do not connect an S-video cable and a compo-

nent video cable at the same time. Otherwise

the picture may not be played back properly.

• Connect the main unit directly to a TV (or a mon-

itor) without routing through a video cassette

recorder (VCR). Otherwise picture distortion

may occur during playback. (Routing the con-

nection through a VCR, however, does not affect

the audio quality.)

• Connecting the main unit to a VCR-built-in-TV

may also cause picture distortion during play-

back.

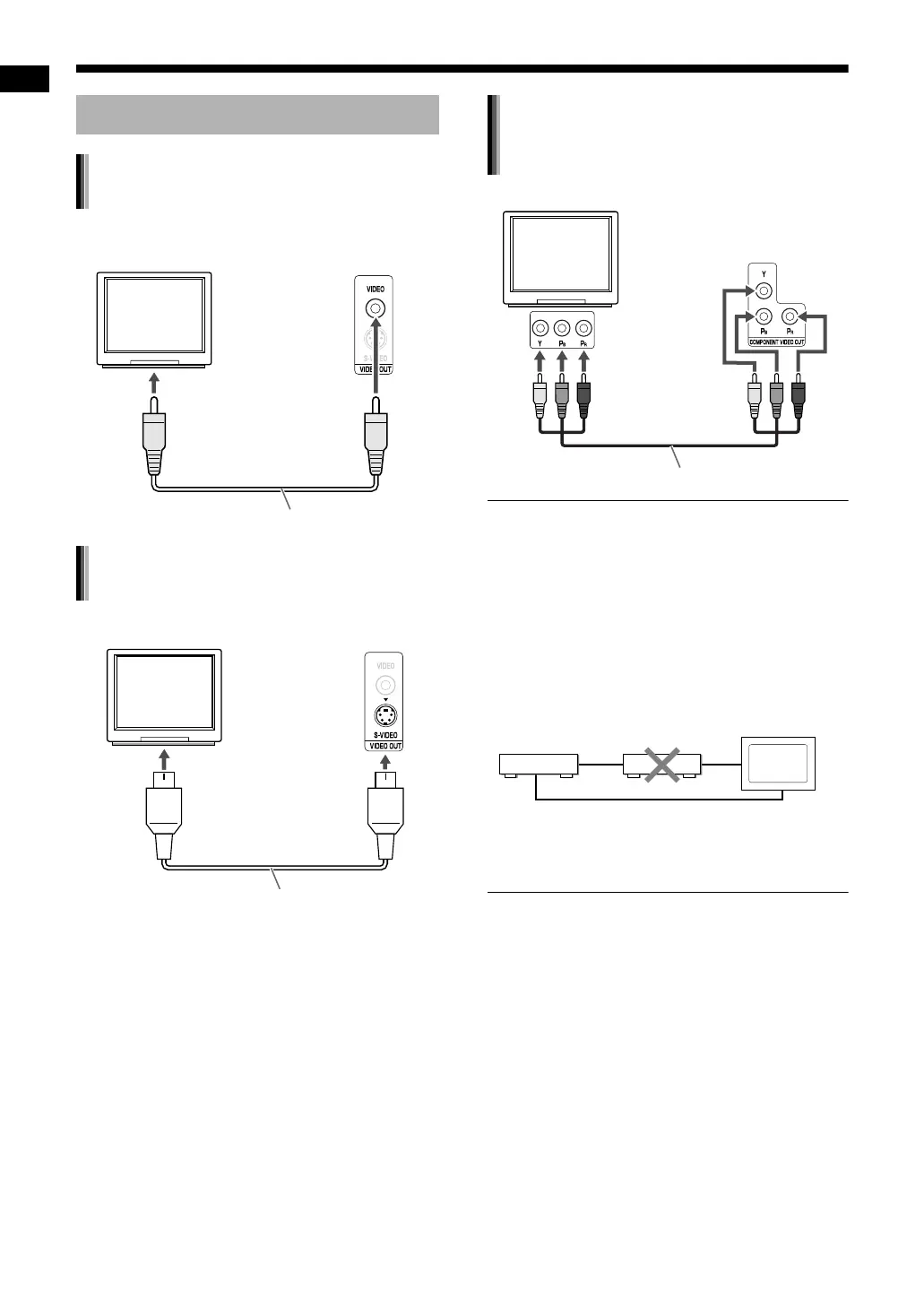

Connecting a TV

Connecting a TV with the [VIDEO]

terminal

To a video terminal

Main unit

(rear view)

Composite video cable (supplied)

Connecting a TV with the [S-VIDEO]

terminal

To an S-video terminal

Main unit

(rear view)

S-video cable (not supplied)

Connecting a TV with the

[COMPONENT VIDEO OUT]

terminals

To component

terminals

Main unit

(rear view)

Component video cable (not supplied)

Main unit

Direct connection

TV (or monitor)VCR
