Preparation
The audio output signal from the [LINE1 OUT] or
[LINE 2 OUT] terminal is processed to resemble
surround sound when the K2 function, clear voice
function, 3D PHONIC function, or headphone sur-
round mode function is activated. To record raw,
unprocessed sound, turn off these functions. Do not
turn the K2 function on or off while recording sound,
as this may cause intermittent sound output.
• An audio signal from a device connected to the
[LINE1 IN] terminal is not output via the [LINE1
OUT] terminal.
When you connect this system with an amplifier-
built-in subwoofer (not supplied), you can enjoy a
more dynamic bass sound. Refer to the manual of
the subwoofer for details.
Press [S.WFR OUT] to select
“S WOOFER ON” (Subwoofer on) in
the display window.
• Each time you press [S.WFR OUT], the display
toggles between “S WOOFER ON” and
“S WOOFER OFF” (Subwoofer off).
NOTE
• When “S WOOFER ON” is selected, the bass
sound from the left and right speakers is auto-
matically turned down, and the bass sound is
emitted mainly from the subwoofer.

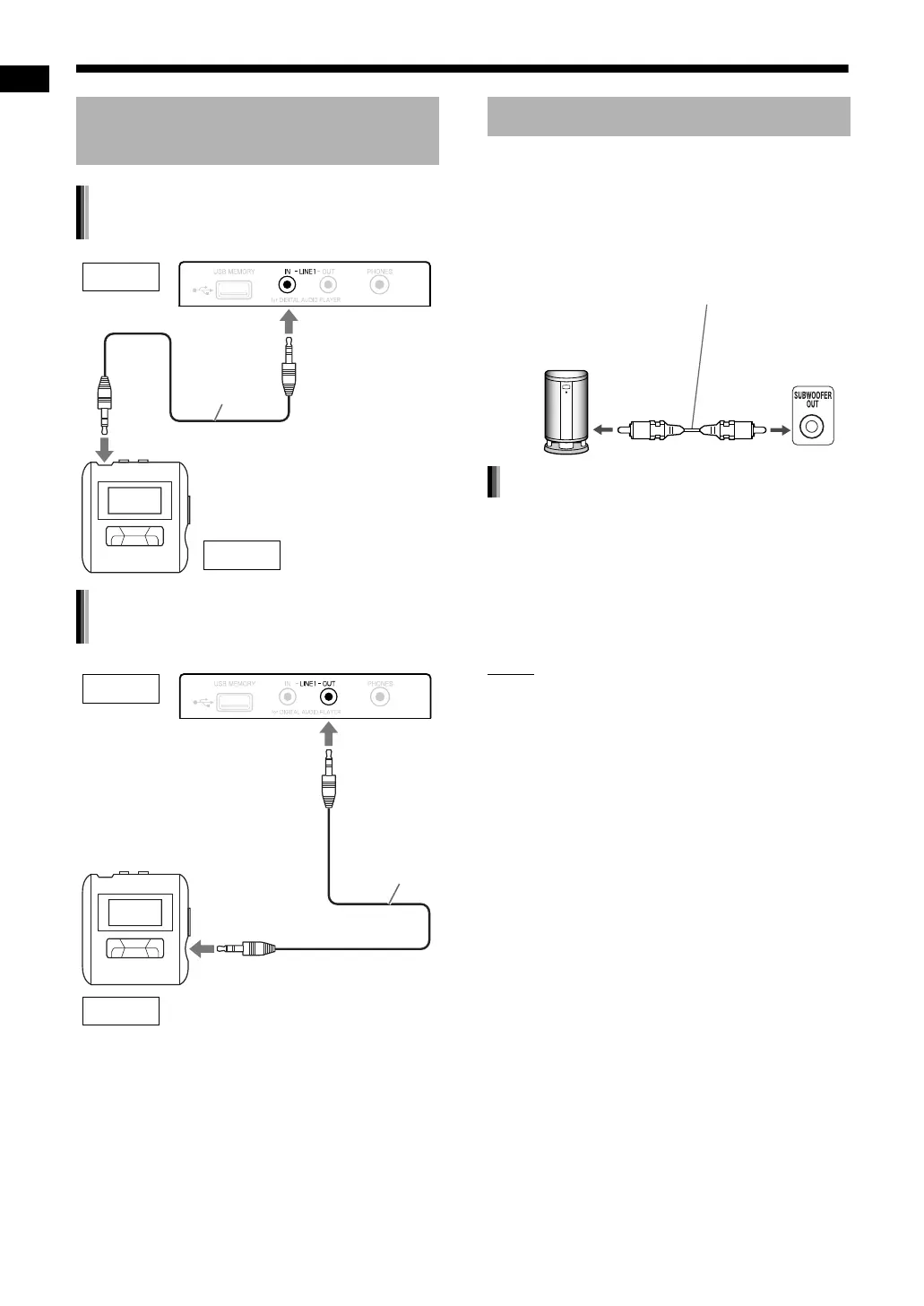

Connecting a portable digital
audio player
Listening to analog sound from a
portable digital audio player
Input
Output
Stereo mini
plug cable
(not supplied)
Portable digital audio player or
other audio device
To an audio output terminal (such as a
headphone terminal)
Main unit (front view)
Outputting analog sound to a
portable digital audio player
Output
Main unit (front view)
Stereo mini
plug cable
(not supplied)
Input
Portable digital audio player or
other audio device
To an audio input terminal
Connecting a subwoofer
Audio cable (not supplied)
(You can use the audio cable supplied
with the amplifier-built-in subwoofer.)
Amplifier-built-in subwoofer
(not supplied)
Main unit
(rear view)
Producing sound from the subwoofer
Preparation (continued) Do not turn on the power until you complete the connection.
