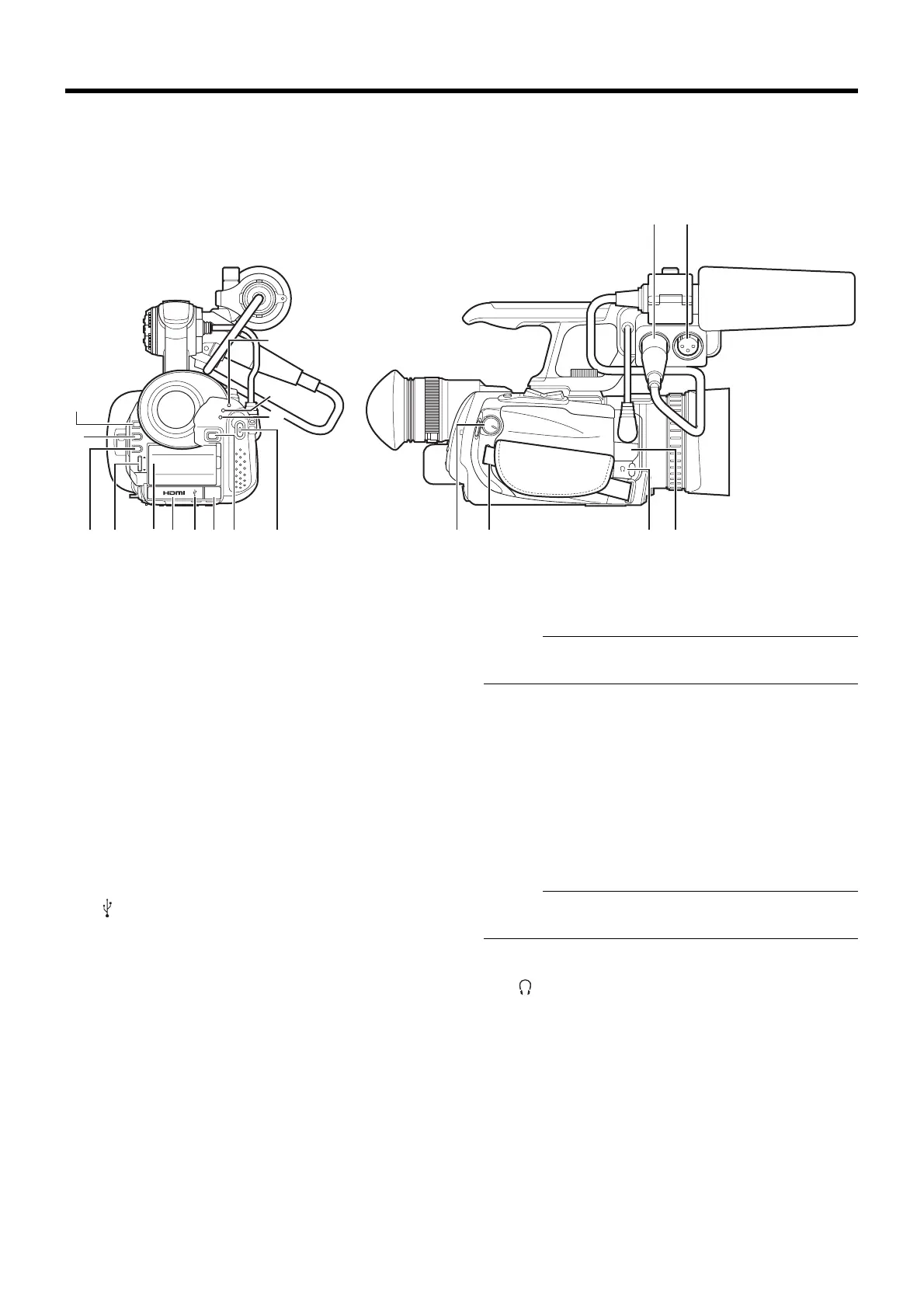

 Rear
A [OIS] Optical Image Stabilizer button (A Page 37)
For switching the image stabilizer feature ON or OFF.
B [SHUTTER] Shutter Speed button ( A Page 35)
Press this button to set the shutter speed manually.
C [AE±] Exposure button ( A Page 31)
Press this button to set the exposure manually.
D [ADJ./VOL.] Adjustment/Volume knob
[ADJ.] : For adjusting the shutter speed ( A Page 35) and
exposure (
A Page 31).
[VOL.] : Also for adjusting the volume of a headphone
and the built-in speaker. (
A Page 39)
E Battery mount ( A Page 16)
F [HDMI] terminal ( A Page 91)
G [ ] USB terminal ( A Page 90)
H [DC] input terminal
I Battery lock release button ( A Page 16)
J [REC] Record trigger button ( A Page 27)
For starting or stopping recording.
K [MEDIA] Media mode indicating lamp ( A Page 25)
Lights up in red during the Media mode.
L [CAM] Camera mode indicating lamp ( A Page 25)
Lights up in red during the Camera mode.
Memo :
● During the USB mode, both the [MEDIA] indicating lamp
K and [CAM] indicating lamp L go out.
M [ACCESS] Access indicating lamp
Lights up or blinks during recording or playback.
 Grip Belt Side
N [STANDBY/ON OFF]/[CAM/MEDIA] Power/Operation
mode selection switch
STANDBY/ON OFF : Turns the power On/Off. ( A Page 17)
CAM/MEDIA : Sets this camera recorder to the Camera
or Media mode.
Memo :
● To switch to the Media mode, fix the switch at the [CAM/
MEDIA] position for 1 second or longer.
O Grip belt mount ( A Page 15)
P [ ] Headphone jack ( A Page 39)
Q [REMOTE] Remote terminal ( A Page 91)
For connecting a separately sold wired remote control.
R [INPUT1] Audio input 1 terminal ( A Page 38)
For connecting an XLR microphone.
S [INPUT2] Audio input 2 terminal ( A Page 38)
For connecting an XLR microphone.
REM
OTE
DC
OPEN
REC
PUSH
OIS
SHUTTER
AE
±
ADJ./ VOL.
CLOSE
ACCESS
CAM
MEDIA
B
K
C
A
DEFGHI J
L
M
N O PQ
SR
 Rear  Grip Belt Side
GY-HM150U.book Page 13 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
