Introduction
A [START/STOP] Button
Button for starting or stopping recording.
B [ZOOM] Button
Press [T] to zoom in.
Press [W] to zoom out.
C [S.SHOT] Button
This function is not available on this camera recorder.
D [-] Button
This function is not available on this camera recorder.
E [ S ] Reverse button
Returns to the beginning of the clip during playback.
F [PLAYLIST] Button
This function is not available on this camera recorder.
G [DISP] Button
For switching the displays on the LCD screen and viewfinder.
H [INDEX] Button
This function is not available on this camera recorder.
I [ T ] Forward button
Advances to the next clip during playback.
J [+] Button
This function is not available on this camera recorder.
K [INFO] Button
This function is not available on this camera recorder.
L [ ] Left button
Moves the cursor to the left on the menu screen or thumbnail
screen.
It is also used to perform reverse search during playback or
frame-by-frame reverse playback during pause.
M [ ] Down button
Moves the cursor downward on the menu screen or
thumbnail screen. Advances to the next clip during playback.
N [ ] Right button
Moves the cursor to the right on the menu screen or
thumbnail screen.
It is also used to perform forward search during playback or
frame-by-frame forward playback during pause.
O [ ] Up button
Moves the cursor upward on the menu screen or thumbnail
screen. Returns to the beginning of the clip during playback.
P [ ] Button
For confirming a selected item on the menu screen or
thumbnail screen.
It is also used to start or pause playback when in the Media
mode.
Memo :
● To use the remote control, set [Wireless Remote] in the
[Others] menu to AOnB. (A Page 74)
● When a wired remote control is connected, operation from
the remote control is not accepted regardless of the
setting.

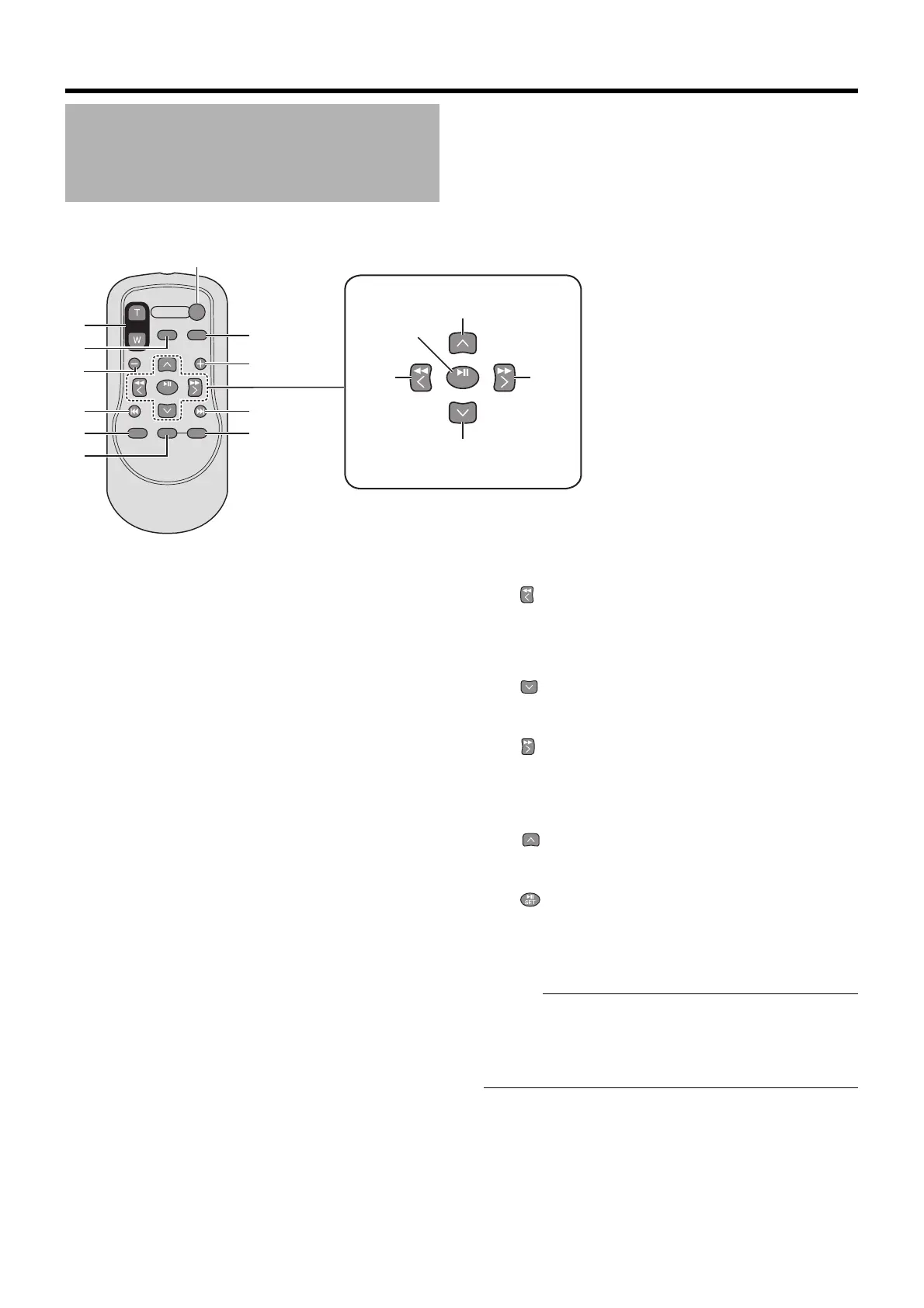

Names of Remote Control
Parts and Functions
SET
SET
STAR T / STOP
ZOOM S.SHOT INFO
PLAYLISTDISP INDEX
B
K
C
A
D
E
F
G
H
I
J
L
M
N
O
P
GY-HM150U.book Page 14 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
