Preparations

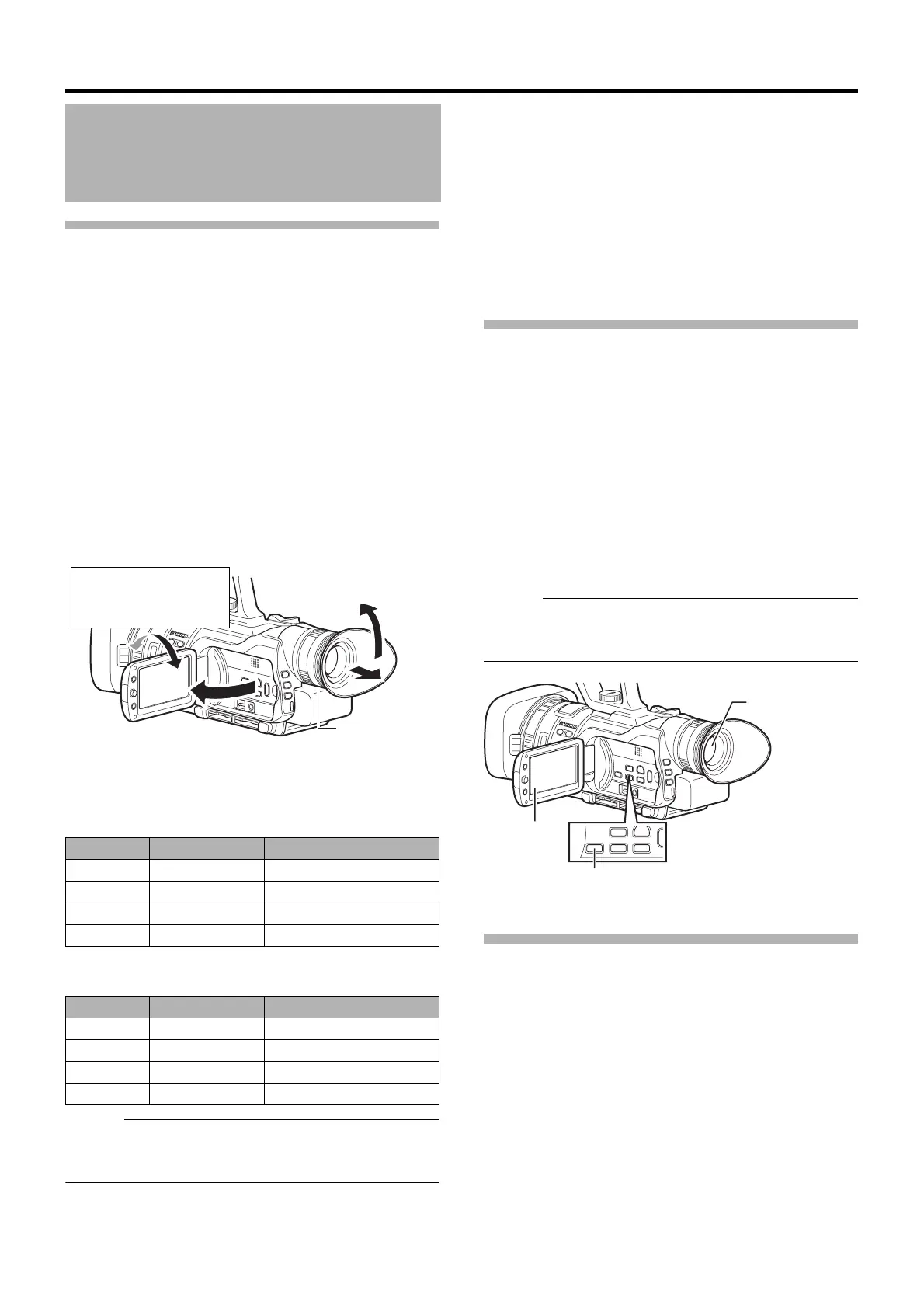

Viewing the Viewfinder/LCD Screen
You can monitor video images on this camera recorder using
the viewfinder, LCD screen, or both.
 Viewing with the viewfinder
1 Pull out the viewfinder.
2 Incline the viewfinder vertically to a position that
enables easy viewing.
3 Turn the eyepiece focus lever to adjust the focus.
 Viewing with the LCD screen
1 Open the LCD cover.
2 Incline the LCD cover to a position that enables easy
viewing.
 Relationship between the viewfinder and LCD screen
displays
When [VF Slide SW] in the [LCD/VF] menu is set to ADisableB
(A Page 70)
When [VF Slide SW] in the [LCD/VF] menu is set to AEnableB
(A Page 70)
Memo :
● When the [HDMI], [COMPONENT OUT] or [A/V OUT]
terminal is connected, video images will not appear on the
viewfinder.
 Adjusting the brightness of the viewfinder
Set using [VF Bright] in the [LCD/VF] menu. (A Page 70)
 Adjusting the brightness of the LCD screen
Set using [LCD Bright] in the [LCD/VF] menu. (A Page 70)
 Setting the brightness of the LCD screen
backlight
Set using [LCD Backlight] in the [LCD/VF] menu.
(A Page 70)
Displays on the viewfinder/LCD screen
You can display the camera status, media information, and
various markers in the video image on the LCD monitor and
viewfinder screens during shooting.
Besides camera and playback images, the following
characters are displayed on the LCD monitor and viewfinder.
 Status screen (A Page 23)
 Auto White display* (A Page 24)
 Menu setting screen (A Page 24)
 Alarm display (A Page 24)

Marker and safety zone indicators* ( A Page 87)
* Displayed in Camera mode only
Memo :
● When [Display On TV] in the [A/V Out] menu is set to A On B ,
the status screen and menu screen are also displayed in the
video image of the video signal output terminal. ( A Page 73)
Status Screen
This screen allows you to check the current settings.
To display the status screen, press the [DISPLAY] button in
the normal screen.
The status display differs according to the operation mode,
namely Camera, Media, and USB.
LCD Monitor/Viewfinder
VF Status LCD Status Video Output
OFF OFF VF
OFF ON LCD+VF
ON OFF VF
ON ON LCD+VF
VF Status LCD Status Video Output
OFF OFF VF
OFF ON LCD
ON OFF VF
ON ON LCD+VF
ON
ON
Eyepiece
Focus Lever
Face-to-face Shooting
Direction (direction in
which the screen faces the
subject)
C.REVIEW/4 ZEBRA/5
DISPLAY
[DISPLAY] Button
Viewfinder
LCD
Monitor
GY-HM150U.book Page 22 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
