JVC GY-HM150U User Manual

82

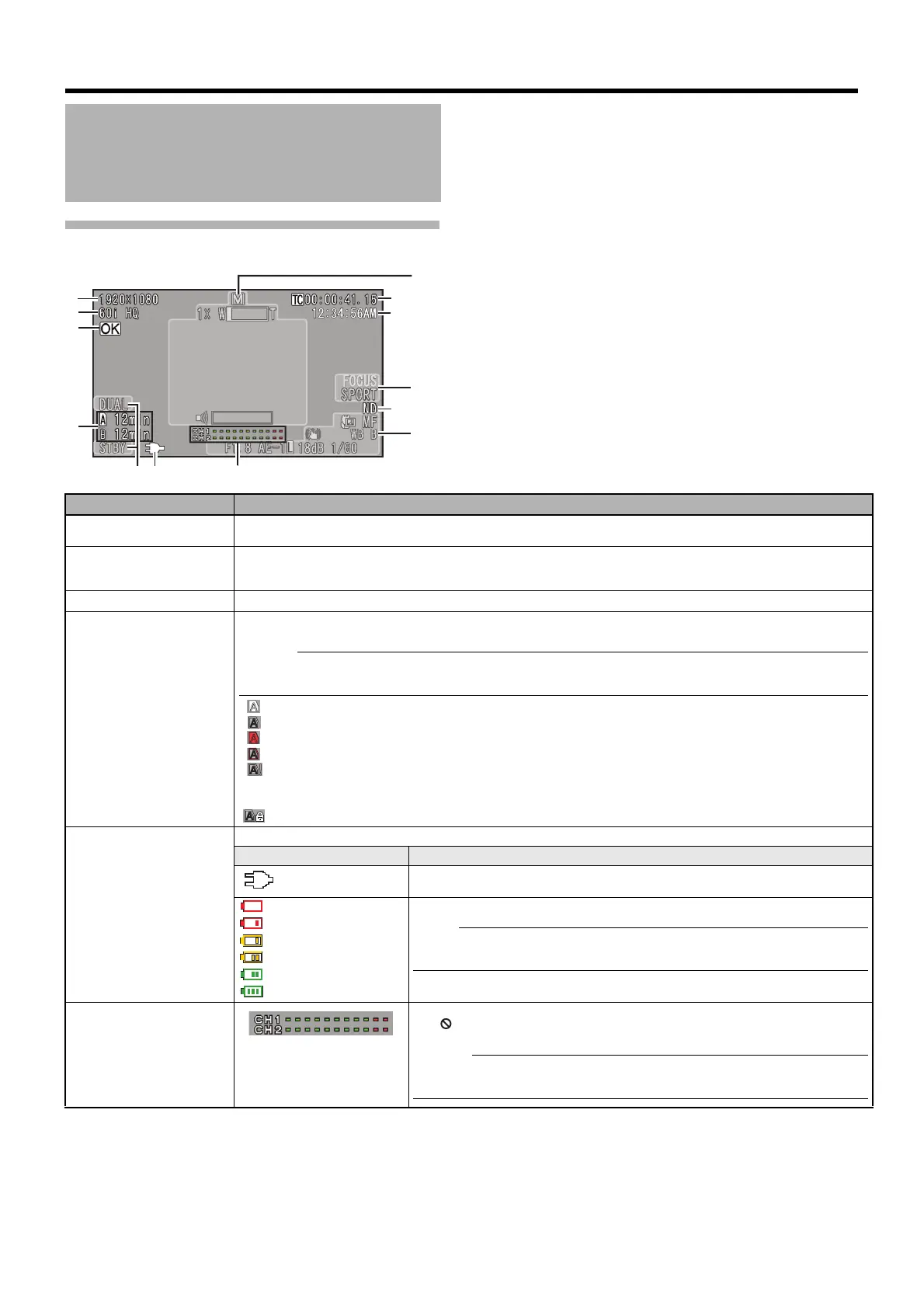

Status Screen
STATUS 1 Screen
Status Screen in Camera
Mode (continued)
B
C
A
F
H
D
E
G
I
* 0: Same as STATUS 0 Screen (A Page 80)
*0
*0
*0
*0
Item Description
A Resolution
Displays the video image resolution.
(19201080, 14401080, 1280720, 720480, 720576)
B Frame Rate/Bit Rate
Displays the frame rate and bit rate in pairs.
(60p HQ, 30p HQ, 60i HQ, 60p SP, 30p SP, 60i SP, 50p HQ, 25p HQ, 50i HQ, 50p SP, 25p SP, 50i SP, 24p HQ, 24p SP,
50i, 60i)
C OK Mark
Appears when an OK mark is added. (A Page 56)
D Remaining Space on
Media
Displays the remaining recording time of the SDHC/SDXC cards in Slot A and Slot B separately. When the
remaining time is less than 3 mintues, it is displayed in yellow.
Memo :
● Only warnings are displayed in the STATUS 0 and STATUS 4 screens. (When the remaining time is less than 3
minutes or when the warning sign [!] is displayed for the card)
: Currently selected slot. (White card)
: Unselected slot.
: Selected slot and slot in which recording is in progress. (Red card)
: Unselected slot during Dual Rec or Backup Rec and slot in which recording is in progress. (Red card)
: SDHC/SDXC card requires restoring or formatting, or SDHC/SDXC card is not supported (not of Class
6/10 type). (Warnings such as AINVALID MEDIAB appear in the remaining time display area.
A Page 94 [Error Displays and Actions])
: Write-protect switch of SDHC/SDXC card is set.
E Voltage/Battery
Power
Displays the current status of the power supply in use.
Display Description
Currently powered by an AC adapter.
(red): Less than 1 %
(red): 1 % to 20 %
(yellow): 21 % to 30 %
(yellow): 31 % to 40 %
(green): 41 % to 70 %
(green): 71 % to 100 %
Currently powered by a battery.
Memo :
● The display can be set using [Battery Info] of [Status Display] in the [LCD/VF]
menu. (A Page 72)
F Audio Level Meter
Displays the audio level for CH-1 and CH-2.
The mark is displayed when in a mode that does not support audio recording
and for unsupported audio.
Memo :
● You can turn ON/OFF the display using [Audio Meter] of [Status Display] in the
[LCD/VF] menu. (A Page 72)
A
A
A
A
A
A
!
A
A
A
A
GY-HM150U.book Page 82 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
