Overview

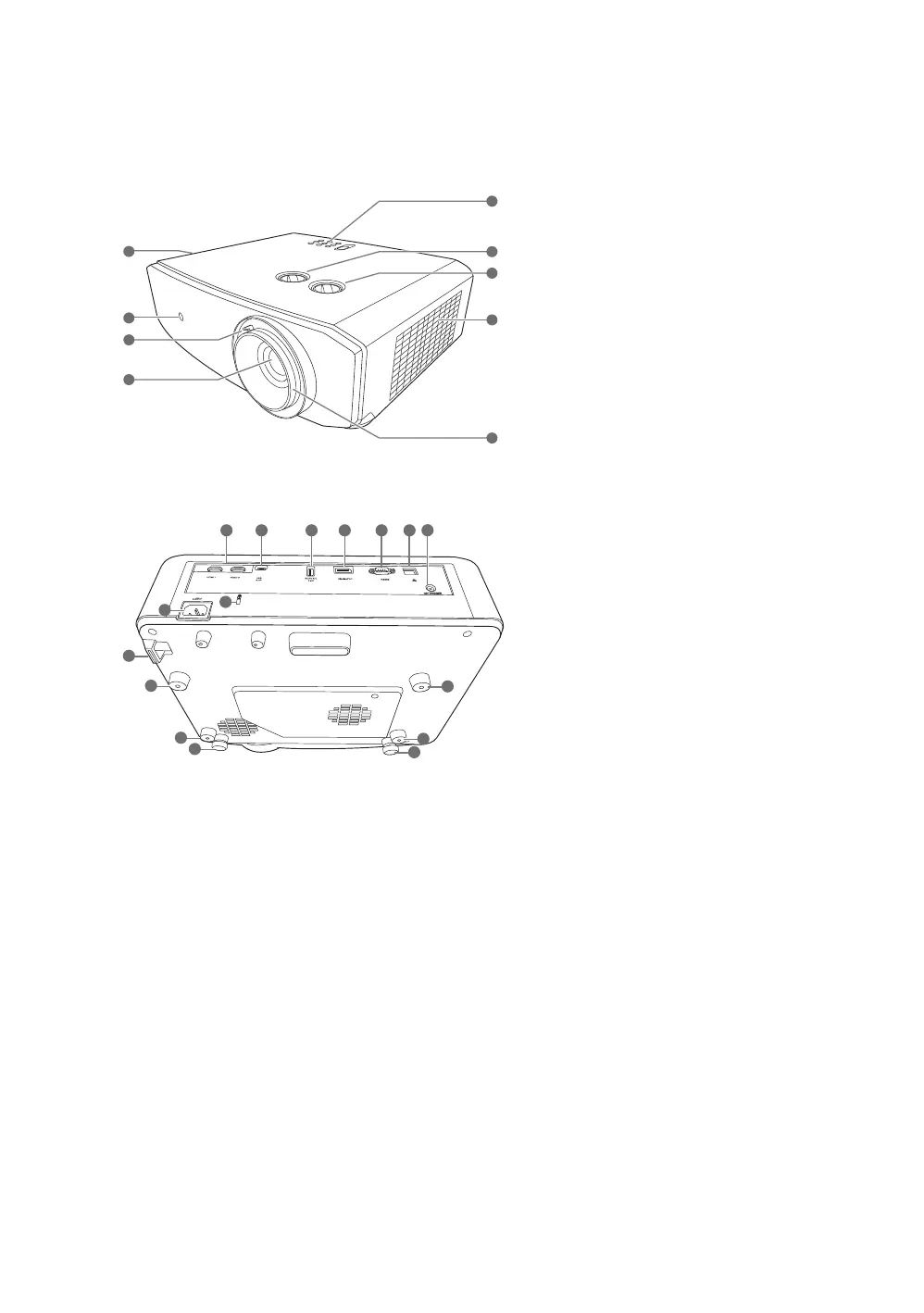

Projector exterior view
Front and upper side view
1. Vent (heated air exhaust)
2. Front IR remote sensor
3. Zoom ring
Adjusts the size of the projected image.
4. Projection lens
5. Control panel (See "Control panel"
for details.)
6. Lens shift knob (Left/Right)
Adjusts the horizonta
l position of the
projected image.
7.
Lens shift knob (Up/Down)
Adjust
s the vertical position of the
projected image.
8.
Vent (cool air intake)
9. Focus ring
Adjusts the focus of the projected image.
10.HDMI ports (HDCP 2.3)
11. USB port
12.SERVICE (USB Type-A) port
Used for charging external device.
13.DisplayPort port
14.RS-232 control port
15.RJ-45 LAN control port
16.12VDC output terminal
Used to trigger external devices such as
an electric screen or light control, etc.
Consult your dealer for how to connect
these devices.
17.AC Power cable inlet
18.Kensington lock slot
19.Security bar
20.Ceiling mount holes
21.Adjuster feet
Rear/bottom view
6
5
7
9
8
3
4
2
1
20
20
21
19
17
18
20
20
21
141312 15 16
11
10

JVC LX-NZ30 Specifications

General

Light Source	Laser
HDR Support	HDR10, HLG
Lens Shift	Vertical: ±60%, Horizontal: ±23%
Zoom	1.6x
Throw Ratio	1.36 - 2.18:1
Lamp Life	20, 000 hours
3D	Yes
Resolution	3840 x 2160
Ports	HDMI, USB, RS232, LAN
Contrast Ratio	∞:1 (Dynamic)
