(No.YA098)3-11

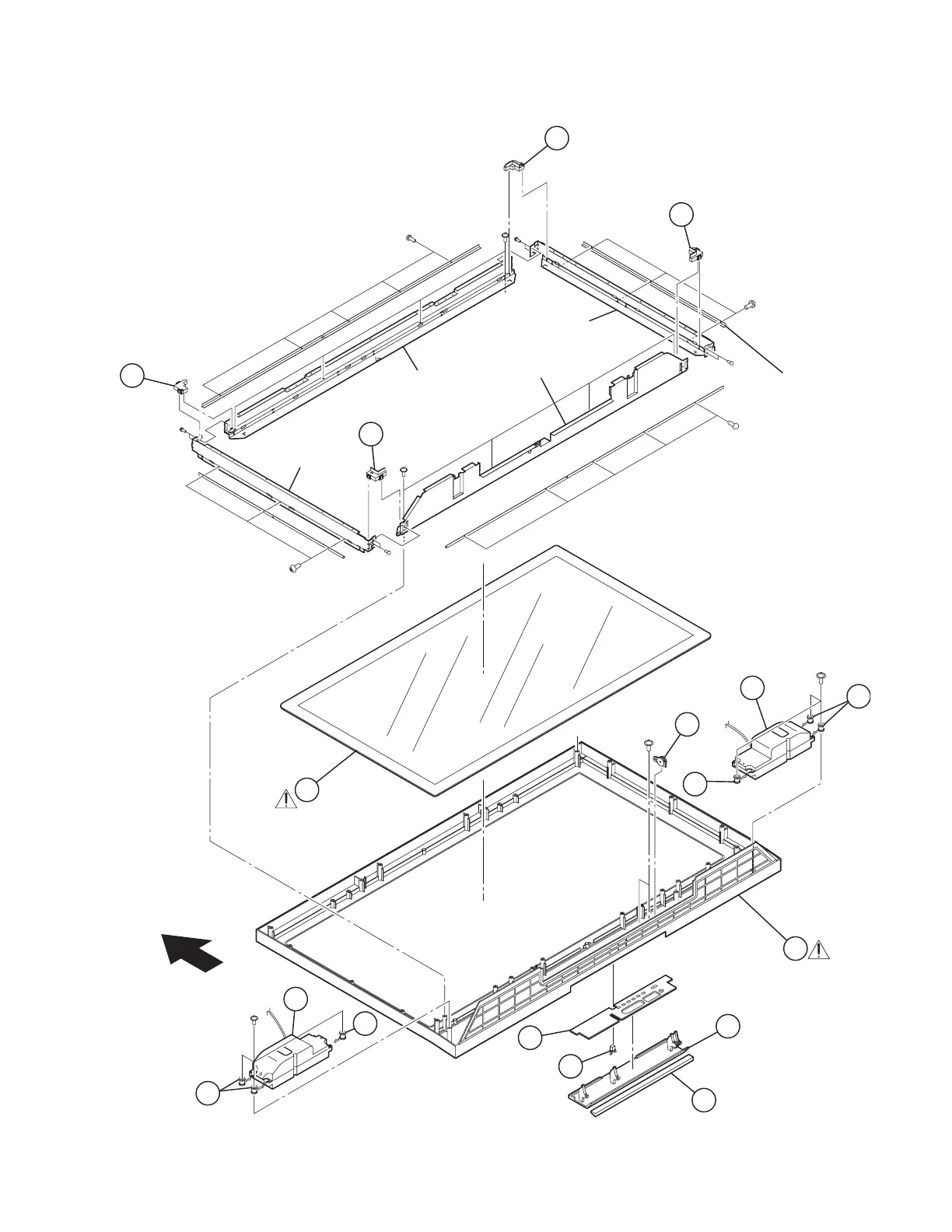

EXPLODED VIEW - 4
TOP
78
75
76
77
FILTER
BRACKET
70
71
73
TOP FRAME
BOTTOM
FRAME
SIDE FRAME
SIDE FRAME
100
71
71
72
71
74
104
103
101
102
f
f
