EDITING (cont.)
Output/Input Set
L-1 OUTPUT and L-1 INPUT Setting
The AV1 (L-1) IN/OUT connector accepts and delivers either a
composite signal (regular video signal) or a Y/C signal (a signal
in which the luminance and chrominance signals are separated).
Set “L-1 OUTPUT” and “L-1 INPUT” to the appropriate mode
depending on the type of appliance connected to the recorder’s
AV1 (L-1) IN/OUT connector.

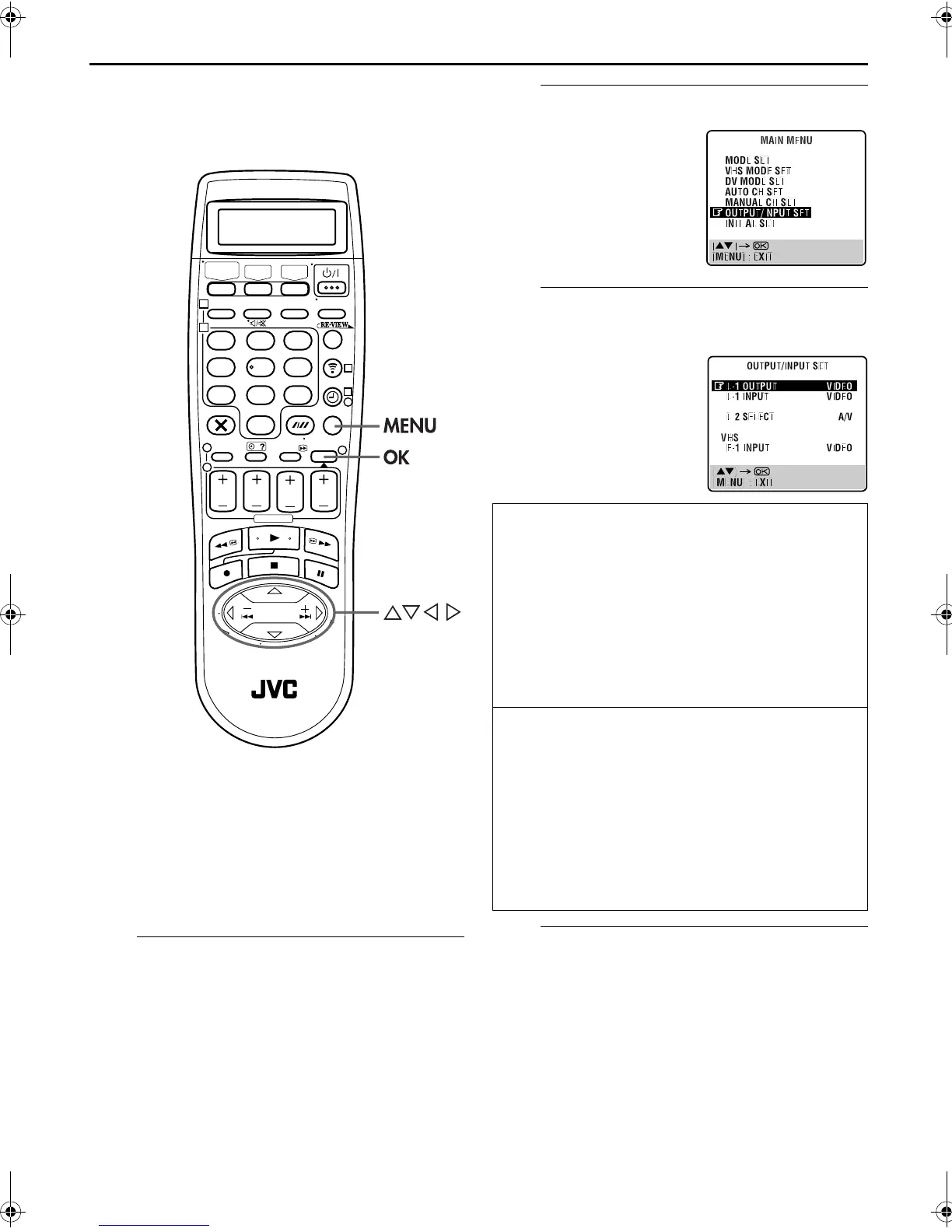

A
Access the Main Menu screen.
Press
MENU
.
B
Access the Output/Input Set screen.
C
Select the output or input mode for the AV1
(L-1) IN/OUT connector.
D
Return to the normal screen.
Press
MENU
.
NOTES:
●
If “L-1 OUTPUT” is set to “S-VIDEO”, it is impossible to set
“L-1 INPUT” to “S-VIDEO”.
●
If “L-2 SELECT” is set to “DECODER”, it is impossible to set
“L-1 INPUT” to “S-VIDEO”.
123
456
789
1
2
1
2
3
0
3
4
4
Press
rt
to move the
highlight bar (pointer) to
“OUTPUT/INPUT SET”, then
press
OK
or
e
.
Press
rt
to move the
highlight bar (pointer) to “L-1
OUTPUT” or “L-1 INPUT”.
Then, press
OK
or
e
to select
the appropriate setting.
* The default setting is
bold
in
the table below.
8
L-1 OUTPUT
VIDEO
: If a connected appliance’s input is
compatible only with regular video
signals, set to “VIDEO”.
S-VIDEO:
If a connected appliance’s input is
compatible with Y/C signals, set to
“S-VIDEO”. You can obtain high-
quality S-VHS picture. (For
connection, be sure to use a 21-pin
SCART cable that is compatible with
the Y/C signal.)
8
L-1 INPUT
VIDEO
: If a connected appliance’s output is
compatible only with regular video
signals, set to “VIDEO”.
S-VIDEO
: If a connected appliance’s output is
compatible with Y/C signals, set to
“S-VIDEO”. You can obtain high-
quality S-VHS picture. (For
connection, be sure to use a 21-pin
SCART cable that is compatible with
the Y/C signal.)
