14

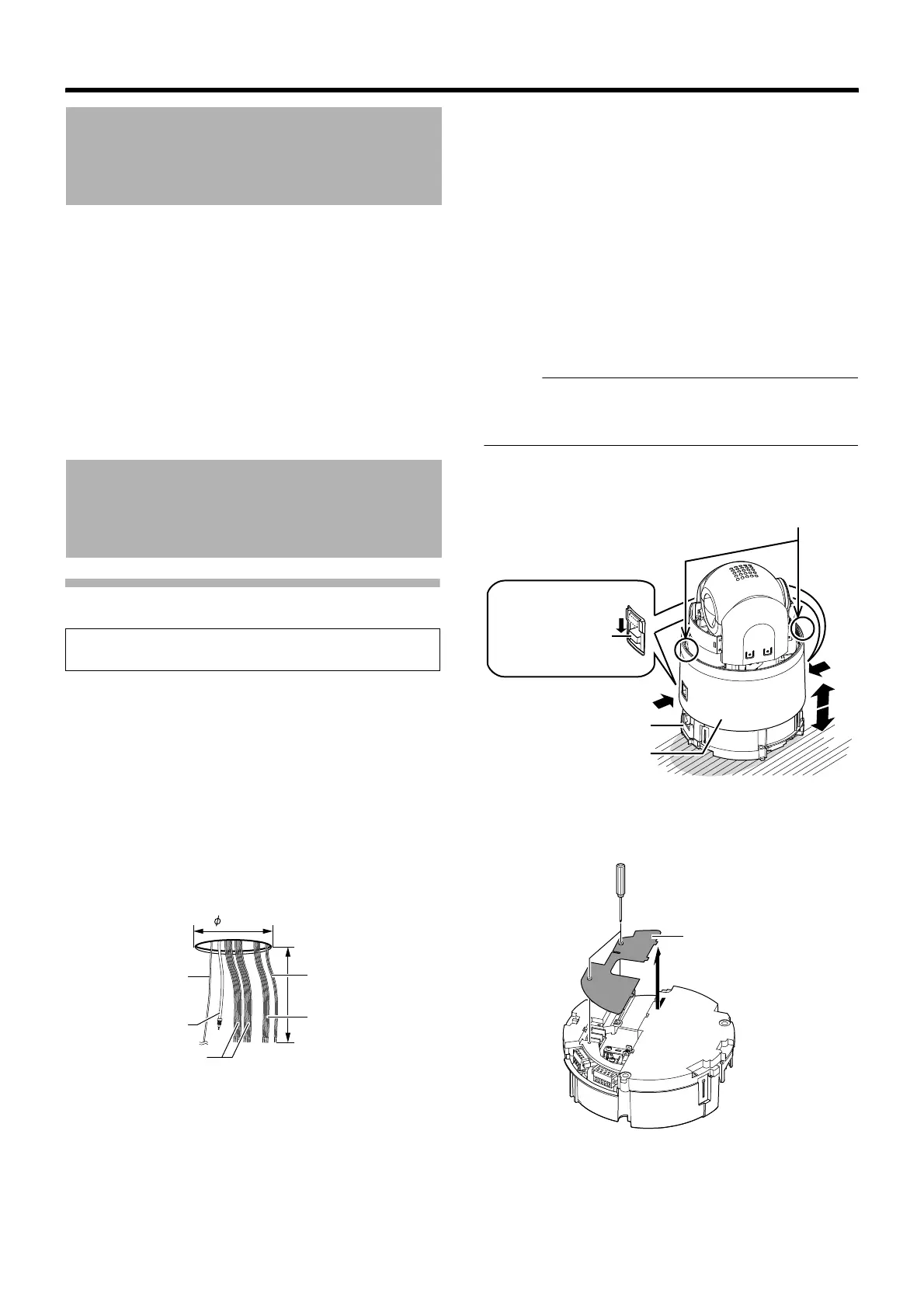

Connection/Installation (TK-C685E/TK-C686E)
Install the camera with the following procedures.
Preparation (A Page 14)
K
Mounting the ceiling mount bracket (A Page 17)
K
Mounting the camera (A Page 17)
Preparation
1
Make holes on the ceiling
● Use the provided template to make a hole (R80 mm) for
the connection cables to thread behind the ceiling.
● If necessary, also open a screw hole to mount the
ceiling mount bracket to the ceiling. In this case, align
the AD FRONT markB of the template in the direction
where the camera faces front and open the screw hole.
2 Pull the cables from the hole in the ceiling
Pull out the fall prevention wire, power cable, coaxial cable,
control signal cable, alarm signal cable and provided alarm
cable that were mounted to the ceiling slab from the wall.
3 Unfasten the ceiling mount bracket from the
camera unit
The ceiling mount bracket comes attached to the camera
unit. Before installing, unfasten the ceiling mount bracket
from the camera unit.
A Check to ensure that the camera fixing lock knobs (x2) is
not turned on.
● If it is locked, slide the camera fixing lock knobs to
unlock in the direction as shown below.
B Push in the camera fixing lock knobs (x2) from both left
and right sides in the direction as illustrated in the
diagram.
● Unfasten the ceiling mount bracket on a table to
prevent it from falling off.
Memo :
● If it is difficult to push in the camera fixing lock knob, push
in while pressing the edge of camera (figure A) against
the table where the process is being carried out.
C Lift the camera unit upward to remove the ceiling mount
bracket, and pull down in the direction as indicated.
4 Remove the terminal cover
Loosen two screws on the ceiling mount bracket and remove
the terminal cover.
Camera Installation
Procedures
Mounting the Camera
Be sure to put on protective glasses to protect your eyes
from falling objects when mounting on the ceiling.
1
2
80 mm
Safety wire
Alarm signal cable
Control signal cable
Power cable
Coaxial cable
C
B
B
A
A
Camera fixing lock
knob (x2)
Ceiling mount bracket
Camera unit
Terminal cover
To Next Page
