63
This function divides the 360
⬚
panning (horizontal rotation) area into
16 areas and displays the area title on the screen when the camera
is rotated manually.
A maximum of 16 characters can be set for each area.
Display On/Off (
A
Page 42 [AREA DISPLAY])
䡵 Preparation
1
Select a camera (
A
RM-P2580 Instruction Manual)
● [CAMERA] button B Numeric keypad (camera number)
B [ENTER] button
● Images from the selected camera are output.
2 Display the [MENU] screen (A Page 34)
● The [MENU] screen is displayed.
3 Select the [CAMERA TITLE/ALARM] screen
● Shift up and down the [PAN/TILT] lever, move the
cursor (Z) to the [CAMERA TITLE/ALARM] item and
press the [SET] button.
● The [CAMERA TITLE/ALARM] screen is displayed.
䡵 Setting
1
Move the cursor (
Z
) to [AREA DISPLAY], shift the
[PAN/TILT] lever to the left and right to select
A
TITLE
B
,
and press the [SET] button
● The [AREA TITLE EDET AREA1] screen is displayed.
(The home position corresponds to area No. 1)
● The first character from the character area flashes on
and off and is ready for input.
2 Shift the [PAN/TILT] lever up/down/left/right and
select the first character from the character area
● The selected character is displayed flashing on and off.
3 Press the [SET] button
● The first character of the title is confirmed and the
second character is ready for input.
Memo :
● Press the [WIDE] button to move the cursor position of the
title input area to the left. Press the [TELE] button to move
it to the right. This is used to modify the configured title.
4 Press the [FAR] button
● The camera moves to the next area and the [AREA
TITLE EDET AREA2] screen appears.
● Press the [NEAR] button to return to the previous area.
The [AREA TITLE EDET AREA1] screen appears.
5 Repeat steps 2 to 4
● Enter the entire area title.
6 Press the [MENU] button
● The new area title is saved and the top menu screen is
displayed.

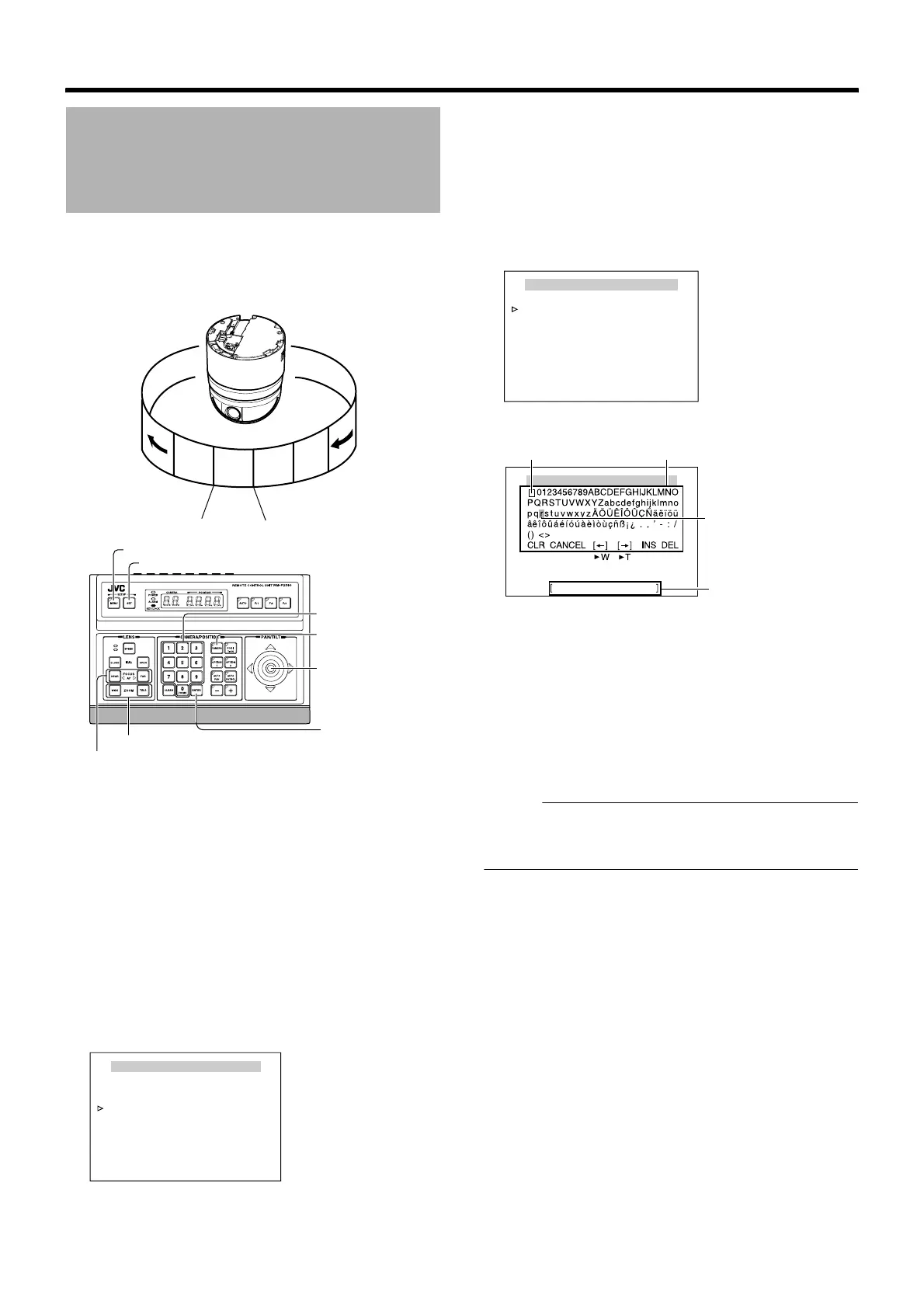

Area Display Mode Setting
(Title)
Home
position
[MENU] button
[SET] button
[CAMERA] button
[PAN/TILT] Lever
Numeric keypad
[ENTER] button
[WIDE], [TELE] button
[NEAR], [FAR] button
Area 2
Area 1
Area
16
Area
15
MENU
LANGUAGE ENGLISH
CAMERA FUNCTION1..
CAMERA FUNCTION2..
CAMERA TITLE/ALARM..
CAMERA ALC..
CAMERA VIDEO..
AUTO PAN/PATROL/TRACE..
POS.FUNCTION SET..
FACTORY SETTINGS..
<
MENU
>
EXIT
<
SET
>
SUB MENU
[MENU] screen
CAMERA TITLE / ALARM
<
MENU
>
RETURN
<
SET
>
SUB MENU
CAM.TITLE EDIT..
AREA DISPLAY.. TITLE
ALM. TITLE SIZE DOUBLE
ALM. TITLE COLOUR WHITE
ALARM TITLE EDIT..
ALARM INPUT..
ALARM OUTPUT..
[CAMERA TITLE/ALARM] screen
AREA TITLE EDIT AREA1
<
MENU
>
RETURN
<
SET
>
CHAR .SET
<
FOCUS KEY
>
AREA No SELECT
[AREA TITLE EDET AREA1] screen
Space Character area
Blinking
Title input area
