~ AM/FM antenna

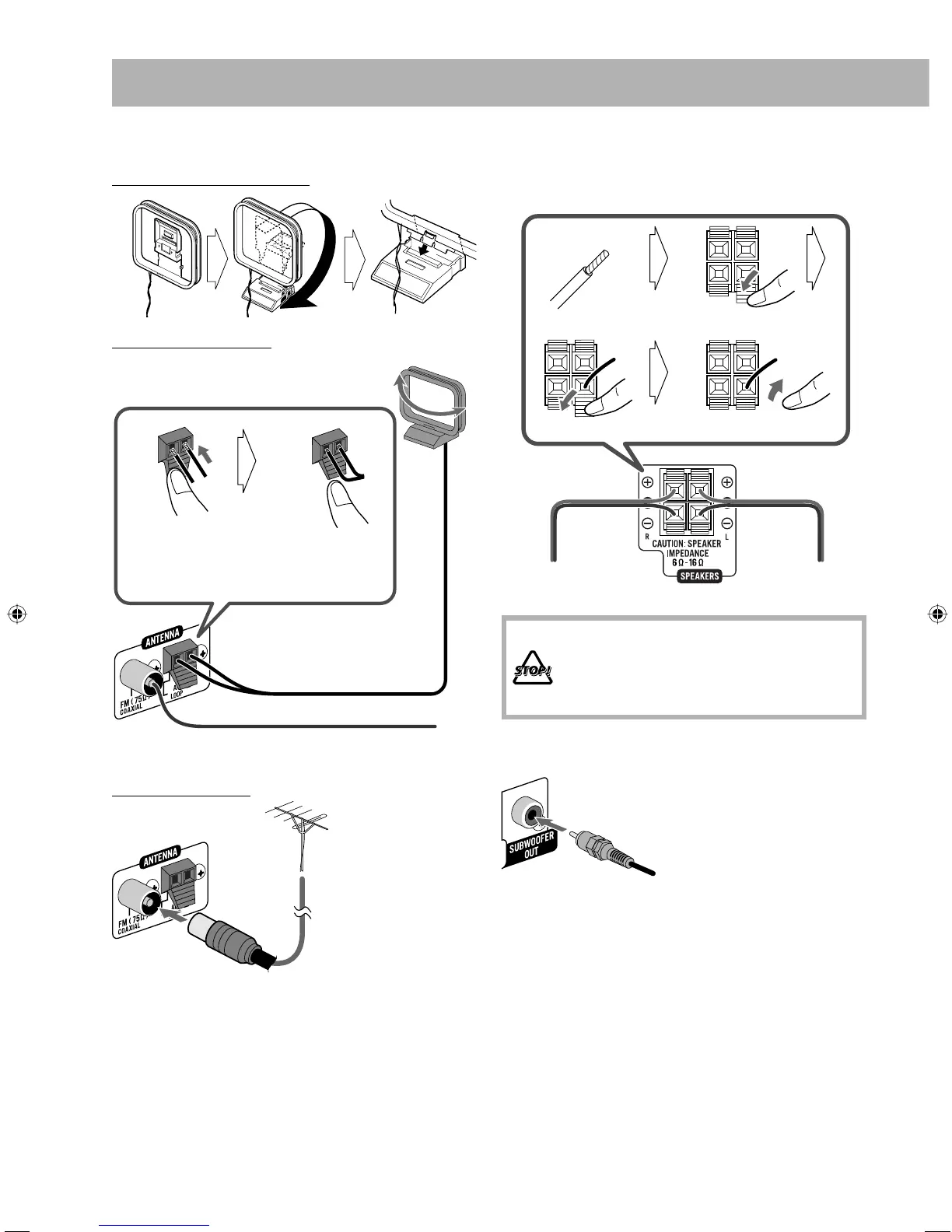

To assemble the AM loop antenna
To connect AM/FM antenna
For better FM reception
Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75 Ω wire with coaxial type
connector.
AM loop antenna (supplied)
Turn it until the best reception is obtained.
If the cords are covered with vinyl,
remove the vinyl to expose the tip of the
cord by twisting the vinyl.
FM antenna (supplied)
Extend it so that you can obtain the
best reception.
FM outdoor antenna
(not supplied)
Ÿ Speakers
• When connecting the speaker cords, match the polarity
of the speaker terminals: red to (+) and black to (–)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom of
the speakers.
! To connect the powered subwoofer
The connected subwoofer can reproduce the bass sounds
recorded in front left and right channels, but cannot
reproduce the LFE signals encoded in multi-channel
software.
• Before plugging the System to the power supply, make
sure that the powered subwoofer is turned off.
Insert Release
Red
Black
From right speaker From left speaker
Press and hold
Red
Black
From the powered subwoofer
(not supplied)
