JVL Industri Elektronik A/S - User Manual - Ethernet for MAC and MIS motors 61
3.5 CiA® DSP-402 drive profile

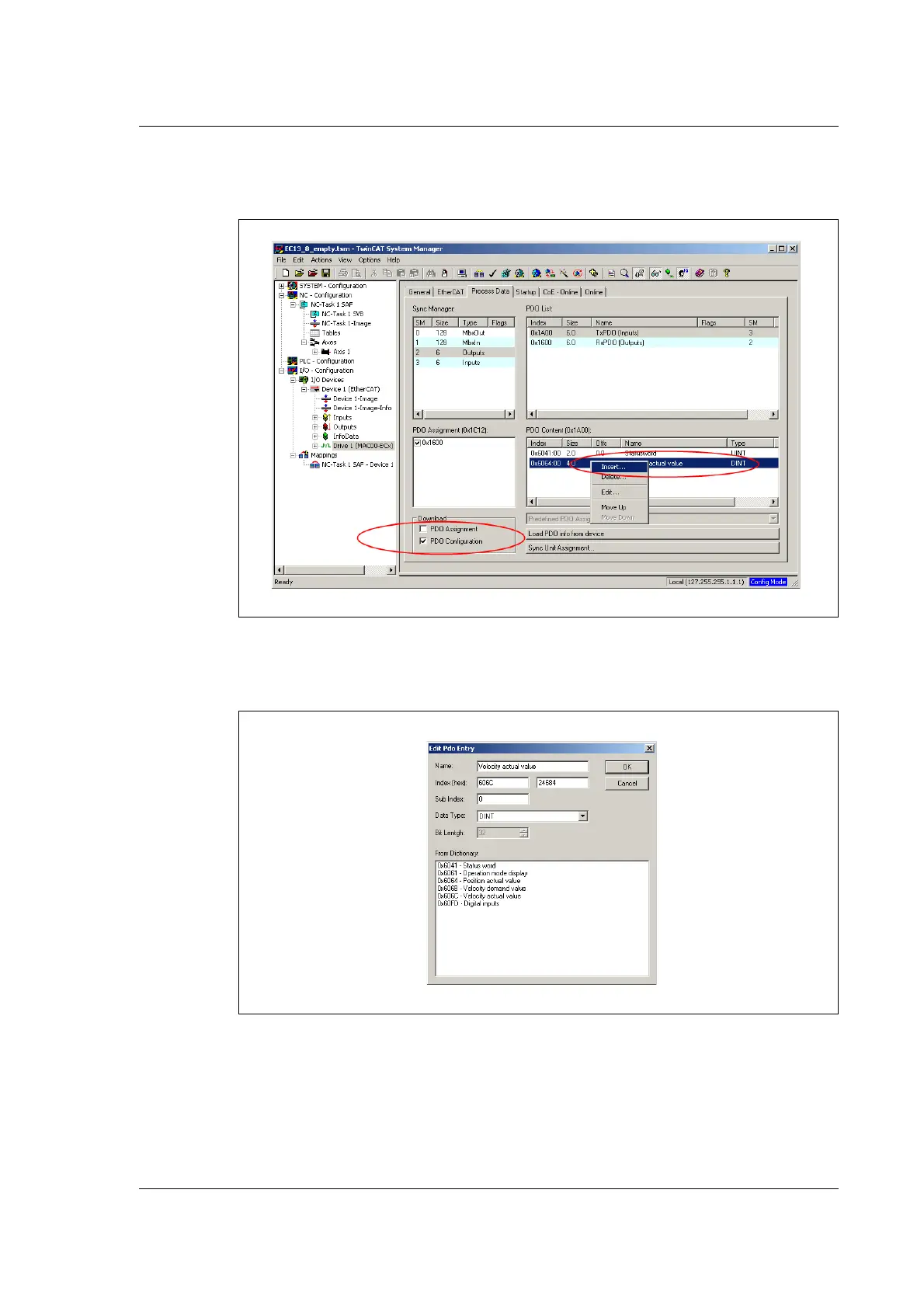

By right-clicking in the ”PDO Content” window a menu with options appear, and if
pressing ”Insert” then a new window will open showing the possible objects to insert in
the PDO.
By selecting an object and pressing “OK” then that object is inserted in the PDO and will
be transferred to the MAC00-ECx module or the MIS/MILxxxxxxECxx motor, at next
“reload devices” if the “PDO configuration” checkbox is checked.
For further information about PDO configuration please consult the appropriate manual
for the PLC system used.
