18
1. Reversible ASM (continued)

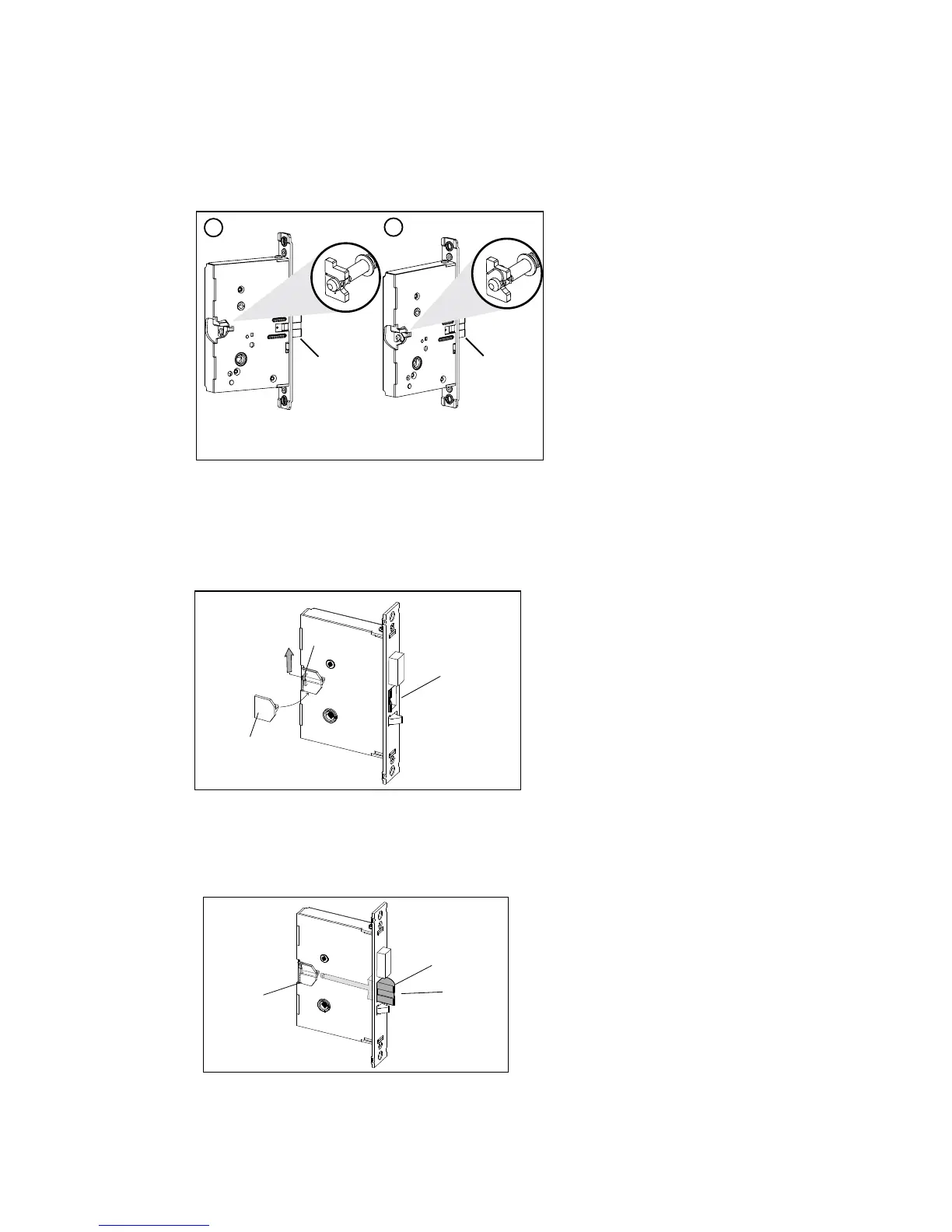

c. Push in the latch bolt (L) to the middle of its stroke, and hold it there.
(Continue Step 1 and 2)
Hold the latch (L) inside the mortise, and insert the tailpiece retaining
tool (S, part #027-510382 or #041-513342 available separately) so that
the tailpiece (T) will not drop inside the mortise case. Hold the tool and
the latch with one hand, and slide up the tailpiece using a small screwdriver.
Continue to hold tool (S). Release the latch bolt (L) and keep the anti-
friction latch (F) toward the flat side of the latch bolt so that the bolt
extends fully.
1
2
Use a small screwdriver
to lift unlock mechanism.
Unlock PositionLock Position
Push in the latchbolt to the
end of the stroke, and hold
it there.
L
L
L
T
S
(part #027-510382)
L
F
S
To Next Page
