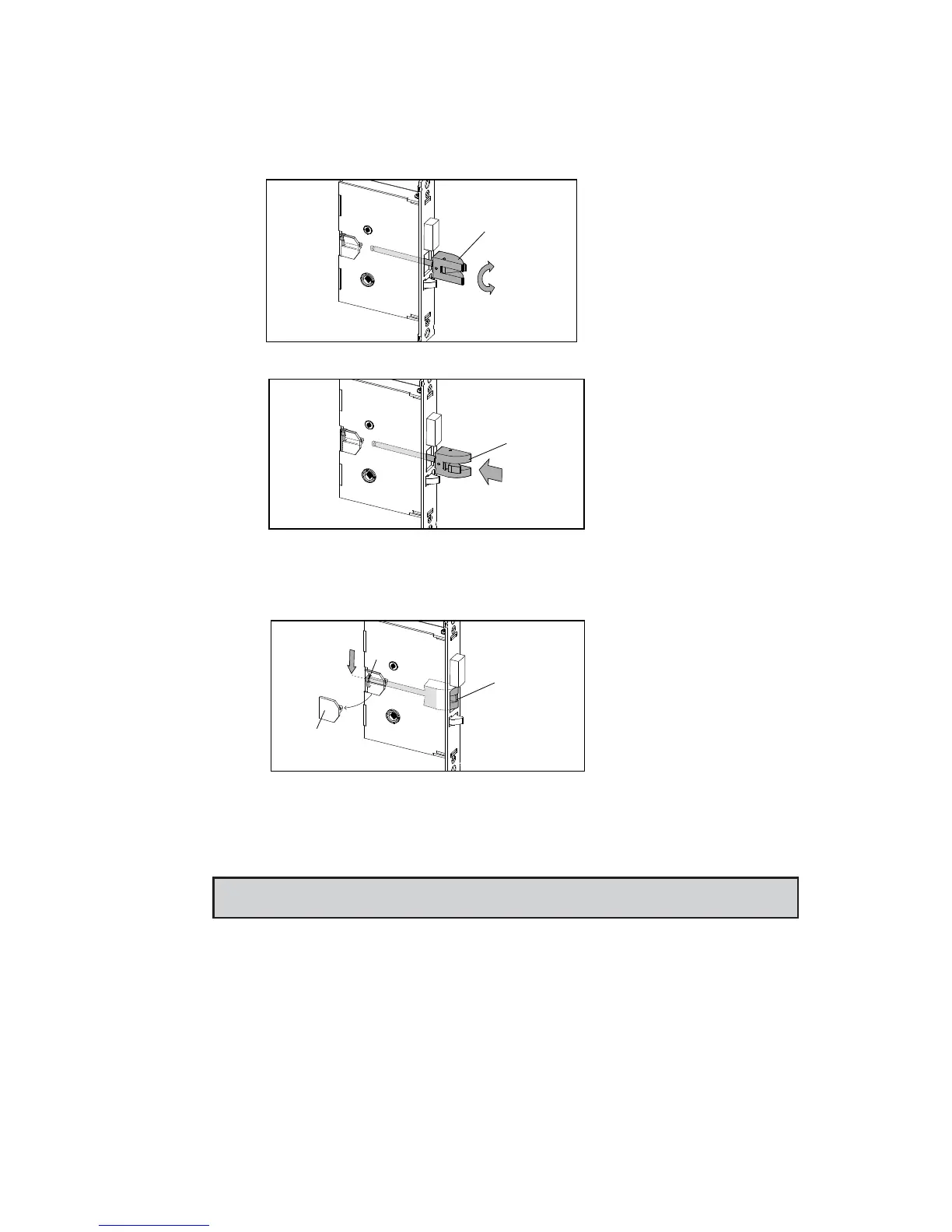

d. Pull out the latch bolt (L), until it just clears the front plate. (Note: If
you remove the bolt completely, you must turn it 90° to re-insert it.)
Rotate the latch bolt (L) 180°. Re-insert it to the end of its stroke.
Holding tool (S) in place, re-engage tailpiece (T) with latch bolt (L)
(slide tailpiece down). There may be some play required to align the
parts. Remove the tool (S).
Release the latch to the middle of the stroke and hold it there. Use a
small screwdriver to push the lock mechanism back on lock position
(see step 1 and 2) .
Note: The lock mechanism has to be horizontal on lock position
L
180°
L
L
T
S
