INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4XT • PK3191_10_14

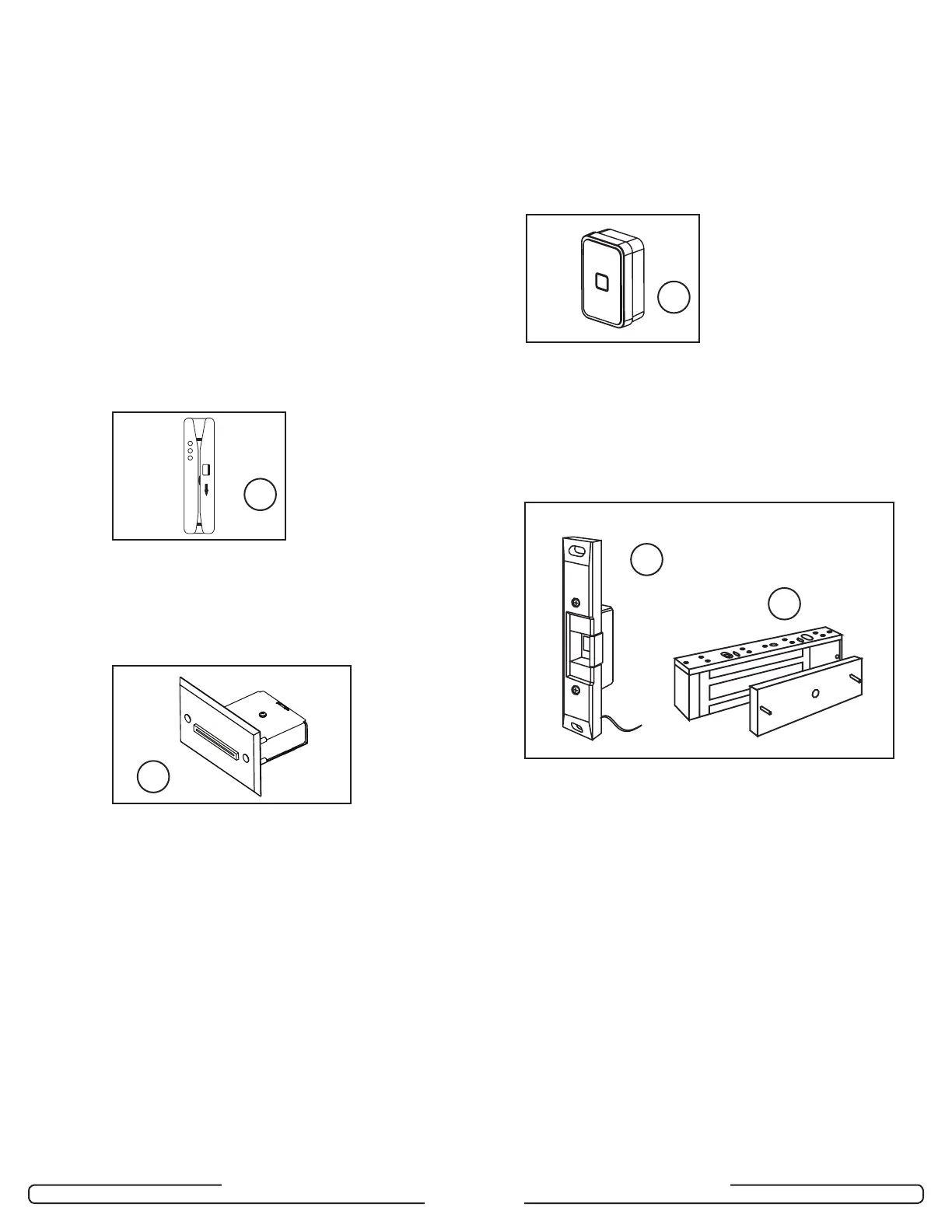

2.2.2 Card readers
Card readers (J) are used with keycards to
grant access to the controlled areas such
as pool, gym, staff rooms, etc. Various card
reader types are available depending on
the location and type of locks used on the
property.
2.2.2.1
Magnetic stripe card readers
Two types of readers are available for use
with standard magstripe-based keycards.
1- Swipe Card Reader: a small vertical swipe
unit that protrudes from the wall.
2- Insert Reader: a small wall-enclosed
horizontal card reader that comes in a satin
stainless steel finish. For use in elevator
panels only, where enough space permits
(minimum 4.5” depth required).
2.2.2.2 Contactless Card Reader
The Contactless Card Reader is a small
vertically mounted unit that protrudes from the
wall and is used with RFID-based keycards
2.2.3 Locking devices
The RAC 4XT controller PCB can provide one,
or multiple (when used with a relay expansion
board), relay outputs that can be used to
control Electric Strikes (K) or Electromagnetic
Locks (L) as shown in Figure 8.
2.2.4 Optional peripherals
The RAC 4XT can also be used with the
following types of peripherals:
• Exit Devices
• Motion Detectors
• Panic Bars
• Request to Exit (REX) button
• Remote Unlock Button
• Remote Programming Interface.
L
K
Figure 8
Figure 4
J
Figure 7
J
Figure 6
J
