9.12.10 Cos-phi constant settings
Note: In cos ϕ constant mode, the specified
power factor is permanently set by the
inverter. In doing so, the reactive power level
is set in line with Q=P*tan ϕ as a function of
the power that continuously generates the
specified power factor.
 The <Settings for> menu is opened.
1. Select <Cos-phi constant setting>.
2. Set the <Cos-phi> target value.
3. Select the excitation type from the drop-
down field.
4. Save settings with <Confirm>.
» Cos-phi constant defined.

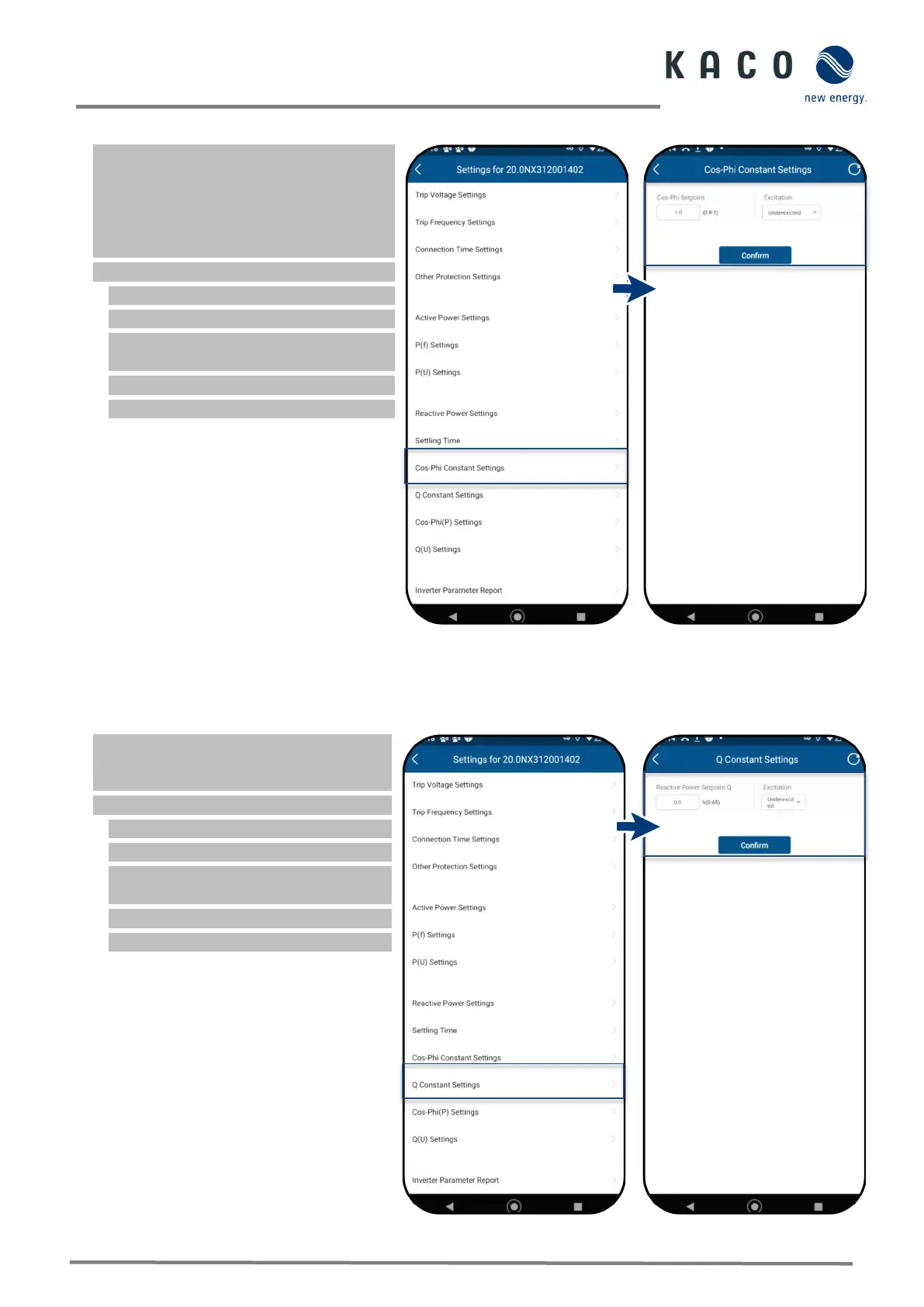

Fig. 120. Select the cos-phi constant
Fig. 121. Define the cos-phi target
value
9.12.11 Q constant settings
Note: The target value of the reactive power
can be adjusted depending on the set
maximum apparent power.
 The <Settings for> menu is opened.
1.Select <Q constant settings>.
2. Set <Q> in %.
3. Select the excitation type from the drop-
down field.
4. Save settings with <Confirm>.
» Q constant> defined.
Fig. 122. Select Q constant settings
Fig. 123. Enter reactive power target
value Q

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
