Kaco blueplanet 10.0 NX3 M2 User Manual

KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2 Page 50

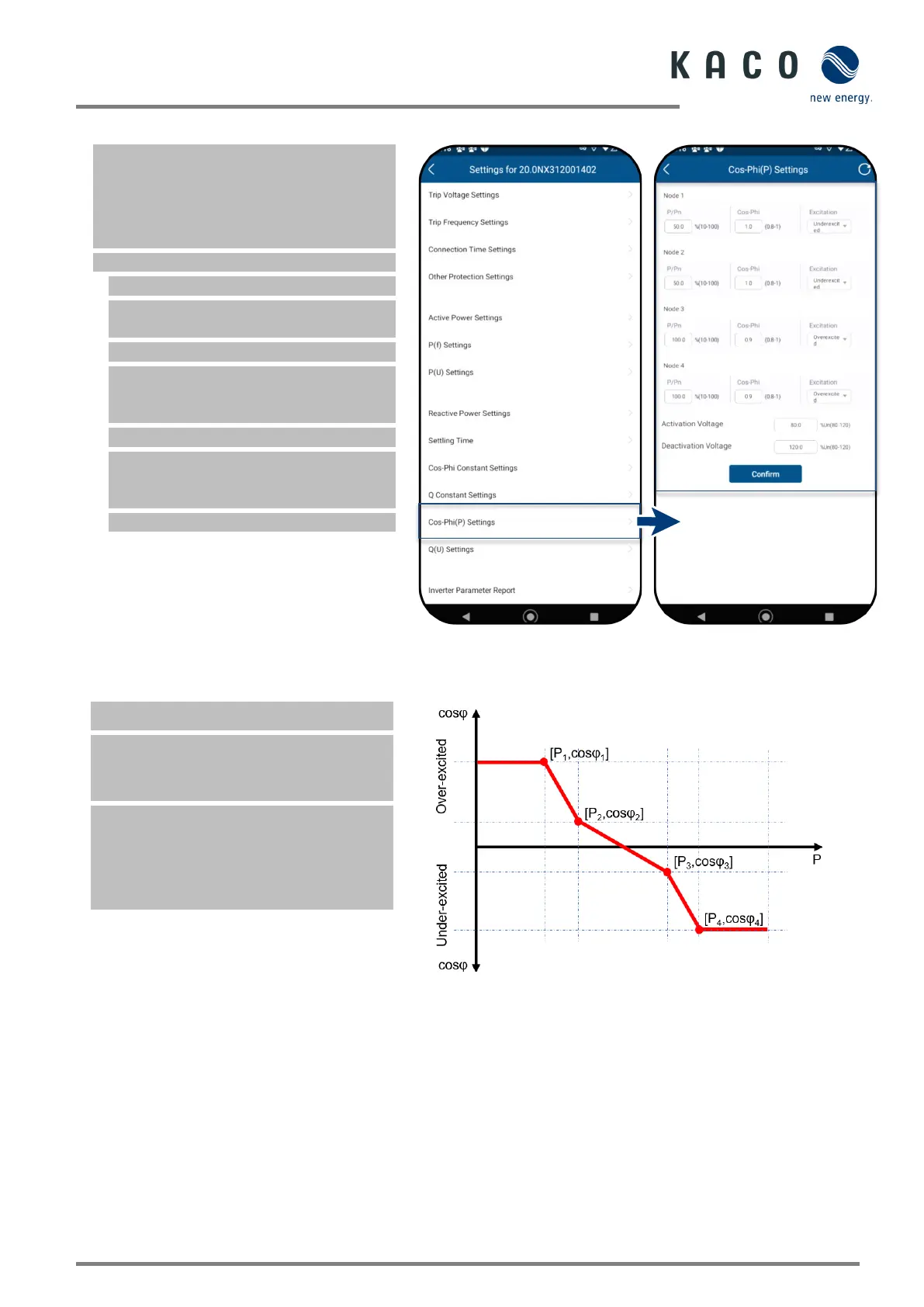

9.12.12 Cos-phi (P) settings
Note: Power-based control cos φ(P) regulates
the cos ϕ value of the power depending on
the emitted active power.
4 coordinates can be set in order to map the
P curve.

The <Settings for> menu is opened.
1. Select <Cos-phi (P) settings>.
2. Define P/Pn, cos-φ) and
excitation for each of the 4 nodes.
3. Set the <Activation voltage>.
Note: Activation threshold as a percentage
of Un corresponds to the “Lock-In”
voltage.
4. Set the <Deactivation voltage>.
Note: Deactivation threshold as a
percentage of Un corresponds to the
“Lock-Out” voltage.
» cos φ(P) defined.
Fig. 124. Select cos-phi (P) settings
Fig. 125. Set cos-phi (P) parameters
Definition:
The coordinates are the active power as a
percentage of Pn and the displacement factor
cos-φ.
A grid operator can specify two voltage
thresholds as a percentage of Pn to activate
or deactivate the function. The voltage
thresholds are normally referred to as the
“Lock-In” and the “Lock-Out” voltage.
Fig. 126. Cos-phi(P) curve

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
