9.7.2 Dynamic feed-in
 <Communication unit> menu opened.
 The connection shown in the block
diagram Fig. 58 has been established.
Note: For more information, see Chapter 9.15
on page 54.
1. Open the <Feed-in and meter settings>
menu.
2. Select meter model >> SDM630.
- Observe the note in Fig. 57!
3. Switch on <Enable meter data
processing> when the meter is connected.
4. Switch on <Enable feed-in control>
when the meter is connected.
5. At <Maximum feed-in power>, set the
maximum power which the device may
feed into the grid.
Note: This setting is only possible under 2
conditions:
1. Meter model connected to the device.
2. <Active power regulation> is enabled
in the <Settings for> menu under
<Enable/disable functions>.
6. Start the function with <Confirm>.
5. Please remedy if these conditions are
not met. See Chapter 9.12 on page 42
» Dynamic feed-in is selected.
Note: select correct type:
- SDM630DC - RS485 + Modbus RTU
- SDM630CT – user-programmable
with RS485 + S0 output

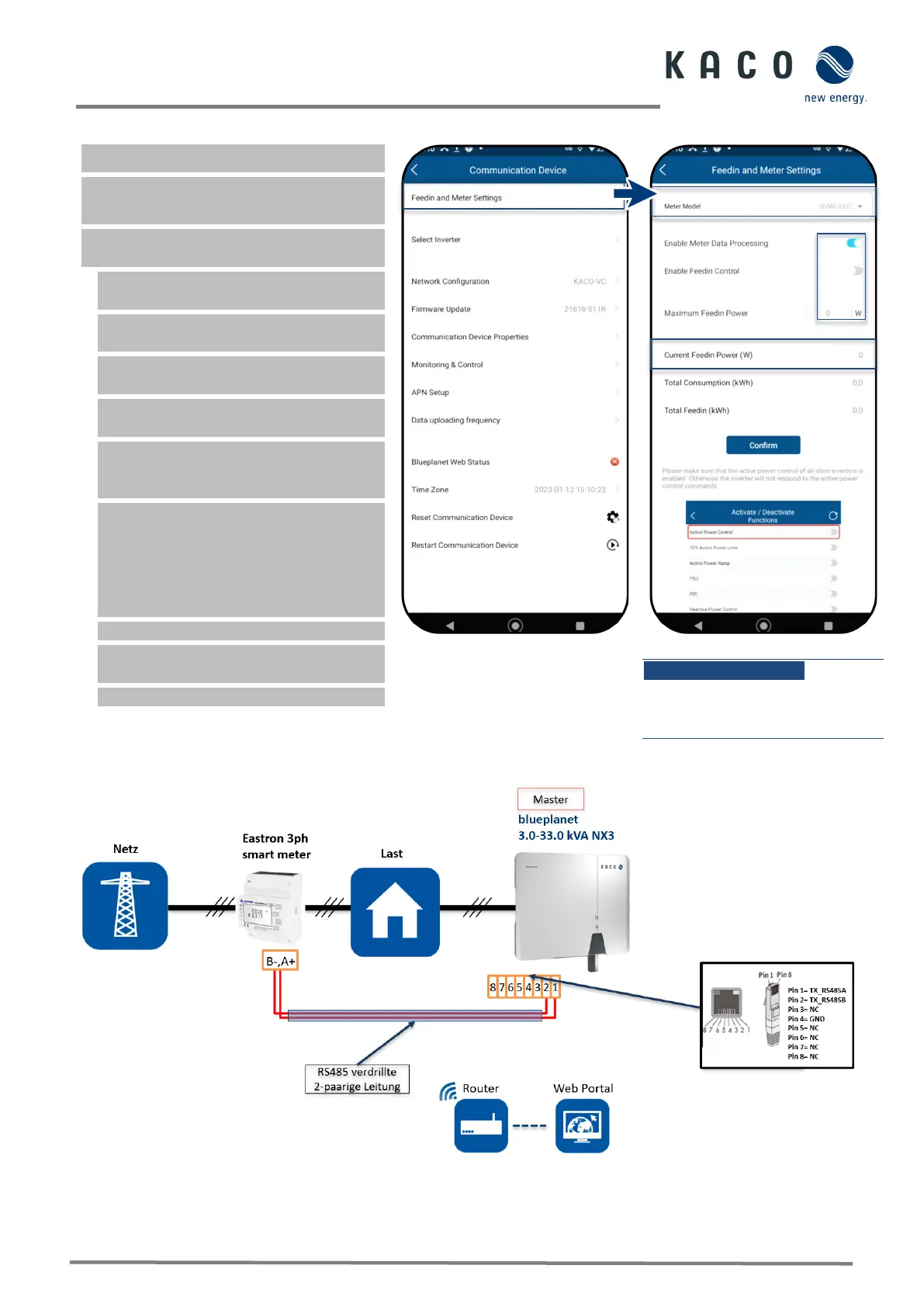

Fig. 56. Select feed-in and meter
settings
Fig. 57. Select smart meter model
and set max. feed-in power
Fig. 58. Block diagram for dynamic feed-in
