The feed-in meter must therefore be connected to the data logger so that the logger can generate the regulation
commands. If an energy meter is not connected to the data logger, the logger continuously sends a regulation command to
the inverters with a 0% feed-in maximum. This means that feed-in may not take place.

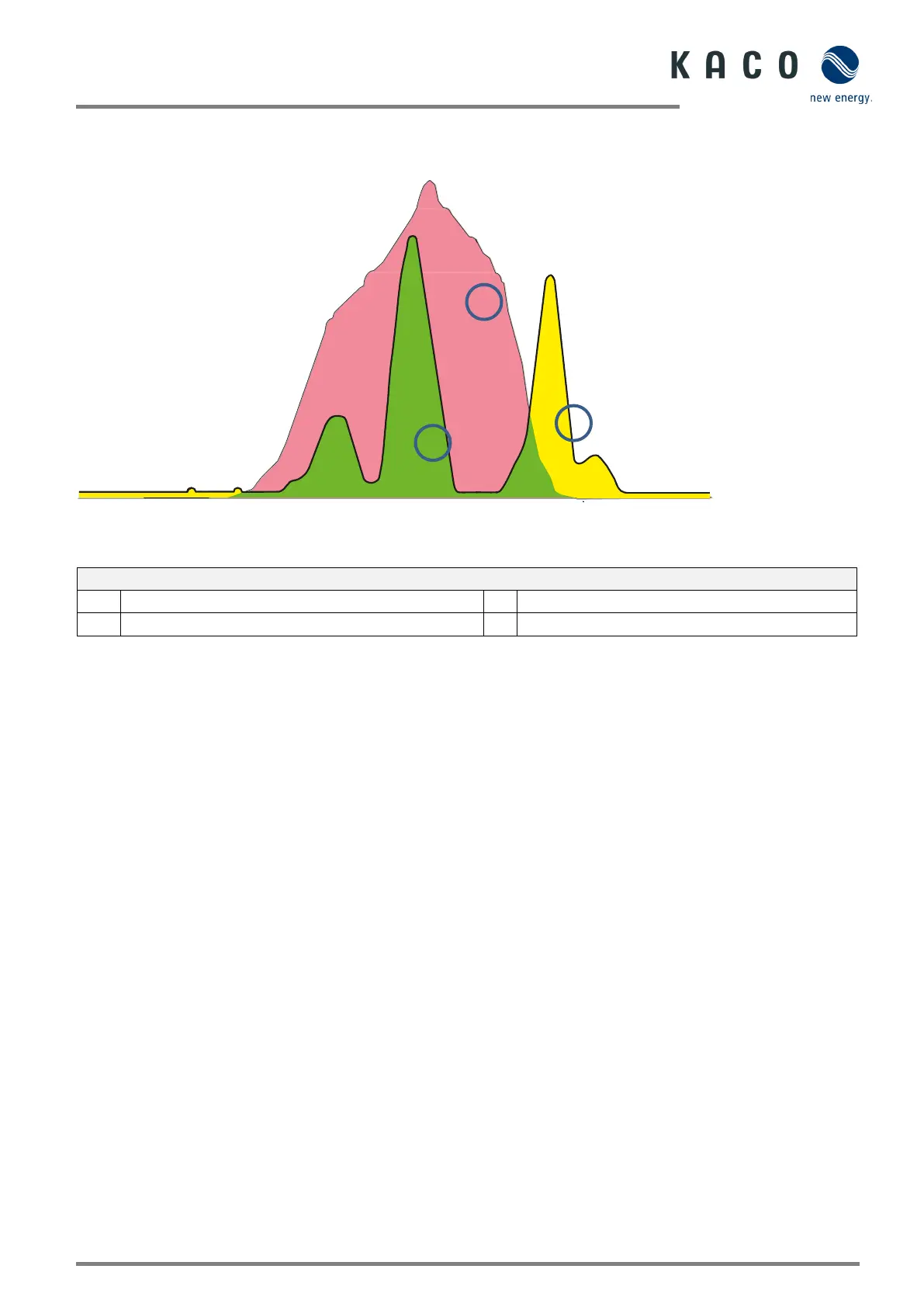

Fig. 141. Diagram of 0% regulation
Legend
1
PV power available (red area)
3
Bought-in power (yellow area)
2
Energy requirement of a detached home (green area)
By connecting up additional consumers, heating, water or energy storage systems, the self consumption and therefore the
consumption of the PV current can be increased considerably.
This function can however only be used by data logger because this has an S0 output and could therefore connect up
additional consumers via a relay circuit.
00:00
02:00
04:00
06:00 08:00
10:00
12:00
14:00 16:00 18:00 20:00 22:00 00:00
U
hrzeit [hh:mm]
1
3
2
10
9
8
7
6
5
4
3
2
1
0
Power [kW]
