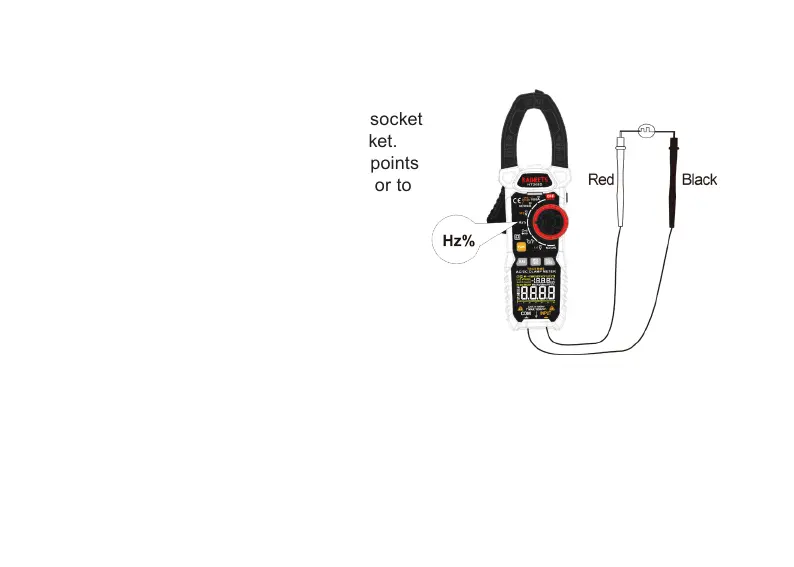

Frequency or duty cycle measurements (Hz%)
1� Turn the rotary function switch to Hz%�
2� Plug the black test lead into the COM socket
and the red test lead into the INPUT socket�
3� Connect the probes to the measuring points
(connect to the measured power supply or to
the parallel connection)�
4� Read the result on the display�
▶
In Hz% mode, Range: 0~10MHz Voltage sensitivity: 0�5~10V AC (as the frequency
increases, the voltage should increase accordingly)�
▶
In V mode, Range: 10Hz~10 kHz Voltage sensitivity: > 0�5V AC (as the frequency
increases, the voltage should increase accordingly)�
▶
In A mode, Range: 10Hz~1 kHz Current sensitivity:> 20A (as the frequency
increaes, the current should increase accordingly)�
