6 Kamstrup A/S • 55121739_A3_GB_04.2016
MULTICAL® 403
2.2 Pocket sensors

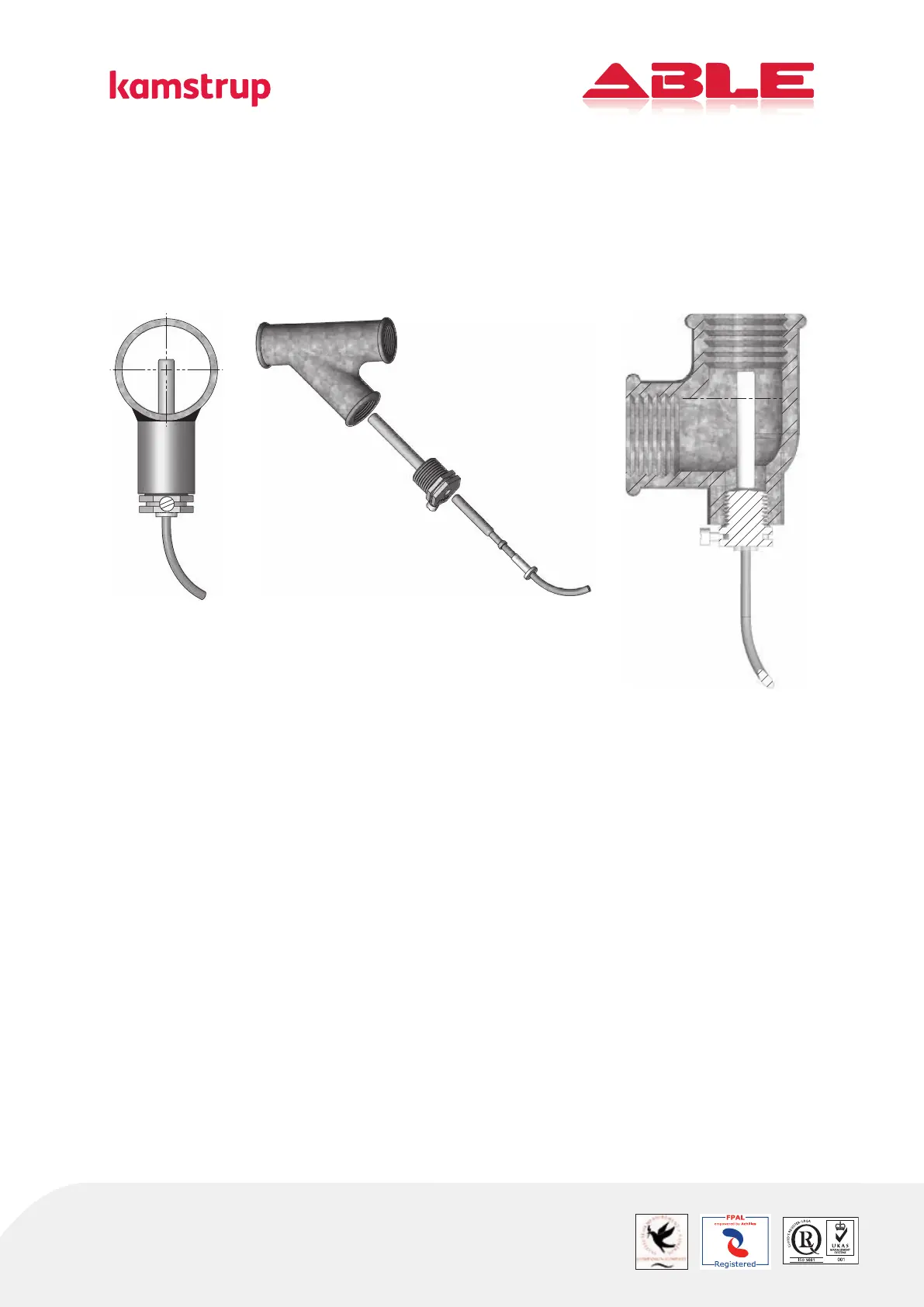

The sensor pockets can be mounted in e.g. a welding sleeve or in a 45° lateral Y-piece. The tip
of the sensor pocket must at least reach the center of the flow pipe. Push the temperature
sensors as deep as possible into the pockets. If a short response time is required, “nonhardening”
thermally conductive paste can be used. Push the plastic sleeve on the sensor cable into the
sensor pocket and secure the cable by means of the enclosed M4 sealing screw. Fasten the screw
with your fingers only. Seal the pockets using seal and locking wire.
A
A
B
B
B
B
SECTION
B-B
SCALE
1 : 1

Kamstrup MULTICAL 403 Specifications

General

Type	Ultrasonic Heat Meter
Flow Sensor	Ultrasonic
Pressure Rating	PN16
Battery Life	Up to 16 years
Approval	MID Class 2
Display	LCD
Communication	M-Bus, Wireless M-Bus, Modbus, BACnet
Power Supply	Battery
Accuracy	Class 2
Protection Class	IP54
Housing Material	Composite
Flow Rate Range	0.6 m3/h to 15 m3/h
