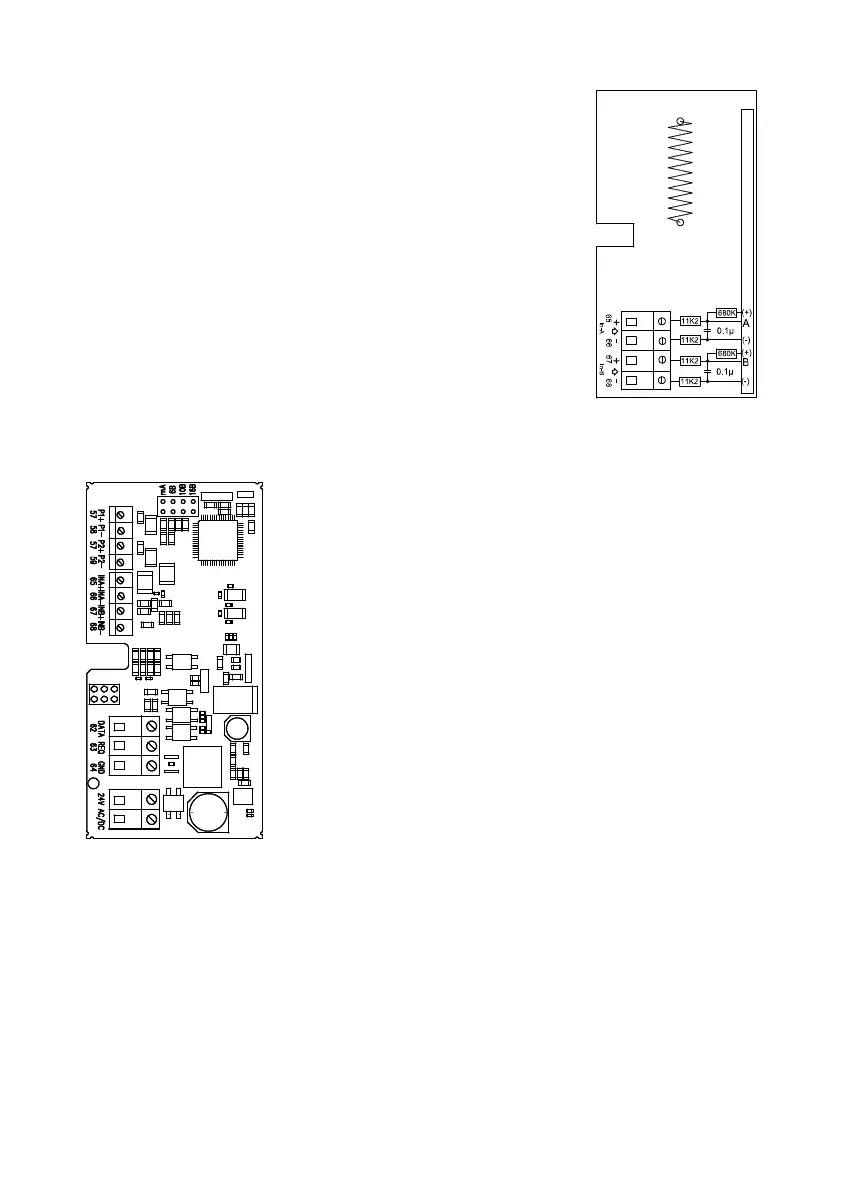

9.3 Radio + pulse inputs, type 67-00-21/25/26
The radio module is used for wireless communication via a
license-free radio frequency and is available for internal or
external antenna.
For further information on radio please refer to
Technical Description for Radio (5512-013).
The pulse inputs in this module are identical with
the ones described earlier.
NB! Type 67-00-21 includes radio and router funtions.
The RadioRouter module (67-00-21) must be used with
mains supply.
9.4 Prog. data logger + RTC + 4…20 mA inputs + pulse inputs (67-00-22)
The module has connection possibility for two pressure
transmitters on terminals 57, 58 and 59 and can be
adjusted for current reading or pressure ranges of 6, 10 or
16 bar.
The module is prepared for remote reading, data from
meter/module being transferred to the system software
via the connected external GSM/GPRS modem on
terminals 62, 63 and 64.
Furthermore, the module has two extra pulse inputs, VA
and VB.
The module must always be powered by 24 VAC.
