7
4.1 Mounting of ULTRAFLOW® ≤ DN125
4.2 Mounting of ULTRAFLOW® 54 ≥ DN150
See Installation Guide No. 5512-887.
4.3 Mounting of ULTRAFLOW® 65 ≥ DN150
With ULTRAFLOW® ³ DN150 (150 m
3
/h) the box containing electronics must be
placed on the top of the meter when it is installed horizontally.
ULTRAFLOW® may be turned up to ±45° in relation to the pipe axis.
90° 90°

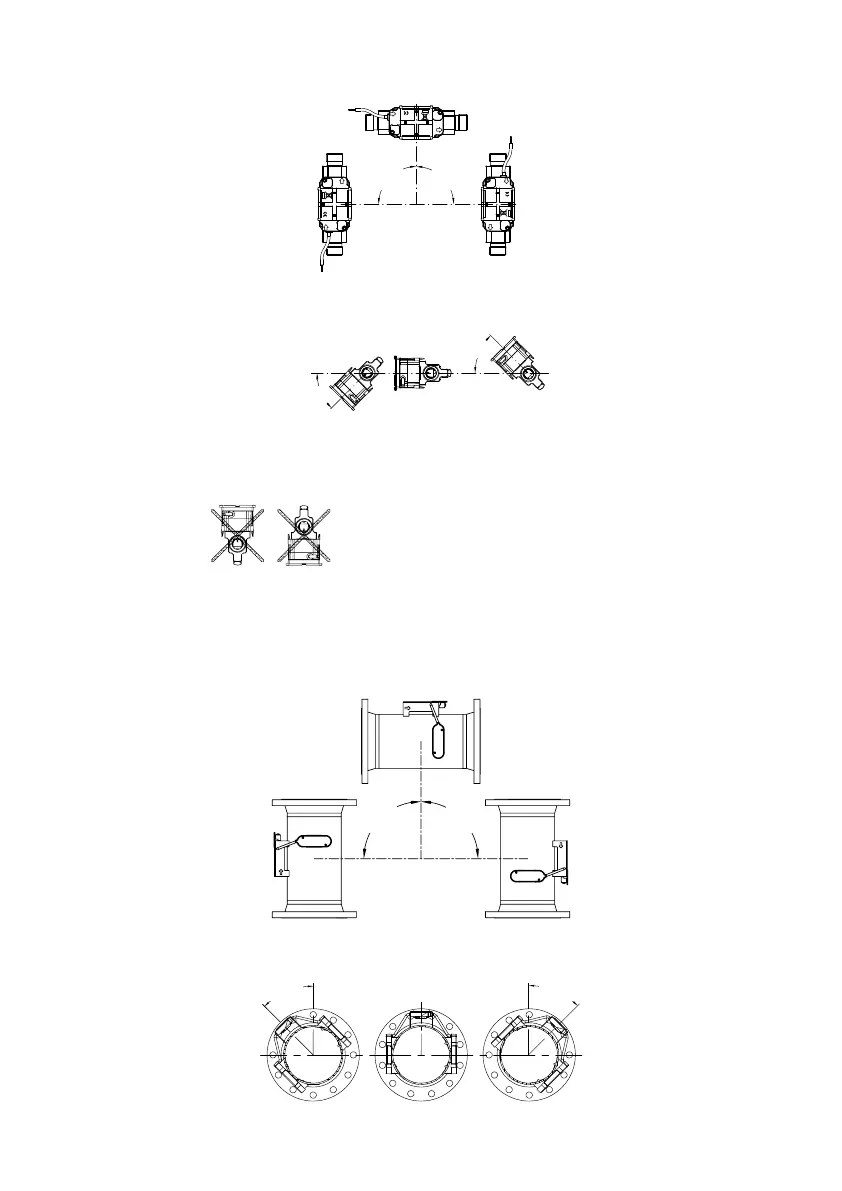

ULTRAFLOW® must be mounted vertically,
horizontally or at any angle in between.
Electronics/plastic case must
be placed on the side (when
installed horizontally).
Max. 45°
Max. 45°
ULTRAFLOW® may be turned up to
±45° in relation to the pipe axis.
The ULTRAFLOW® housing must not be
mounted facing upwards or downwards.
90° 90°
Max. 45°
Max. 45°
