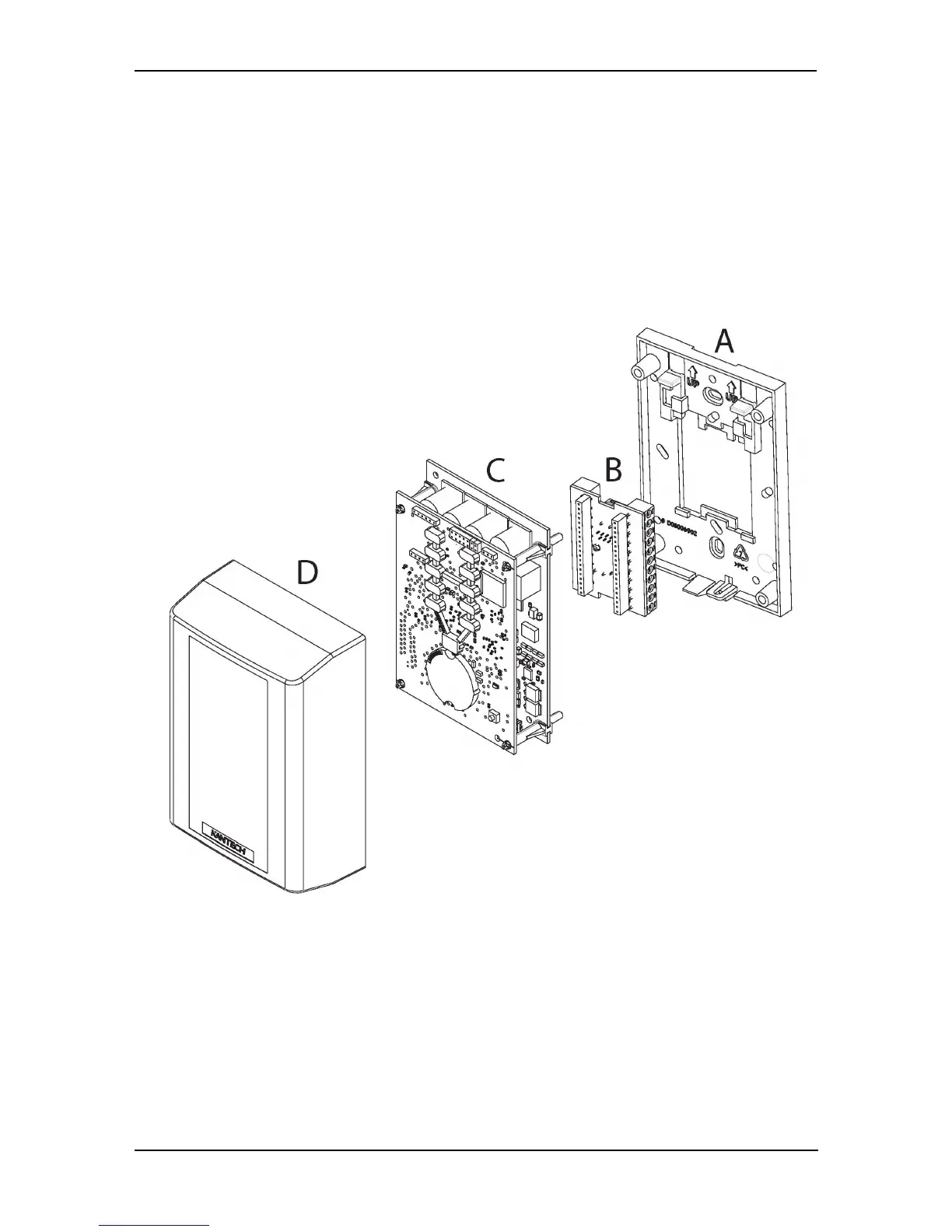

KT-1 Installation
1 - Complete each of the required connections on the small board (B) which
mounts on the wall-plate.
2 - Install the wall-plate (A) to the wall using the two Phillips screws provided.
3 - Clip board (B) on the wall plate (A).
4 - Mount the main boards (C) into board (B)
5 - Mount the cover (D) and secure with one of the Phillips screws provided.
