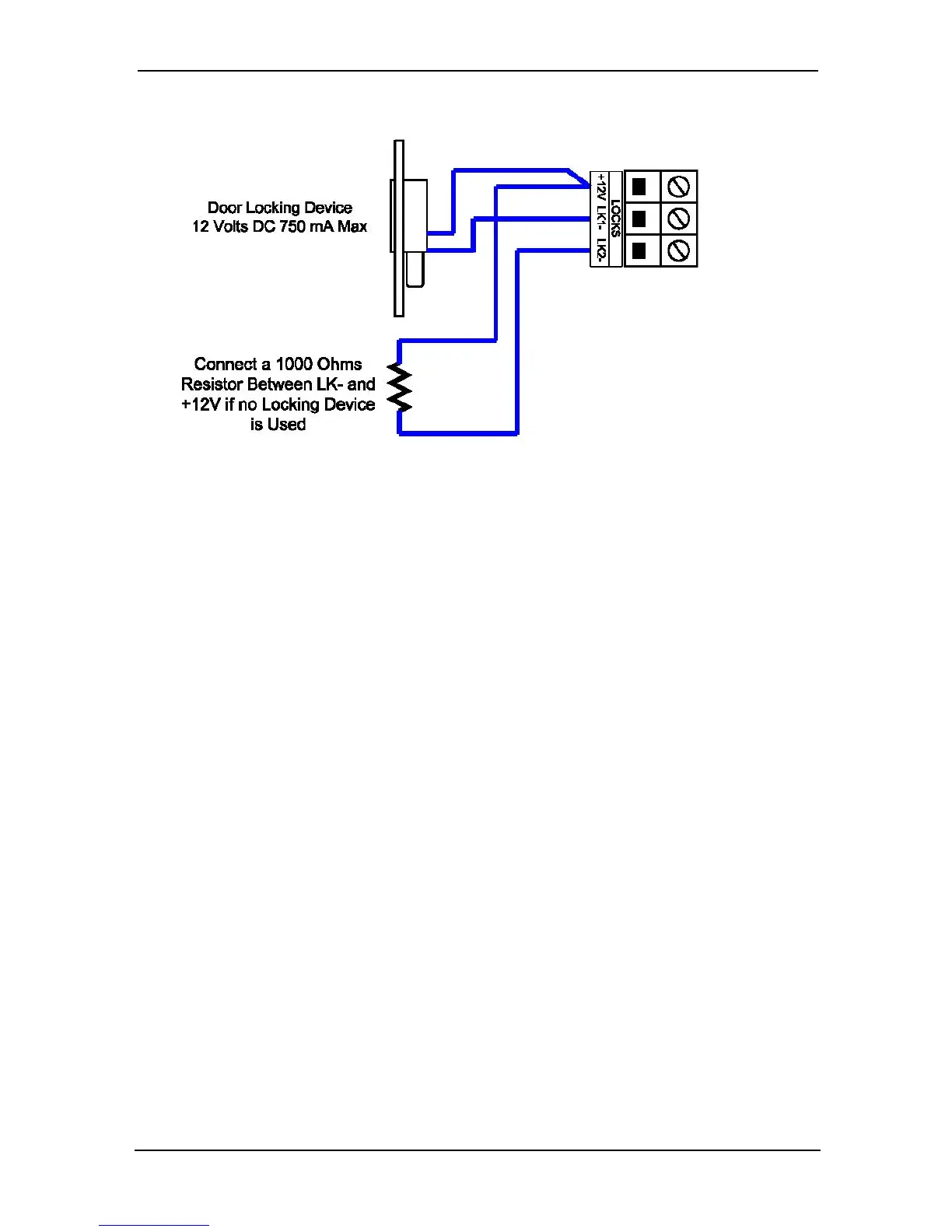

Lock Set-up for KT-1-PCB
Warning: Controlled door locks may be governed by regulatory bodies and always
be installed according to local regulations. In most instances, there are strict lim-
itations to installing fail-secure devices and fail-safe locking devices such as mag-
netic locks or other similar locking devices on doors used as emergency exits.
Hooking Up Inputs
Connect devices to inputs 1 to 4. Resistors for all inputs are 5.6K ohm (if selected).
The KT-1 has an on-board capability of monitoring 4 input points. Each onboard
input is supervised with or without end-of-line resistors (5.6K ohm). The maximum
distance of one line is 600 m (2,000 ft) with AWG #22 in a single or double EOL con-
figuration.
Note: Onboard Inputs can be defined with: none, single or double EOL (End-of-
Line) resistor(s) according to your EntraPass software settings. For UL listed install-
ations use of supervised EOLresistors is required.
Inputs 1-2 are automatically reserved for the controlled door. The door contact is
assigned to input 1 and the associated request-to-exit detector as input 2. There is
no obligation to follow these rules but this standard convention facilitates servicing.
© Copyright, 2016, all rights reserved
31
