Instructions for use ELECTROmatic M/C and PM/PC
3 Description of the product | 3.2 Scope of delivery
20 / 78

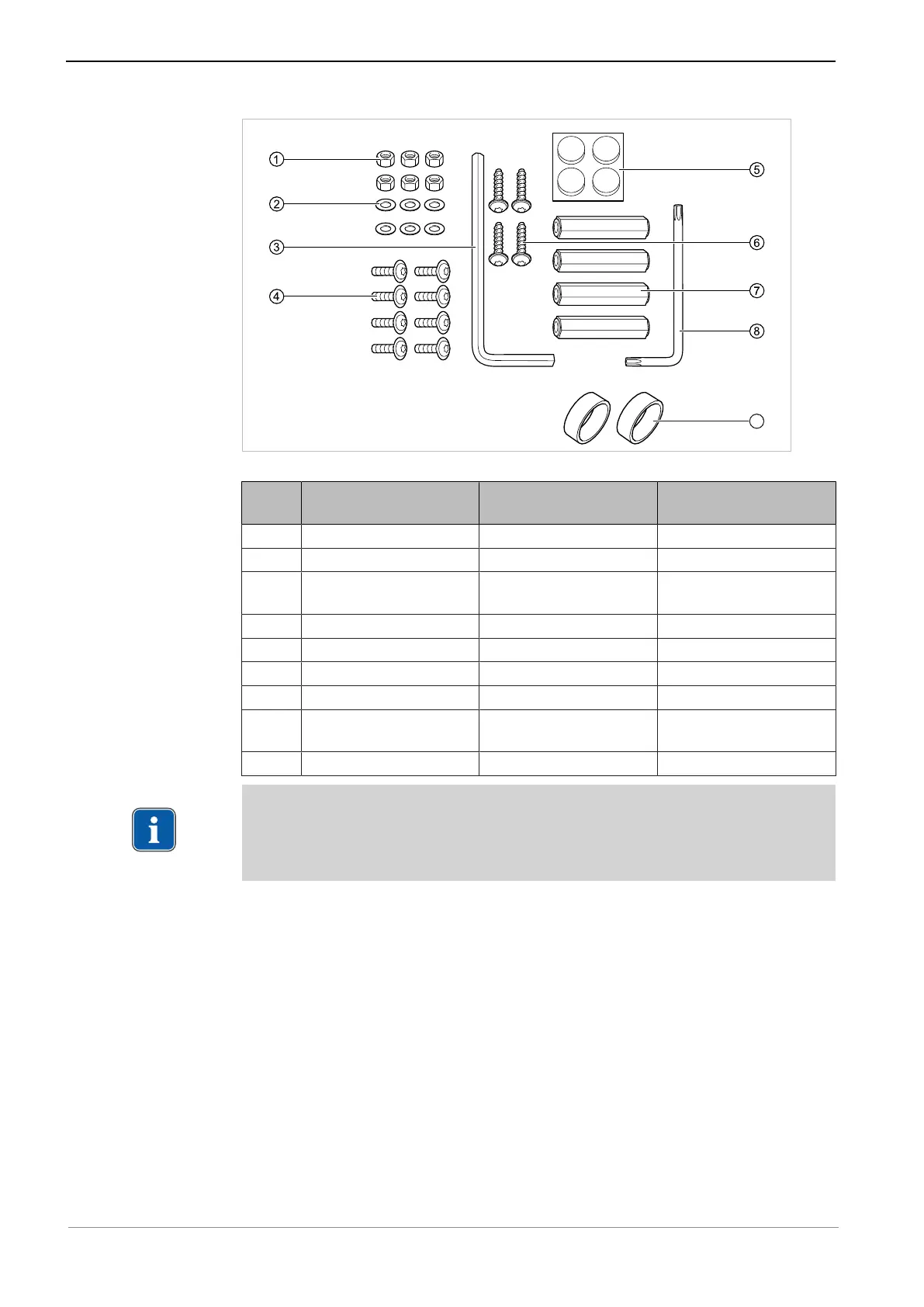

ELECTROmatic installation set (Mat. no. 1.012.1883)
Pos.
no.
Mat.No. Description Number
① 0.251.5804 Hexagonal nuts M4 6
② 0.242.4012 Washers 6
③ 1.004.1568 Offset screwdriver
SW5
1
④ 1.012.0213 Screws M4x12 8
⑤ 0.220.0441 Pad 4
⑥ 1.012.0184 Screws 4x14 4
⑦ 1.012.1999 Spacer bolt, 35 mm 4
⑧ 1.012.1853 Offset screwdriver Torx
T20
1
⑨ 1.007.9736 Filter insert 2
Note
The pads enclosed in the installation set can be attached to the underside of
the device, if needed. The purpose of the pads is to prevent the device from
slipping.
See also:
2 4.6 Installation position 3: Mount on a holder or on the backside of a holder,
Page 37
