3 Description of the product | 3.3 ELECTROmatic – Versions
3.3 ELECTROmatic – Versions

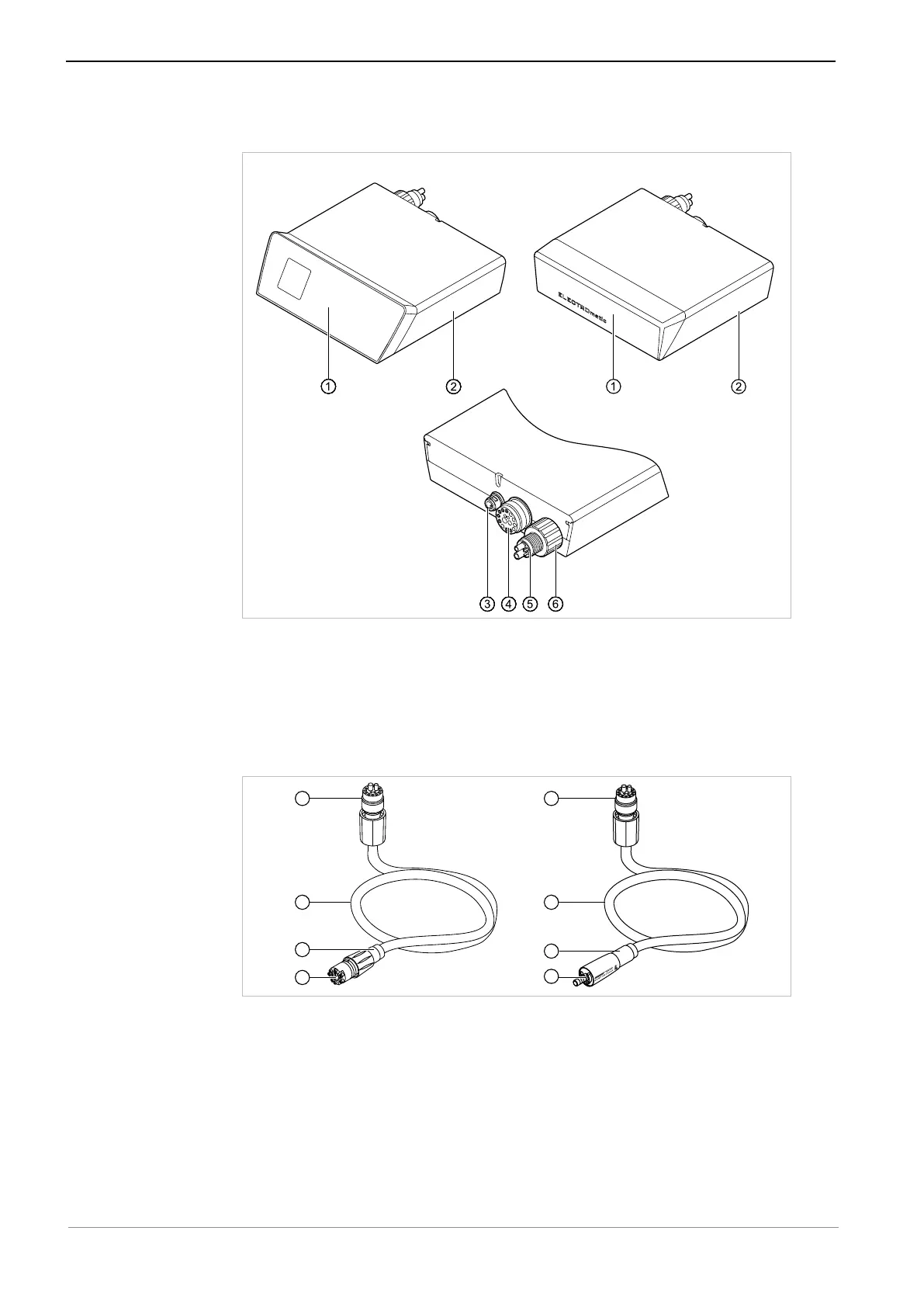

ELECTROmatic M/CELECTROmatic PM/PC
ELECTROmatic Front and rear of the device
① Control panel/cover panel ④ Motor hose connector
② Control unit ⑤ 4-hole standard connector
③ Power supply connector ⑥ Water filter, replaceable
3.4 Motor tubing
2
1
3
2
1
3
4
5
KL motor hose/COMFORTbase
① Connection ELECTROmatic ④ Connection for motor
② KL motor hose 1750/2200 /
COMFORTbase 1750/2200
⑤ Connection for COMFORTdrive
③ Spray control
