Instructions for use ELECTROmatic M/C and PM/PC
4 Installation | 4.7 Installation position 4: Mount control panel as remote control (PM/PC only)
42 / 78
Mount the control unit.
See also:
2 4.4 Install below the dentist element, a holder or a cabinet, Page 33

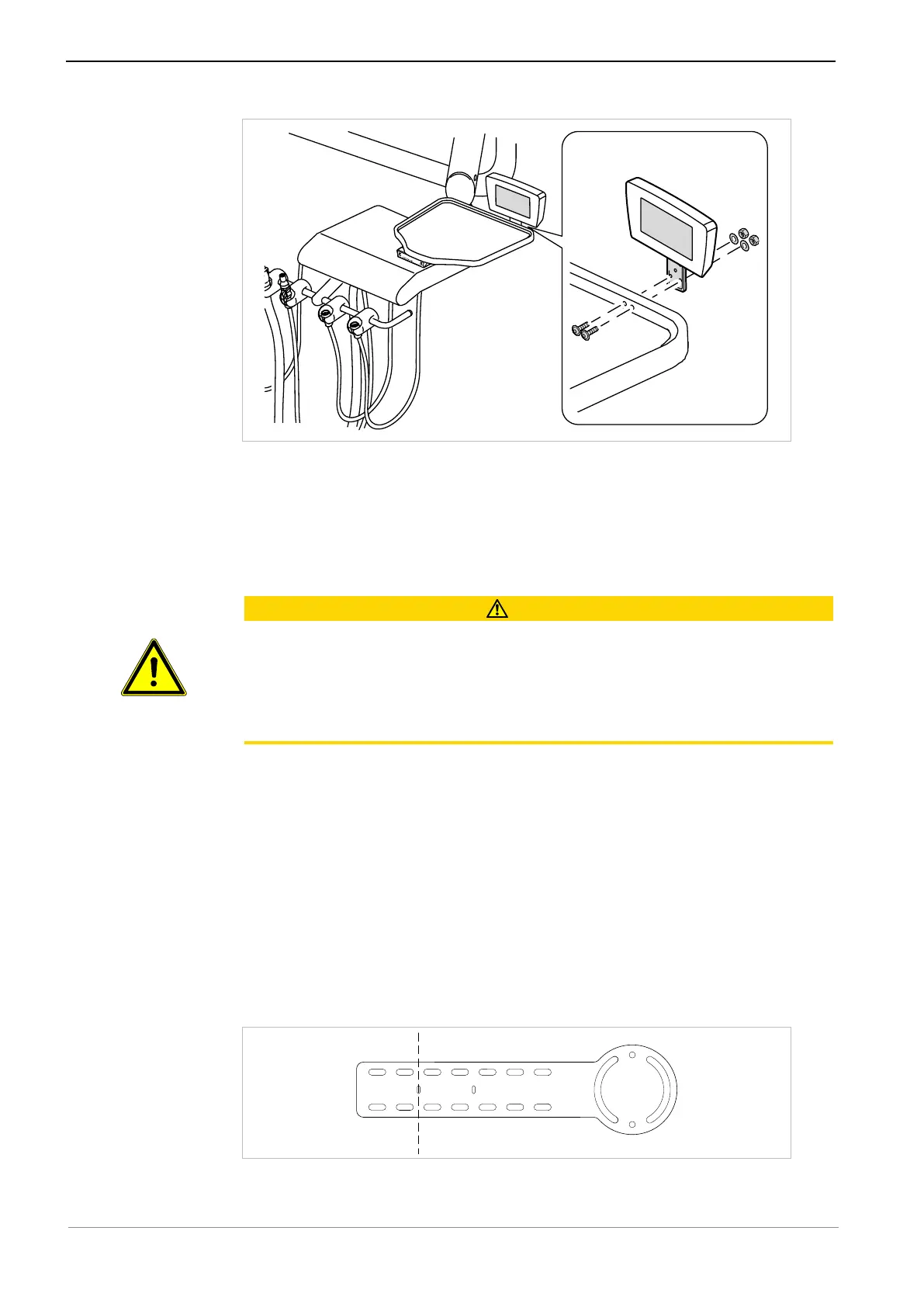

4.7.3 Mount control panel on the side of a holder
CAUTION
Damage to the dentist element.
Installations involving an intervention on the treatment unit might damage
components, which can interfere with the safe function and cause injury.
Have installations involving an intervention on the treatment unit per-
formed by trained expert personnel only.
Have the treatment unit subjected to a safety check after installation.
Assembly variant a)
The following parts from the scope of delivery and the installation set are
needed:
1x Mounting plate
1x Mounting bracket
1x Cover panel
4x Screws M4x12 with self-locking nuts
4x Washers
2x Plastic screws for fastening to the mounting plate
Shorten the mounting plate with a suitable tool, if needed.
Select the position of the mounting plate. If possible, use existing screws or
perforations as screw positions.
