Instructions for use ELECTROmatic M/C and PM/PC
4 Installation | 4.7 Installation position 4: Mount control panel as remote control (PM/PC only)

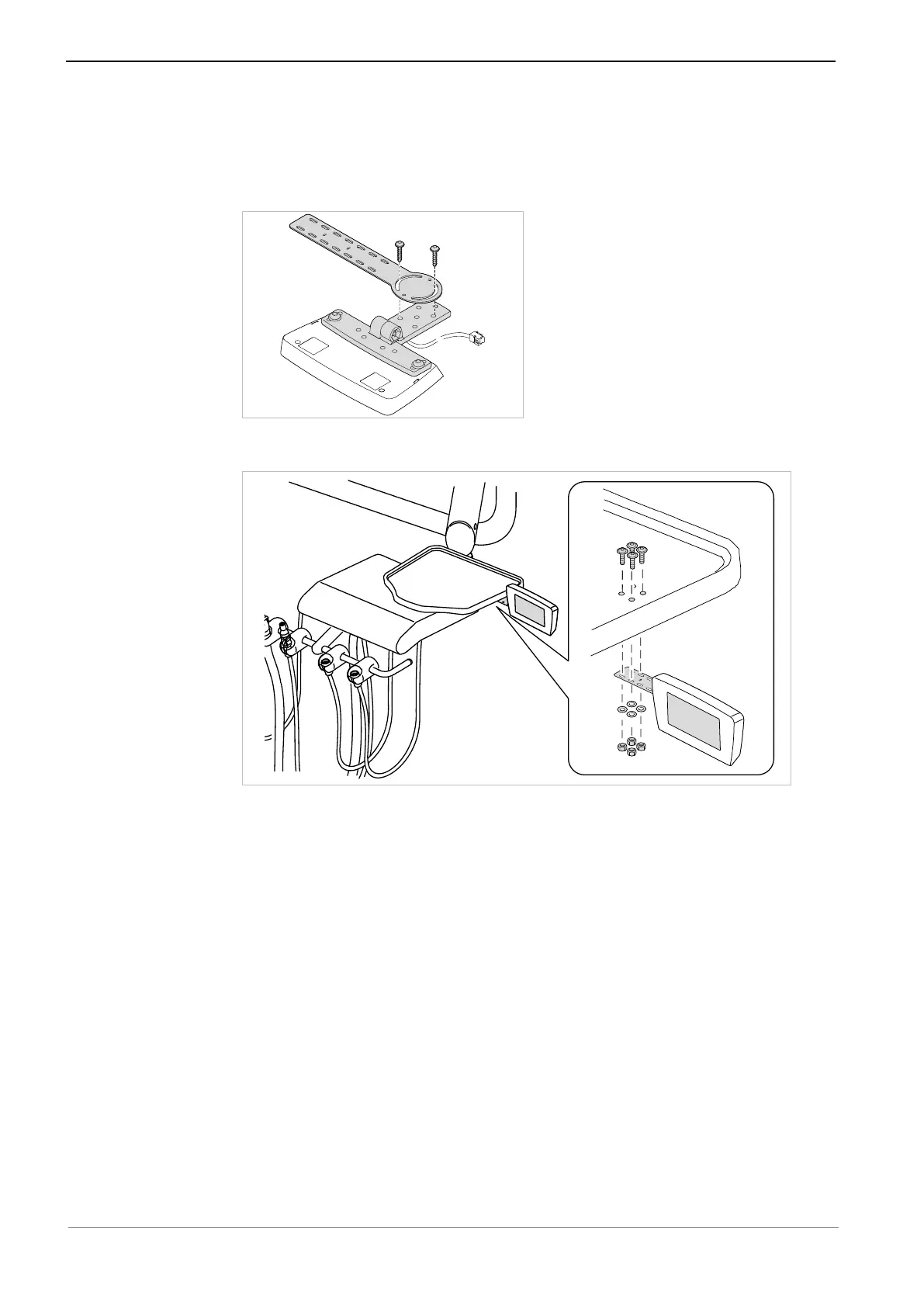

▶ Mark the fixing points and drill the holes on the holder.
▶ Screw the mounting bracket with control panel to the round side of the
mounting plate using the plastic screws ⑥ tightening the screws only
lightly.
▶ Use the 4 screws ④ and the washers ② to screw the mounting plate to the
holder and secure it with the nuts ①.
▶ Align the ELECTROmatic in its final ergonomic position and screw it down
such as to be hand-tightened.
Assembly variant b)
The following parts from the scope of delivery and the installation set are
needed:
▪ 1x Mounting bracket
▪ 1x Cover panel
▪ 2x Screws M4x12 ④ with self-locking nuts ①
▪ 2x Washers ②
▶ Mark the fixing points on the holder and drill the holes.
▶ Use the 2 screws ④ and washers ② to screw the mounting bracket with
control panel to the holder in upright orientation and secure it with the nuts
①.
▶ Align the ELECTROmatic in its final ergonomic position and screw it down
such as to be hand-tightened.
43 / 78
