NOTE
The codes shown in bold are the default settings.

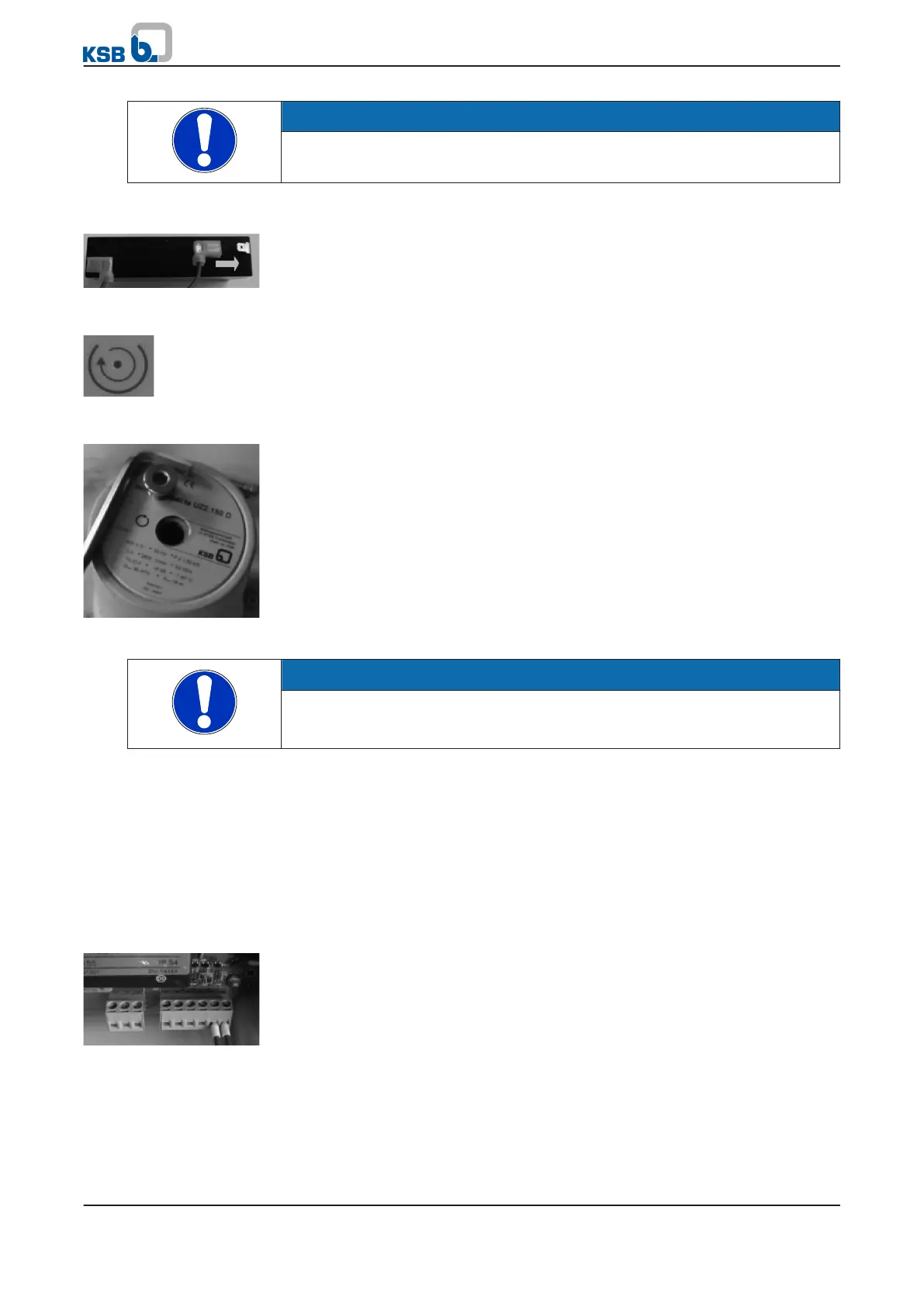

Connecting the rechargeable battery
To enable the mains-independent alert, connect the rechargeable battery in the
control unit.
Checking the direction of rotation
Always perform the two steps in the sequence given below!
▪ Rotary field of mains connection:
The "rotary field" lamp must light up green, otherwise the rotary field must be
corrected by interchanging two phases at the mains connection.
▪ Direction of rotation of the pump:
Check the direction of rotation of the pump at the screw plug; correct the
direction of rotation by interchanging two phases at the pump connection, if
necessary.
The correct direction of rotation is indicated on the name plate.
Function and leak testing
NOTE
A sensor fault may be displayed when the lifting unit has not been filled yet. It will
disappear after the lifting unit has been filled.
The manual-0-automatic switch must be set to "Automatic".
Test-run the lifting unit for several fill and pump-off cycles and check the proper
function and leak-free operation of the lifting unit, using the checklist provided.
(⇨ Section 8.9 Page 50)
6.3.1.1 Using additional functions
6.3.1.1.1 External alarm input
An external alarm input can be connected to the control unit. If an alarm is active, a
high water alert is output.
Fig. 11: Connecting the
rechargeable battery
Fig. 12: Rotary field of
mains connection
Fig. 13: Direction of
rotation of the pump
Functional test
Fig. 14: Ext. alarm
connection
6 Commissioning/Start-up/Shutdown
mini-Compacta
29 of 86
