Part No. Part No. Description Part No. Part No. Description
321.01/.02 Deep groove ball bearing
550.03/.08 Support disc
821 Rotor core pack
550.04 Disc
932.01 Circlip
903.01/.02 Screw plug
99-15
Lubricating oil
914.01 Hex. socket head cap screw
914.04 Hex. socket head cap screw
920.02 Hex. nut
932.01/.02 Circlip
B5
Vent
10.1.3 mini-Compacta U60, U100 - Collecting tank

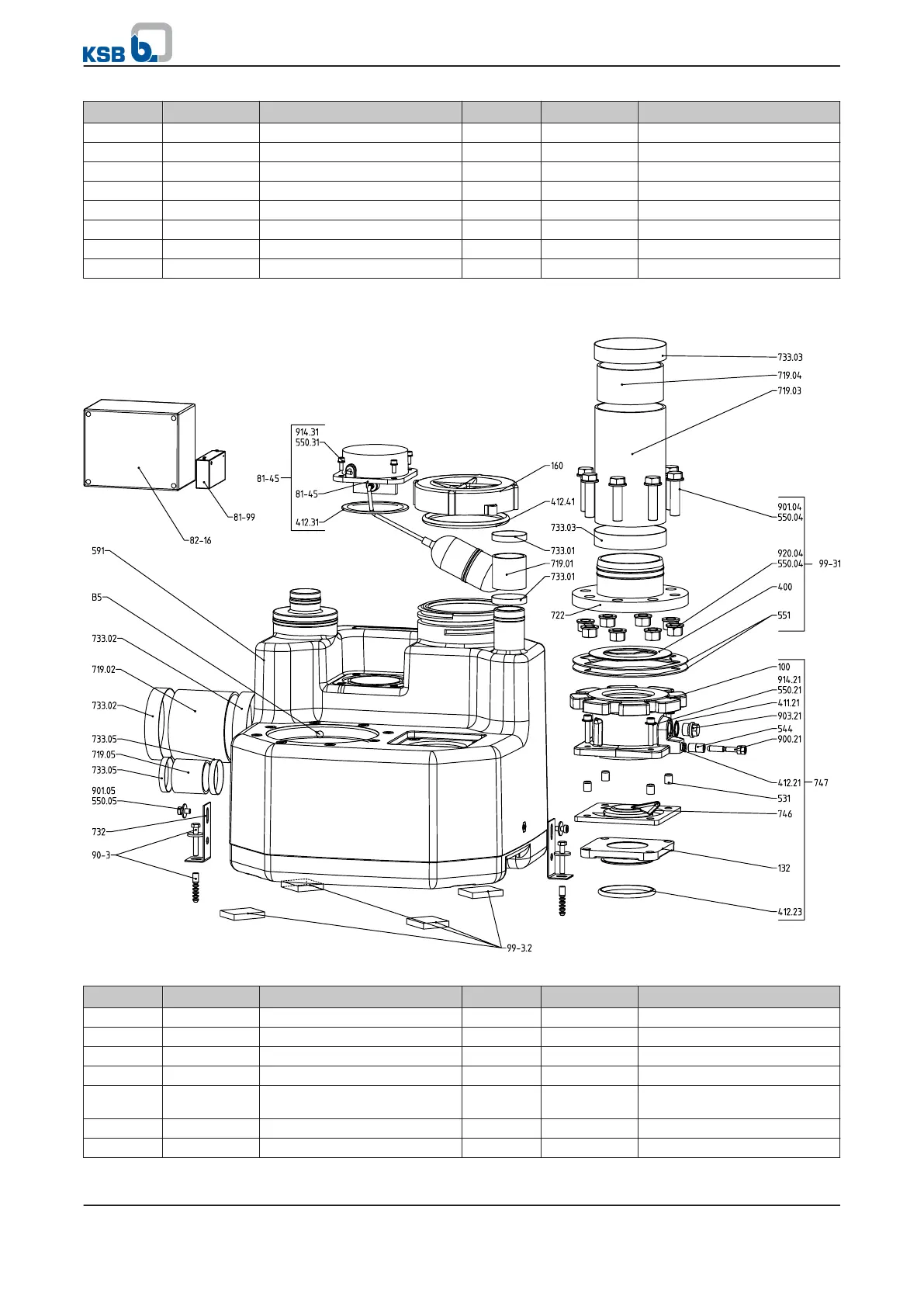

Fig. 36: Exploded view of mini-Compacta U60, U100 - Collecting tank
Part No. Part No. Description Part No. Part No. Description
160
Cover 81-45
Level sensor
400
Gasket
412.31 O-ring
412.31
O-ring
550.31 Disc
412.41
O-ring
81-45 Level sensor
550.05
Disc
914.31 Hexagon socket head cap
screw
551
Spacer disc 81-99
Rechargeable battery
591
Tank 82-16
Control unit
10 Related Documents
mini-Compacta
57 of 86
