10.3.3 mini-Compacta UZS150
10.3.4 Dimensions of shut-off elements
10.3.4.1 Inlet line U60, U100, US100
JL
1
DN 100/DN 150
PVC
1
DN 100/DN 150

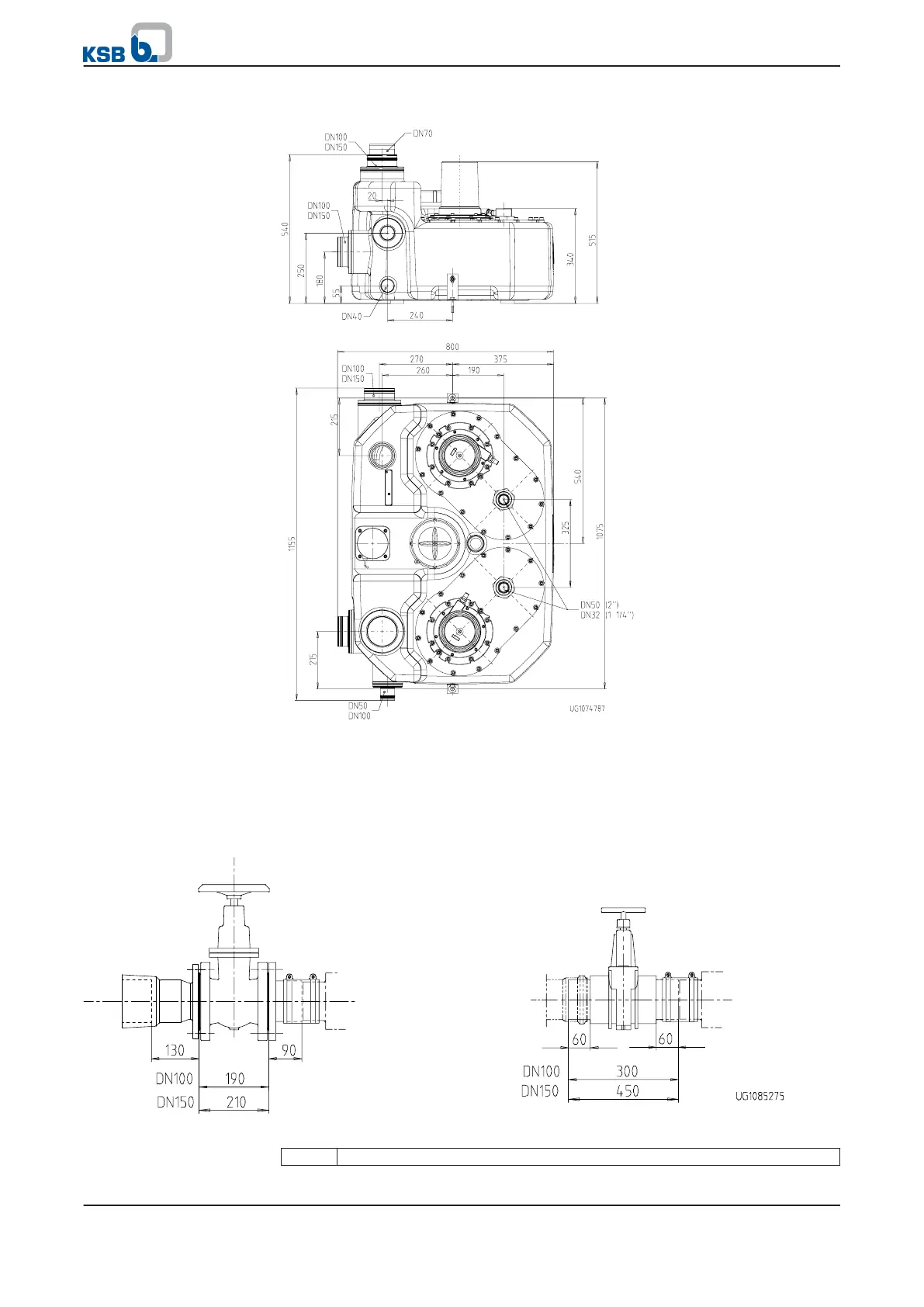

Fig. 46: Dimensions of inlet line with cast iron and PVC gate valve, mini-Compacta U60, U100, US100
1 Tank connection
