10.3.4.2 Inlet line UZ150, UZS150
1
DN 100/DN 150
1
DN 100/DN 150
JL
PVC

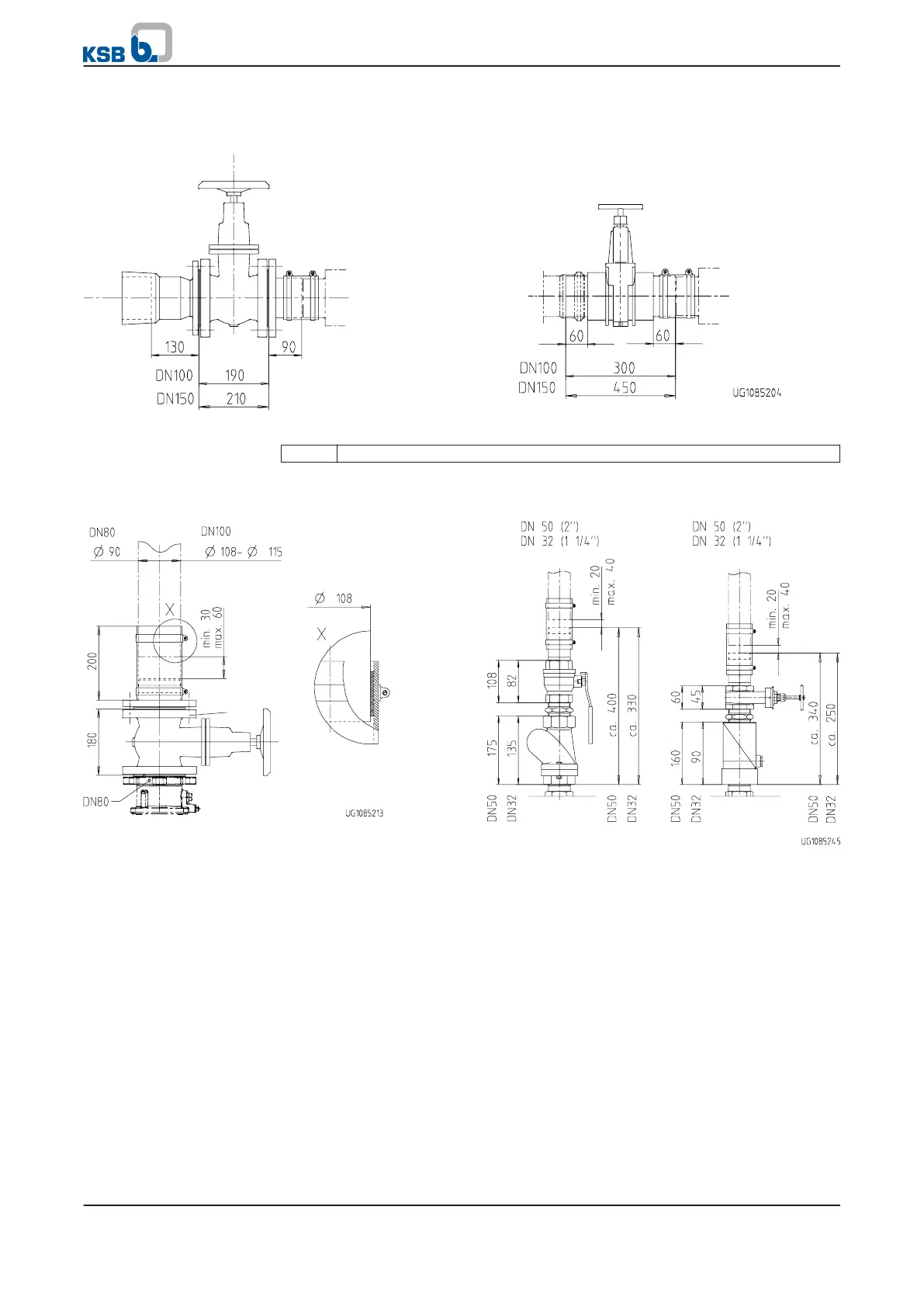

Fig. 47: Dimensions of inlet line with cast iron and PVC gate valve, mini-Compacta UZ150, UZS150
1 Tank connection
10.3.4.3 Discharge line U60, U100, US100
a)
b)
Fig. 48: Dimensions of the discharge line a) mini-Compacta U60, U100 and b) US100
