KEB COMBIVERT R6-N User Manual

Network components
© KEB, 2017-07 COMBIVERT R6-N Page2.3 - 3
2
10
2.3 Network components
2.3.1 Available hardware
TheKEBCOMBIVERTcanbeeasilyintegratedintodifferentnetworks.Forthatpurposetheinverteristtedwith
anoperatorthatisappropriatefortherespectivebussystem.Followinghardwarecomponentsareavailable:
– RS232-Cable PC/operator Part No.: 0058025-001D
for operation with interface operator
– HSP5-Adaptor PC/control board Part No.: 00F50C0-0001
for operation without operator; RS232 => TTL
– F5 Interface operator Part No.: 00F5060-2000
serial networks in RS232 or RS485 standard
– F5Probus-DPoperator   PartNo.: 00F5060-3000
– F5 InterBus operator Part No.: 00F5060-4000
– InterBus-Remote bus interface connection Part No.: 00B00BK-K001
(in connection with interface operator)
– F5 CanOpen operator Part No.: 00F5060-5000
- F5 sercos operator Part No.: 00F5060-6000

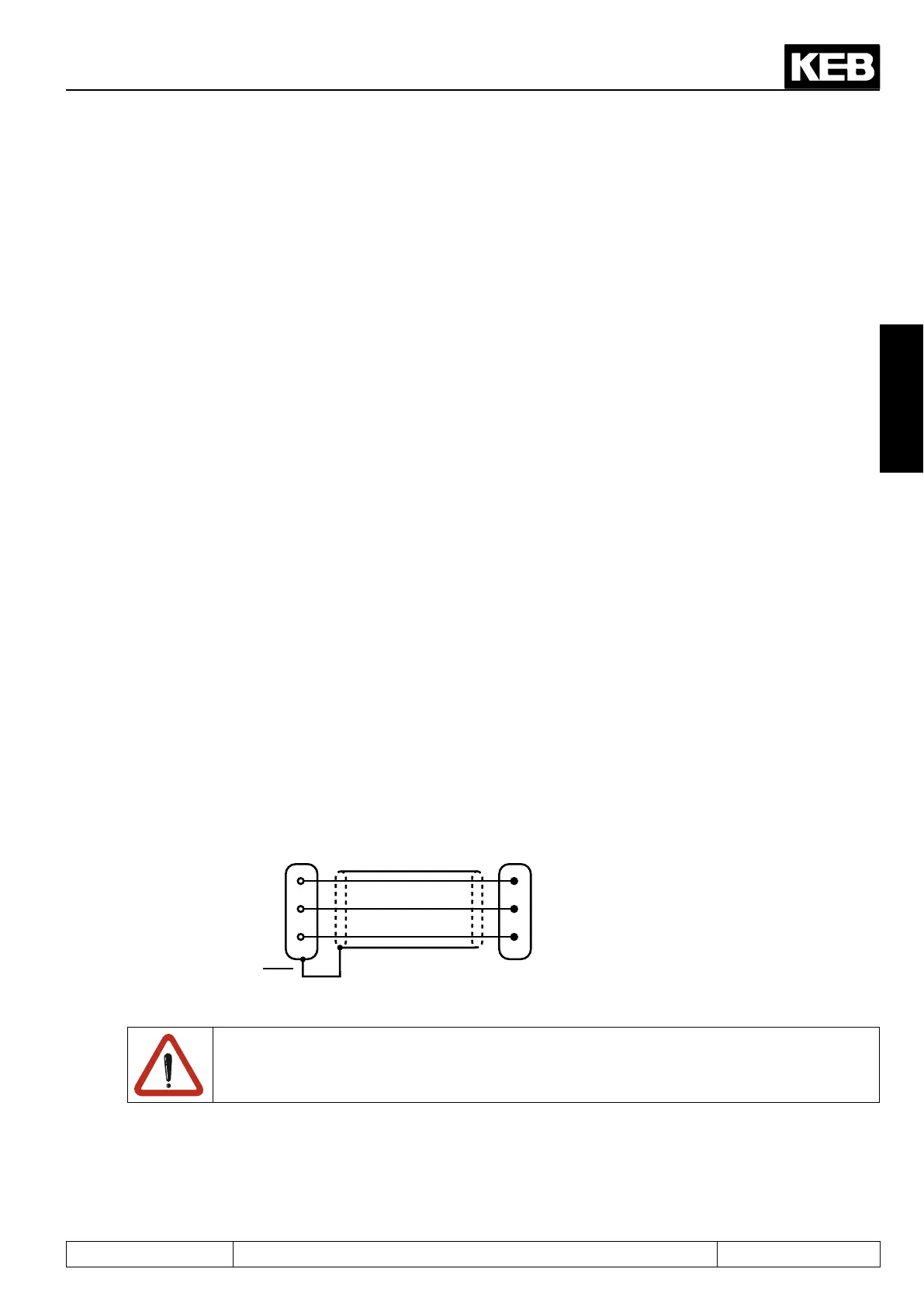

2.3.2 RS232-cable PC / operator 0058025-001D
The cable of 3m length is used for the direct RS232-connection between PC (9-pole SUB-D-connector) and
operator.
9-pol. SUB-D coupling 9-pol. 9-pole SUB-D connector
Housing (PE)
2
3
5
2
3
7
PC F5-Operator
The RS232 cable is suitable exclusively for the communication between PC and operator. If the
cable is plugged in directly onto the control board, it can lead to the destruction of the interface
of the PC.
