Analog output

Process variables that change only slowly e.g. the power module temperature, can be output via two virtual

analog outputs (ANOUT3 and 4). This is realized by generating a PWM signal (pulse width modulation) on a

digital output. The period T is adjustable with parameter An.46 or An.52 "ANOUT period" of 1 ...240 s.

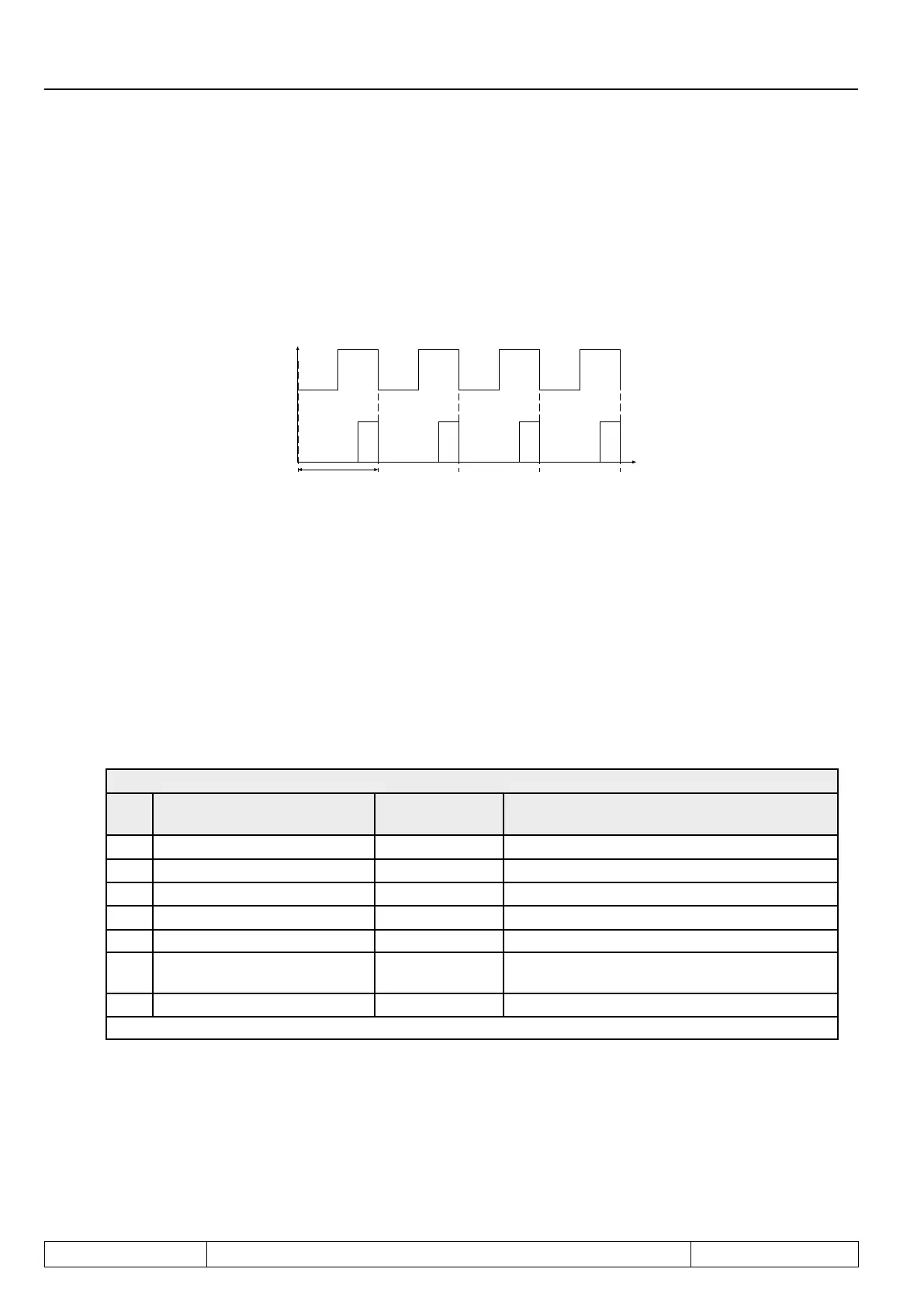

Fig. 7.2.2.a PWM output signal

ANOUT 3/4

T= An.46/52

Input value 50 %

Input value 25 %

3.3.3 Analog output / display (ru.33...34)

The following parameters are used to display the analog outputs, before and after thecharacteristicamplier:

ru.33 ANOUT1/preamplicationdisplay 0...±400 %

ru.34 ANOUT1 / post ampl. disp. 0...±115 %

3.3.4 ANOUT 1 function (An.31 / An.36 / An.41, An.47)

Theseparametersdenetheprocessvariable,whichcontrolstherespectiveoutput . Following adjustments are

possible:

An.31 / An.41 / An.47

Val-

Function Standard An.31 10 V ≙ 100 %

2 Actual line frequency (ru.03) X

100%

≙ 100 Hz

5 Reference DC voltage (ru.18)

100%

≙ 1000 V

6 DC current (ru.15)

100%

≙ 2x DC rated current (In.02)

7 AC current (ru.17)

100%

≙ 200 A supply rated current

8 Digital with An.32 / 42 / 48 0...100 %

Power module temperature

(ru.38)

100%

≙ 100 °C

26 Actual power (ru.81)

100%

≙ 2x Regeneration rated actual power

Not listed values are not assigned.

KEB COMBIVERT R6-N User Manual
