CP 503/A, CP 505/A,D,K, CP 507/
A,C
Mounting and installation instructions
Project engineering manual V1.06
27
© KEBA 2021

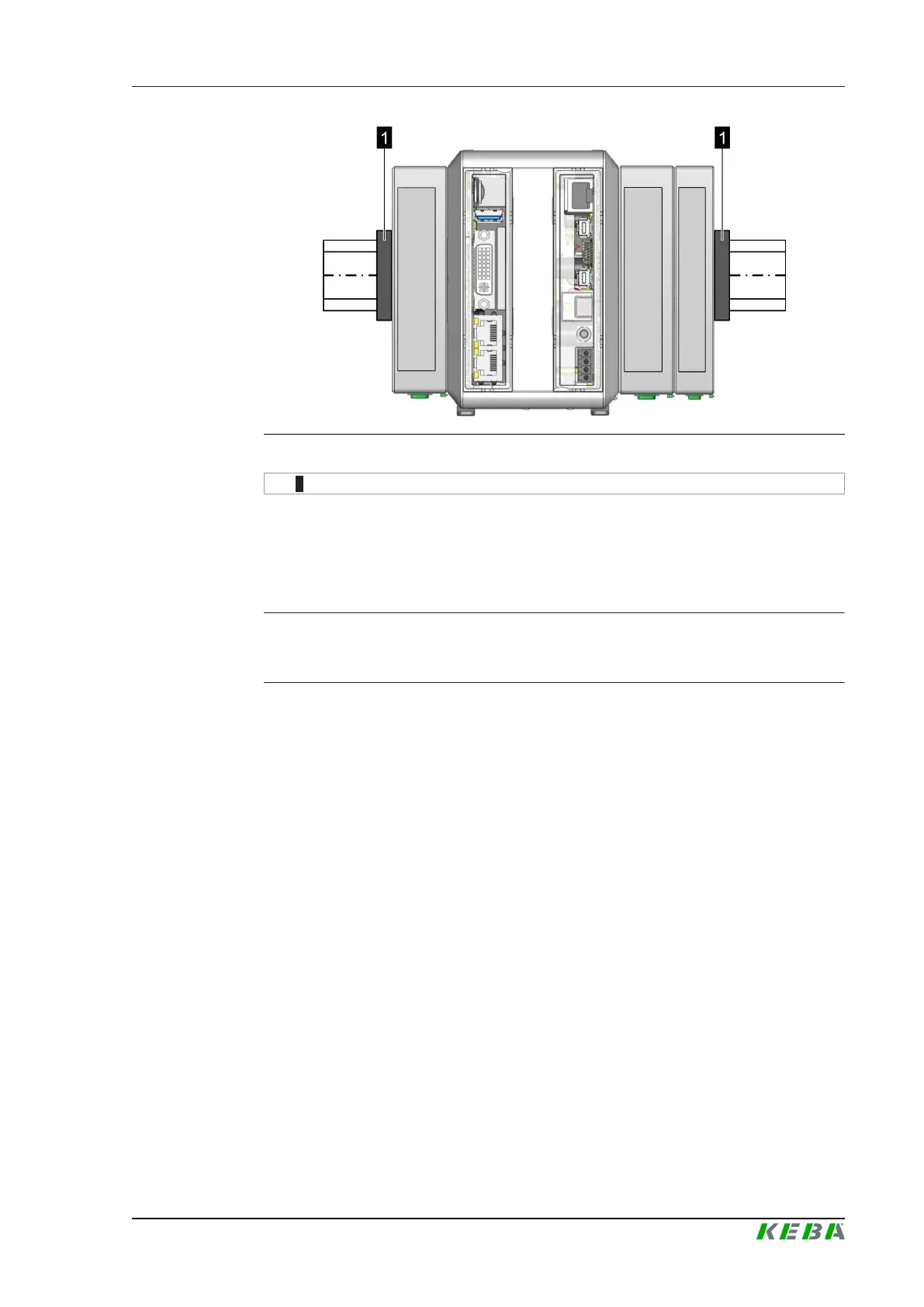

Fig.5-11: Mounting of the end bracket
1 ... End bracket
5.4 Space requirements
The module housing has ventilation slots for heat dissipation.
Caution
The ventilation slots must be kept free at all costs.
The cooling system and housing of the module are designed so that the
waste heat can escape from bottom to top. This allows the medium to flow
through the housing and cool it down. The heated air is discharged via the
upper side.
